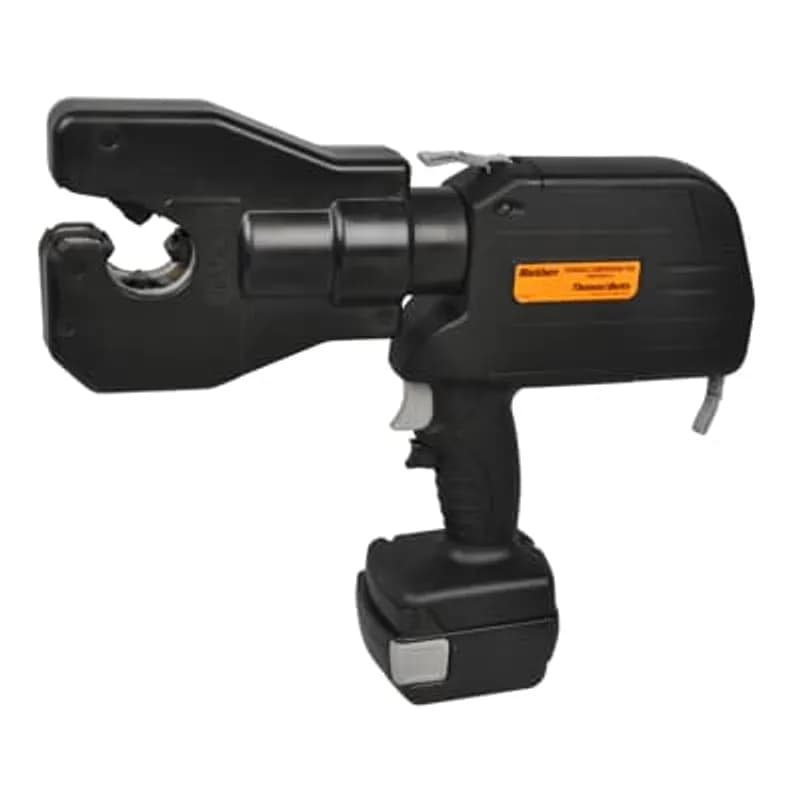

ABB Installation Products HMC5630-LI 6-Ton Lithium-Ion Battery Powered Dieless Open Crimp Tool for Crimping #8-500 kcmil…
UPC: 783786530489
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 6-ton crimping force for #8 to 500 kcmil Cu/Al connectors
- Lithium-ion battery-powered, cordless operation
- Dieless open crimp design for quick connector changes
- Compatible with copper and aluminum conductors
- Part of ABB Installation Products line
Specifications
Battery | Lithium Ion |
Series | HMC5630-LI |
Size | #8-500 kcmil |
Special Features | 14.4V lithium-ion battery offers lighter weight, longer run time, no memory effect, minimal discharge and rapid recharge |
Type | Battery Power Crimp Tool |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 26.9100 L |
Package Weight (Metric) | 12.2060 kg |
CT-3001/STINT
Introducing the Panduit BlackFin 3-in-1 in-line Lithium-ion Hydraulic Crimp Tool. Adapters and dies change out quickly and easily thanks to a 355-degree rotating flip-top crimp head. The crimp tool has a force of 6.7 tons and crimps Panduit copper lugs and splices for #8 AWG - 600 kcmil Code, #8 AWG -313 kcmil flex, 10mm2 - 240mm2 Class 2r and 10mm2 - 95mm2 Class 5f and 6f metric, #6 AWG - 350 kcmil aluminum lugs and splices. Copper CTAPF taps up to 4/0 AWG copper CTAP taps up to #2 AWG. Includes CD-3001/ST-DA die adapter for CD-2001 dies, two 3.0 Ah 18V batteries, 230 V battery charger with Interational Type C plug and plastic carrying case. For use with Panduit CD-2001, KC22 and KA22 dies sold separately.
T3100000032-002
Commercial Crimp Tooling, Not Releasable, Not Adjustable, Removable/Interchangeable, DIN, Battery, Die Sets, Hand Crimping Tools
BAT22-6NV2
Battery-Powered Crimping Tool, Intended to Crimp Some Types of Terminals, Splices, Wire Joints and Dragon Tooth, 22AWG Through 6AWG Wires Using Appropriate DIES (Sold Separately)
144-ADP-LI
Adapter for Lithium-Ion Battery to Convert TBM Series Battery Tools. For use with Battery 144-BAT-LI and TBM14CR-LI or TBM15CR-LI only. 6.05 x 12.87 inch, Weight .4 pounds, 3.0 Ah, Output 14.4 VDC. Converts older TBM series battery tools with poke-in style battery to the new Li-ion battery platform, allowing for higher productivity as batteries are interchangeable across the Li-ion tools.
CT-2980/L
Dieless 6.2 ton crimping tool, 18V lithium-ion battery powered, 120 VAC charger, Jaw opening: 1.50" (38.1mm), Weight 11.75 lbs (8.3 kg) with battery, Length: 14.75" (374.7mm), Height: 15" (381mm), Width: 3" (76.2mm).CT-2940/L
Die type 15 ton crimping tool, 18V lithium-ion battery powered, 120 VAC charger, Jaw opening: 2" (50.8mm), Weight: 24.35 lbs. (11.0kg) with battery, Length: 22" (558.8mm), Height: 10.75" (273.1mm), Width: 3.75" (95.3mm).
CT-2930/L
Die type 14 ton crimping tool, 18V lithium-ion battery powered, 120 VAC charger, Jaw opening: 1.65" (41.9mm), Weight: 17.90 lbs. (8.1 kg) with battery, Length: 14.5" (368.3mm), Height: 16.5" (419.1mm), Width: 3.25" (82.6mm).CT-2940/LE
Die type 15 ton crimping tool, 18V lithium-ion battery powered, 230 VAC charger: 2" (50.8mm), Weight: 24.35 lbs. (11.0kg) with battery, Length: 22" (558.8mm), Height: 10.75" (273.1mm), Width: 3.75" (95.3mm).Frequently Asked Questions
Does the HMC5630-LI require dies for compression?
No, the HMC5630-LI compresses with 6 tons of force, eliminating the need for dies.
What is the maximum copper cable capacity?
The HMC5630-LI has a maximum capacity of 500 kcmil for copper cables.
What is the jaw opening size of the tool?
The HMC5630-LI has a jaw opening of 0.9 inches.
What is the input voltage for the battery charger?
The battery charger requires a 120V-240V AC input.
What are the dimensions of the HMC5630-LI?
The dimensions of the HMC5630-LI are 14 inches L x 2.5 inches W x 13 inches H.
What type of battery does the HMC5630-LI use?
The HMC5630-LI uses a 14.4V, 3.0 Ah Lithium-ion battery.
What is included in the HMC5630-LI tool kit?
The tool kit includes the compression tool, two battery cartridges, a battery charger, operation instructions, and a carrying case.
Can the HMC5630-LI be operated with one hand?
Yes, the HMC5630-LI is designed for one-handed operation to control ram advancement and retraction.
What is the weight of the HMC5630-LI?
The HMC5630-LI weighs 11.5 lbs with the battery installed.
What is the compression force of the HMC5630-LI?
The HMC5630-LI provides 6 tons of compression force.
How to Install and Operate the HMC5630-LI Battery Charger
Guide for setting up and using the HMC5630-LI battery charger to charge compatible battery packs.
Estimated time: 1h
Tools needed:
Screwdriver, Qualified electrician (if outlet needs modification)
Supplies needed:
HMC5630-LI Battery Charger, AC Power Cord, Thomas & Betts 144-BAT-LI battery pack
- Prepare the Power Outlet
Ensure you have a properly grounded three-prong outlet. If only a two-prong outlet is available, use a temporary adapter with a grounding pin, but have a qualified electrician install a proper outlet as soon as possible. WARNING: Ensure the outlet box is grounded before using an adapter. If unsure, have it checked by a qualified electrician.
- Connect the Power Cord
Connect the AC power cord to the HMC5630-LI battery charger and plug it into the prepared AC outlet. The indicator lamp should blink red, indicating stand-by mode. WARNING: Never alter an AC cord or its plug. An improper connection can cause electric shock. The charger must be grounded.
- Prepare the Battery
Ensure the battery pack is at room temperature (68°F -77°F or 20°C - 25°C). CAUTION: Do not charge a battery that has been stored below 32°F (0°C). Allow it to warm up to room temperature before charging.
- Insert the Battery
Insert the Thomas & Betts 144-BAT-LI battery pack into the HMC5630-LI charger. The charging system will begin, and the indicator lamp should turn solid green.
- Monitor Charging Status
Observe the indicator lamp for charging status: SOLID GREEN (charging), RAPID BLINKING GREEN (80% complete), SOLID ORANGE (100% complete). If the lamp lights red, the battery temperature is too high or low; remove and allow it to reach room temperature. If the lamp blinks red rapidly, the battery is defective and must be replaced.
- Verify Completion
Once the indicator lamp turns solid orange, the battery is fully charged. A charged battery can be stored in the charger indefinitely.
Frequently Asked Questions about ABB - Installation Products
How are Thomas and Betts products typically installed?
Thomas and Betts products are installed using a variety of methods tailored to specific applications, including the use of flexible cords and cable fittings, non-metallic cable glands, and armored cable fittings. Proper selection of fittings is crucial to match the cable type and installation environment, ensuring durability and preventing physical damage. Tools such as the Blackburn® Comfort Crimp® and HEX-FLEX® systems enhance installation efficiency and reliability, reducing labor time and ensuring secure connections.
What accessories are available for Thomas and Betts products?
Thomas and Betts offers a comprehensive range of accessories for their products, including various cord and cable fittings, non-metallic cable glands, service entrance cable fittings, and armored cable fittings. Their accessories are designed to enhance installation efficiency and ensure compatibility with different cable types and environmental conditions, providing reliable connections for a wide array of applications.
What environmental ratings do Thomas and Betts products have?
Thomas and Betts products feature robust environmental ratings, including NEMA Type 1, 2, 3, 4, 4X, 12, and 13 certifications, as well as IEC 60529 IP66 protection. These ratings ensure that their products are designed to withstand harsh industrial environments, with capabilities to resist dust, water, and corrosion, and operate effectively in a wide temperature range.
What communication protocols do Thomas and Betts products support?
Thomas and Betts products support a wide range of industrial communication protocols, including Ethernet, DeviceNet, PROFIBUS, Modbus, CANopen, and others. This extensive compatibility ensures seamless integration and reliable communication across various industrial automation systems, catering to diverse application needs.
What are the key features of Thomas and Betts products?
Thomas and Betts products are known for their innovative designs, high performance, and compliance with industry standards such as the National Electrical Code and Underwriters' Laboratories. They offer a comprehensive range of rugged and reliable electrical fittings, including liquidtight and dust-tight connections, which enhance installation efficiency and reduce overall project costs. Their products are engineered for durability in harsh environments, ensuring long-term reliability and lower installed costs.
What are the main product lines offered by Thomas and Betts?
Thomas and Betts offers a comprehensive range of product lines including electrical connectors, cable management systems, grounding and bonding solutions, and industrial automation components. Their products are designed for durability and reliability in demanding industrial environments, ensuring optimal performance and safety across various applications.
What technical support does Thomas and Betts offer?
Thomas and Betts offers comprehensive technical support, including access to field application engineers for onsite training and installation assistance. Their technical support staff is available to address inquiries related to product specifications and installation practices, ensuring optimal performance and safety of electrical systems. Additionally, they provide a variety of training programs to enhance the knowledge and skills of users in the field.
What industries and applications are Thomas and Betts products used for?
Thomas and Betts products are utilized across various industries including electrical construction, industrial automation, telecommunications, and utilities. Their extensive range of cord and cable fittings, electrical boxes, and metal framing systems are designed for applications that require durability and reliability in harsh environments, ensuring optimal performance in both permanent and temporary installations.
What certifications and standards do Thomas and Betts products comply with?
Thomas and Betts products comply with critical international certifications including UL (Underwriters Laboratories), CSA (Canadian Standards Association), and CE (European Community). Our products are designed to meet rigorous industrial standards such as NEMA enclosure ratings and IEC 60529 IP ratings, ensuring safety and reliability across various industrial applications.
