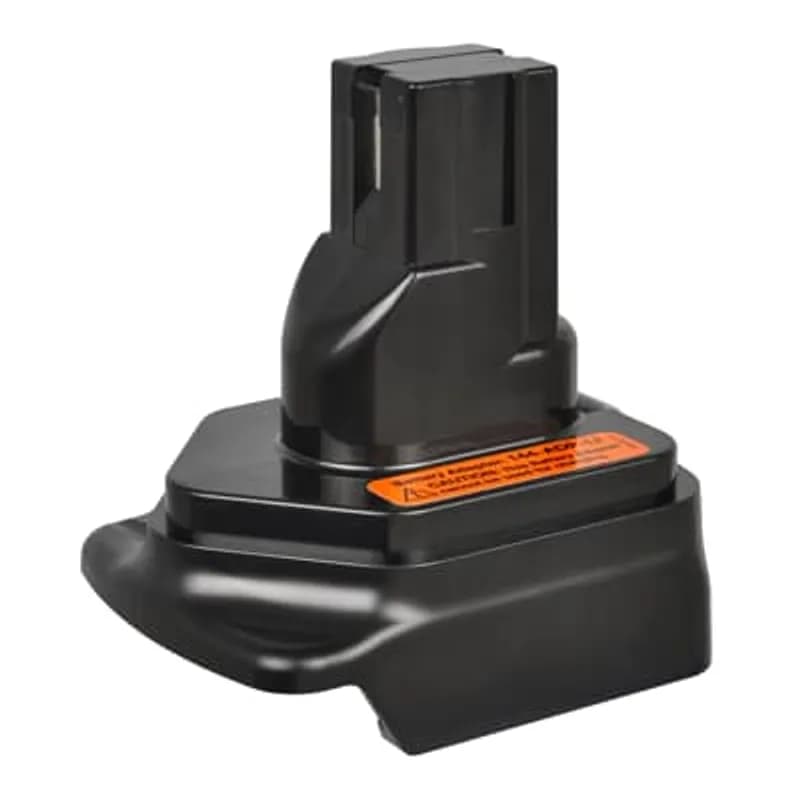

ABB Installation Products 144-ADP-LI Adapter for Lithium-Ion Battery to Convert TBM Series Battery Tools. For use with…
UPC: 783786529636
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Converts TBM14CR-LI and TBM15CR-LI tools to 14.4V Li-ion platform
- Interchangeable battery use across compatible tools eliminates redundant inventories
- Compact dimensions: 6.05 x 12.87 inches, 0.4 pounds
- 3.0 Ah capacity with 14.4 VDC output for consistent power delivery
- No additional wiring or modifications required for installation
Specifications
Battery | Lithium Ion |
Connection Type | Poke-in style battery |
Connection Type | Poke-in Style Battery Adapter |
Current Rating | 3.0 Ah |
Series | TBM Series Adapter |
Size | 6.05 x 12.87 inch, Weight: 0.4 pounds |
Size | 6.05 x 12.87 inch |
Special Features | 14.4V lithium-ion battery offers lighter weight, longer run time, no memory effect, minimal discharge and rapid recharge |
Type | Accessory |
Voltage Rating | 14.4 VDC |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.4100 L |
Package Weight (Metric) | 0.1860 kg |
TBM6UCR-LI
6-Ton Lithium-Ion Battery Powered Inline Open OD Crimp Tool for Crimping #8-300 kcmil Copper, #8-4/0 kcmil Aluminum Connectors. 22 x 3.5 x 4.5 inch. Weight 8.75 pounds with Battery. 14.4 VD, 3.0 Ah
CT-3001/STINT
Introducing the Panduit BlackFin 3-in-1 in-line Lithium-ion Hydraulic Crimp Tool. Adapters and dies change out quickly and easily thanks to a 355-degree rotating flip-top crimp head. The crimp tool has a force of 6.7 tons and crimps Panduit copper lugs and splices for #8 AWG - 600 kcmil Code, #8 AWG -313 kcmil flex, 10mm2 - 240mm2 Class 2r and 10mm2 - 95mm2 Class 5f and 6f metric, #6 AWG - 350 kcmil aluminum lugs and splices. Copper CTAPF taps up to 4/0 AWG copper CTAP taps up to #2 AWG. Includes CD-3001/ST-DA die adapter for CD-2001 dies, two 3.0 Ah 18V batteries, 230 V battery charger with Interational Type C plug and plastic carrying case. For use with Panduit CD-2001, KC22 and KA22 dies sold separately.
BAT22-6NV2
Battery-Powered Crimping Tool, Intended to Crimp Some Types of Terminals, Splices, Wire Joints and Dragon Tooth, 22AWG Through 6AWG Wires Using Appropriate DIES (Sold Separately)
CT-2980/L
Dieless 6.2 ton crimping tool, 18V lithium-ion battery powered, 120 VAC charger, Jaw opening: 1.50" (38.1mm), Weight 11.75 lbs (8.3 kg) with battery, Length: 14.75" (374.7mm), Height: 15" (381mm), Width: 3" (76.2mm).CT-2940/L
Die type 15 ton crimping tool, 18V lithium-ion battery powered, 120 VAC charger, Jaw opening: 2" (50.8mm), Weight: 24.35 lbs. (11.0kg) with battery, Length: 22" (558.8mm), Height: 10.75" (273.1mm), Width: 3.75" (95.3mm).
CT-2930/L
Die type 14 ton crimping tool, 18V lithium-ion battery powered, 120 VAC charger, Jaw opening: 1.65" (41.9mm), Weight: 17.90 lbs. (8.1 kg) with battery, Length: 14.5" (368.3mm), Height: 16.5" (419.1mm), Width: 3.25" (82.6mm).CT-2940/LE
Die type 15 ton crimping tool, 18V lithium-ion battery powered, 230 VAC charger: 2" (50.8mm), Weight: 24.35 lbs. (11.0kg) with battery, Length: 22" (558.8mm), Height: 10.75" (273.1mm), Width: 3.75" (95.3mm).
CT-2300/AUS
The Panduit BlackFin Battery Powered Micro-crimping Tool crimps 65 percent faster than a manual crimping tool thanks to an innovative trigger with power sensing technology. The lightweight, ergonomic design requires less hand force, reducing the risk of injury. The 4.7" (120mm) jaw with a force of 1.7 tons crimps a range of #22 10 AWG terminals, #26 10 AWG single wire ferrules, #22 12 AWG twin wire ferrules, and #14 10 AWG copper lugs. Includes battery powered micro-crimping tool, one 10.8 V, 1.5 Ah Li-ion battery, 230V battery charger with AUS Type I plug and molded carrying case. Crimp dies (Panduit CD-525, CD-550, CD-570 and CD-090) sold separately.Frequently Asked Questions
What is the output voltage of the adapter?
The adapter provides a 14.4 VDC output to power connected tools.
How much does the adapter weigh?
The adapter weighs 0.4 pounds.
What tools are compatible with the 144-ADP-LI adapter?
The adapter works with TBM14CR-LI and TBM15CR-LI battery tools only.
What battery does the adapter require?
The adapter requires ABB 144-BAT-LI Li-ion batteries for operation.
What are the dimensions of the adapter?
The adapter measures 6.05 inches by 12.87 inches in size.
Is the adapter battery capacity specified?
The adapter supports a 3.0 Ah battery capacity for power delivery.
Can older TBM tools use Li-ion batteries with this adapter?
Yes, the adapter converts poke-in style battery tools to the Li-ion platform.
