Contact for Pricing
Minimum Qty: 1000
Multiplier: 1000
*Contact for lower quantities*
Overview

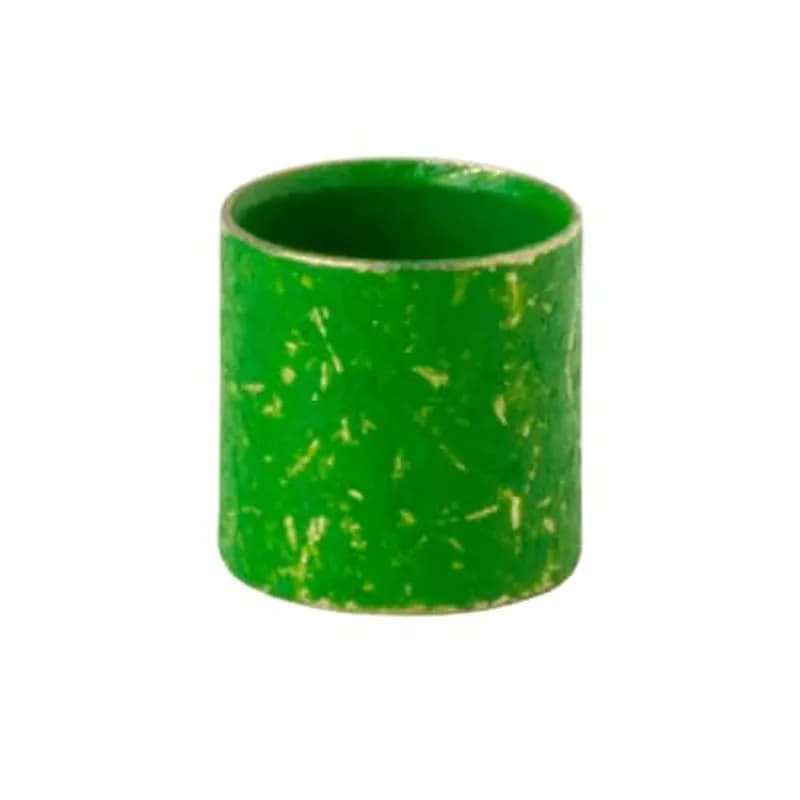

- Two-piece outer sleeve connector for hexagonal range
- Length: 1/4 Inch (6.4mm)
- Inner Diameter: .297 Inches (7.54mm)
- Outer Diameter: .335 Inches (8.50mm)
- Material: Soft Bronze, Nickel Plated; Color: Green
Specifications
Application | for Grounding, Terminating and Insulating Shielded and Coaxial Cable |
Color | Green |
Material | Soft Bronze |
Material | Soft Bronze, Nickel Plated |
Size | Length 1/4 Inch/6.4mm, Inner Diameter .297 Inches/7.54mm, Outer Diameter .335 Inches/8.50mm |
Type | Two-Piece Outer Sleeve Connector |
Package Dimensions (L x W x H) | 6 IN x 4.5 IN x 3 IN |
Package Dimensions (L x W x H) | 15.24 cm x 11.43 cm x 7.62 cm |
Package Weight (Imperial) | 0.0010 L |
Package Weight (Metric) | 0.0010 kg |
GSB250NP
Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .250 Inches/6.35mm, Outer Diameter .281 Inches/7.14mm, Color Green, Hard Bronze, Nickel Plated
ISE61
Pre-Insulated Service Entry Sleeves 8 Str - 6 Sol Pre-insulated service entry sleeves are used for fast and easy installation with standard tools. For combinations of aluminum-aluminum and aluminum-copper conductors. Meets the requirements of ANSI C119.4. Rated 600 Volts.
GSB287
Two Piece Inner Sleeve Connector for Hexagonal Range, Length 7.9mm, Inner Diameter 7.29mm, Outer Diameter 9.30mm, Color Silver, Hard Bronze, Tin Plated
MT433-30F18/0617
Module Assembly with Flap Cap and 2.62 Diameter Special Housing Gasket - Rating 32A, 3 Pole 4 Wire, 18K/65K1BM433-30F22
Interlocks with Single-Gang Cast Aluminum Enclosure - Screw Cap, Amps 32, Voltage Rating 380/440V 50/60Hz, Poles/Wires 3P4WFrequently Asked Questions
What is the material of GSC297NP?
The material for this product is commercial bronze per ASTM B36 (UNS C22000).
What is the color code for GSC297NP?
The color code associated with GSC297NP is Green.
What are the dimensions of GSC297NP?
The GSC297NP has an inner diameter (I.D.) of .297 in and an outer diameter (O.D.) of .335 in.
Which hand tool is recommended for GSC297NP?
The recommended hand tool for GSC297NP is WT414.
What dies are used with WT440 for GSC297NP?
The interchangeable dies used with the WT440 tool for GSC297NP are 4414.
What is the color code for GSC297NP?
The color code associated with GSC297NP is Green.
What dies are used with WT440 for GSC297NP?
The interchangeable dies used with the WT440 tool for GSC297NP are 4414.
Which hand tool is recommended for GSC297NP?
The recommended hand tool for GSC297NP is WT414.
What are the dimensions of GSC297NP?
The GSC297NP has an inner diameter (I.D.) of .297 in and an outer diameter (O.D.) of .335 in.
What is the material of GSC297NP?
The material for this product is commercial bronze per ASTM B36 (UNS C22000).
