UPC: 786210813790
Documents & Media
Contact for Pricing
Minimum Qty: 1000
Multiplier: 1000
*Contact for lower quantities*
Overview

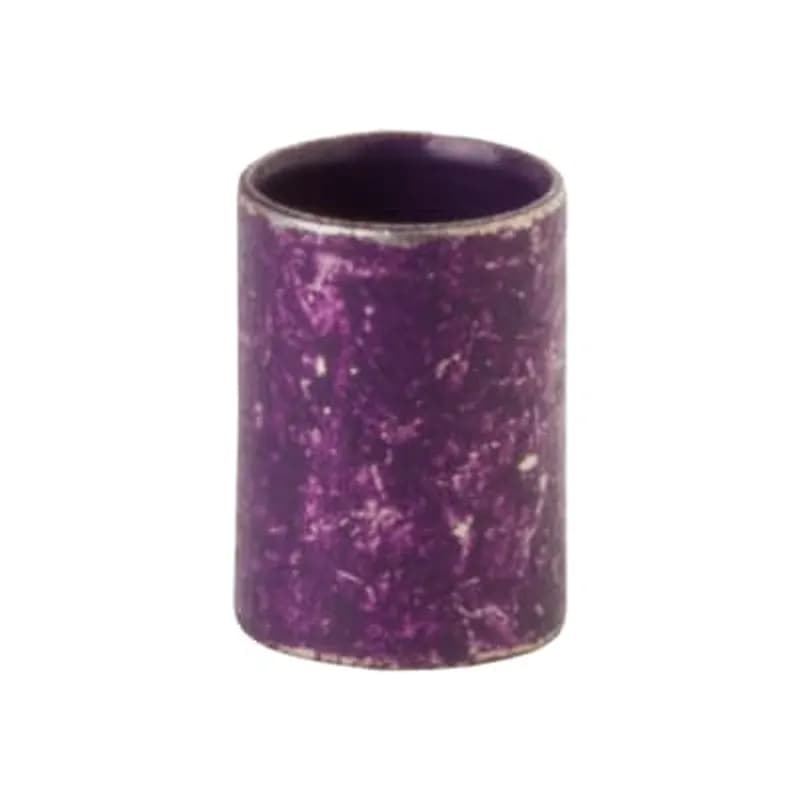

- Two-piece design for easy installation and inspection
- Soft bronze construction with tin plating for corrosion resistance and conductivity
- Compact 1/4" (6.4 mm) length with 0.149" (3.78 mm) inner diameter and 0.179" (4.54 mm) outer diameter
- Purple color coding for quick identification and inventory management
- Compatible with hexagonal range components for secure terminations
Specifications
Color | Purple |
Material | Soft Bronze |
Special Features | Shielded cable grounding system made of 2 cylindrical sleeves (inner sleeve + outer sleeve), for solderless crimp connection. Outer sleeve for the Hexagonal Range (the outer sleeve is crimped with a hand tool and the result is a hexagonal-shaped crimp), for grounding shielded and coaxial cables. The sleeves are color coded according to their size. Millions of installations in communications, aerospace, electronic, telephone, radio and TV applications |
Type | Two-Piece Outer Sleeve Connector |
Package Dimensions (L x W x H) | 3.3 IN x 2.8 IN x 2.3 IN |
Package Dimensions (L x W x H) | 8.382 cm x 7.112 cm x 5.842 cm |
Package Weight (Imperial) | 0.0010 L |
Package Weight (Metric) | 0.0010 kg |
GSB096
Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .096 Inches/2.44mm, Outer Diameter .119 Inches/3.02mm, Color Purple, Hard Bronze, Tin Plated
Frequently Asked Questions
How do I order a nickel-plated GSC149?
To order a nickel-plated GSC149, add the "NP" suffix to the catalog number.
What interchangeable dies are used with GSC149 and WT440?
For use with the WT440, the GSC149 requires interchangeable dies with catalog number 4401.
Which hand tool is compatible with GSC149?
The GSC149 connector is compatible with the WT401 hand tool.
What is the maximum temperature for tin plated GSC149 parts?
Tin plated parts, including GSC149, should not be exposed to temperatures above 150 C.
What is the color code for GSC149?
The color code for the GSC149 connector is purple.
What is the finish of the GSC149 product?
The GSC149 has an electro tin plate finish per MIL-T-10727A Type1, equivalent to ASTM B545 Class A.
What material is GSC149 made from?
The GSC149 is made from commercial bronze per ASTM B36 (UNS C22000).
What is the maximum temperature for tin plated GSC149 parts?
Tin plated parts, including GSC149, should not be exposed to temperatures above 150 C.
What interchangeable dies are used with GSC149 and WT440?
For use with the WT440, the GSC149 requires interchangeable dies with catalog number 4401.
How do I order a nickel-plated GSC149?
To order a nickel-plated GSC149, add the "NP" suffix to the catalog number.
