UPC: 786210813240
Documents & Media
Contact for Pricing
Minimum Qty: 1000
Multiplier: 1000
*Contact for lower quantities*
Overview

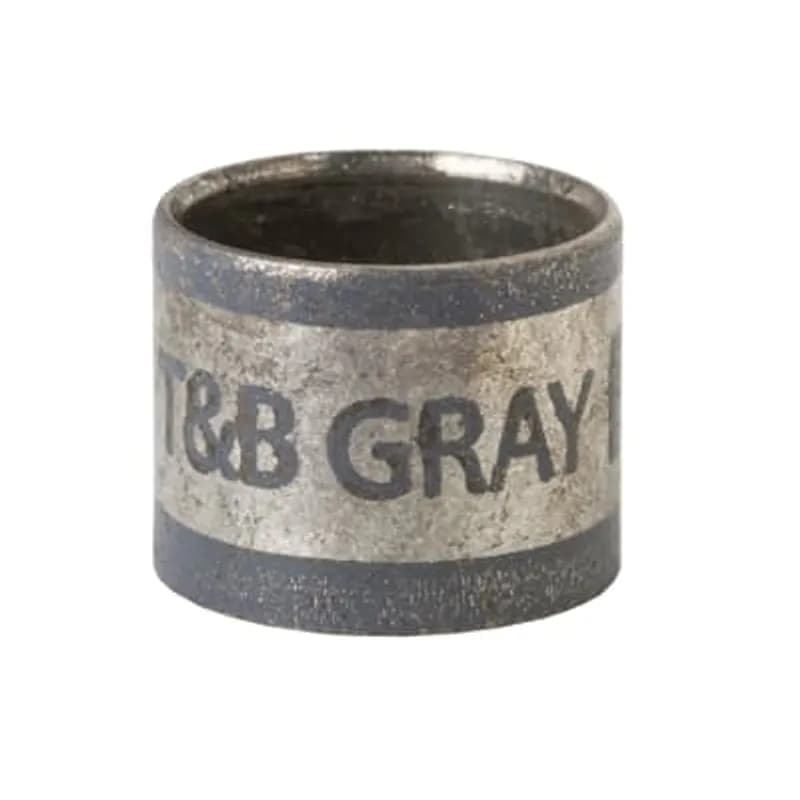

- Two-piece inner sleeve connector design
- Constructed from hard bronze for durability
- Tin plated for enhanced conductivity and corrosion resistance
- Precise dimensions: 7.9mm Length, 7.29mm Inner Diameter, 9.30mm Outer Diameter
- Designed for hexagonal range applications
Specifications
Color | Gray |
Material | Hard Bronze |
Special Features | Shielded cable grounding system made of 2 cylindrical sleeves (inner sleeve + outer sleeve), for solderless crimp connection. Inner sleeve for the Hexagonal Range (the corresponding outer sleeve is crimped with a hand tool and the result is a hexagonal-shaped crimp), for grounding shielded and coaxial cables. The sleeves are color coded according to their size. Millions of installations in communications, aerospace, electronic, telephone, radio and TV applications |
Type | Two-Piece Inner Sleeve Connector |
Package Dimensions (L x W x H) | 4 IN x 4 IN x 3 IN |
Package Dimensions (L x W x H) | 10.16 cm x 10.16 cm x 7.62 cm |
Package Weight (Imperial) | 0.0010 L |
Package Weight (Metric) | 0.0010 kg |
GSB080NP
Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .080 Inches/2.00mm, Outer Diameter .103 Inches/2.63mm, Color Blue, Hard Bronze, Nickel Plated
ISE147
Pre-Insulated Service Entry Sleeves 2/0 - 2/0 Str Pre-insulated service entry sleeves are used for fast and easy installation with standard tools. For combinations of aluminum-aluminum and aluminum-copper conductors. Meets the requirements of ANSI C119.4. Rated 600 Volts.
MT433-30F18/0617
Module Assembly with Flap Cap and 2.62 Diameter Special Housing Gasket - Rating 32A, 3 Pole 4 Wire, 18K/65K1BM433-30F22
Interlocks with Single-Gang Cast Aluminum Enclosure - Screw Cap, Amps 32, Voltage Rating 380/440V 50/60Hz, Poles/Wires 3P4WF35556
Linkage Kit - 1 Instruction Sheet, Riser, Spring, Steel Pin and Groove, Rod, Pin, Guide, 2 Steel Flat Washers, 2 Steel Pin and Grooves, 1 Pin, O-Ring, 2 Cotter Pins, and 1 SpacerFrequently Asked Questions
What is the color code for GSB287?
The color code for the GSB287 connector is Tin.
What is the outer diameter of GSB287?
The outer diameter (O.D.) of the GSB287 connector is .327 inches.
What is the inner diameter of GSB287?
The inner diameter (I.D.) of the GSB287 connector is .287 inches.
What is the maximum operating temperature for GSB287?
Tin plated parts, including GSB287, should not be exposed to temperatures above 150 C.
What is the finish of GSB287?
GSB287 has an electro tin plate finish per MIL-T-10727A Type 1, equivalent to ASTM B545 Class A.
What material is GSB287 made from?
GSB287 is made from commercial bronze per ASTM B36 (UNS C22000).
What type of product is GSB287?
GSB287 is an inner sleeve type of SHIELD-KON connector.
What material is GSB287 made from?
GSB287 is made from commercial bronze per ASTM B36 (UNS C22000).
What is the outer diameter of GSB287?
The outer diameter (O.D.) of the GSB287 connector is .327 inches.
What type of product is GSB287?
GSB287 is an inner sleeve type of SHIELD-KON connector.
