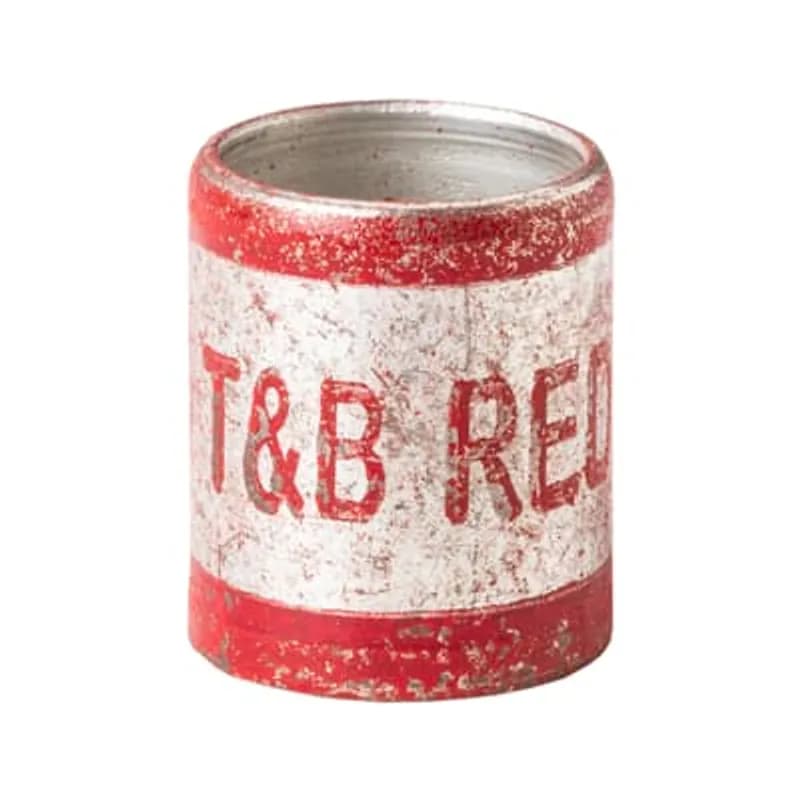

ABB - Installation Products GSB156 - Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .156 Inches/3.96mm, Outer Diameter .193 Inches/4.90mm, Color Red, Hard Bronze, Tin Plated

ABB Installation Products GSB156 Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner…

UPC: 786210813035


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 10000

Multiplier: 10000

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB GSB156 two-piece inner sleeve connector is a precision-engineered component designed for hexagonal cable ranges, providing reliable electrical and mechanical connections in industrial installations. This connector features a 5/16 inch (7.9mm) length, an inner diameter of .156 inches (3.96mm), and an outer diameter of .193 inches (4.90mm), ensuring compatibility with standard hexagonal cable sizes. Constructed from hard bronze and finished with a tin plating, the GSB156 offers excellent conductivity, corrosion resistance, and durability in demanding environments. Its compact design and red color coding simplify identification and installation in tight spaces or complex wiring systems. Ideal for use in control panels, junction boxes, and machinery wiring, this connector meets the UNSPSC code 39121432 for electrical connectors. The tin-plated finish enhances solderability and reduces oxidation, ensuring long-term performance in high-vibration or high-temperature applications. Suitable for both indoor and outdoor use, the GSB156 is a cost-effective solution for secure, low-resistance connections in industrial and commercial electrical systems.
  • Two-piece design for easy installation and secure connections
  • Hard bronze construction with tin plating for corrosion resistance
  • 5/16" (7.9mm) length, .156" (3.96mm) inner diameter, .193" (4.90mm) outer diameter
  • Red color coding for quick identification in wiring systems
  • Compatible with hexagonal cable ranges for industrial applications

Specifications

Color
Red
Material
Hard Bronze
Material
Hard Bronze, Tin Plated
Size
Length 5/16 Inch/7.9mm, Inner Diameter .156 Inches/3.96mm, Outer Diameter .193 Inches/4.90mm
Special Features
Shielded cable grounding system made of 2 cylindrical sleeves (inner sleeve + outer sleeve), for solderless crimp connection. Inner sleeve for the Hexagonal Range (the corresponding outer sleeve is crimped with a hand tool and the result is a hexagonal-shaped crimp), for grounding shielded and coaxial cables. The sleeves are color coded according to their size. Millions of installations in communications, aerospace, electronic, telephone, radio and TV applications
Type
Two-Piece Inner Sleeve Connector
Package Dimensions (L x W x H)
3.5 IN x 3 IN x 3 IN
Package Dimensions (L x W x H)
8.89 cm x 7.62 cm x 7.62 cm
Package Weight (Imperial)
0.0010 L
Package Weight (Metric)
0.0010 kg
Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .156 Inches/3.96mm, Outer Diameter .193 Inches/4.90mm, Color Red, Hard Bronze, Nickel Plated

GSB156NP

Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .156 Inches/3.96mm, Outer Diameter .193 Inches/4.90mm, Color Red, Hard Bronze, Nickel Plated
22-18 AWG Nylon Insulated Ring #8 Stud, 100 Per Pack

R22-8N

22-18 AWG Nylon Insulated Ring #8 Stud, 100 Per Pack
Ring Tongue Terminal 0.26 to 1.5 mm / M3.5-M5 - 22 to 16 AWG / MIL 6-10 - Red

1SET122001R0000

Ring Tongue Terminal 0.26 to 1.5 mm / M3.5-M5 - 22 to 16 AWG / MIL 6-10 - Red
Two Piece Inner Sleeve Connector for Hexagonal Range, Length 7.9mm, Inner Diameter 7.29mm, Outer Diameter 9.30mm, Color Silver, Hard Bronze, Tin Plated

GSB287

Two Piece Inner Sleeve Connector for Hexagonal Range, Length 7.9mm, Inner Diameter 7.29mm, Outer Diameter 9.30mm, Color Silver, Hard Bronze, Tin Plated
Non-Insulated Ring Terminal for Wire Range 12-10 Stud Size 3/8, Metallic

K10-38R-M

Non-Insulated Ring Terminal for Wire Range 12-10 Stud Size 3/8, Metallic
Non-Insulated Large Ring Terminal for Wire Range 6 AWG Stud Size 5/16, Metallic

K6-516R-D

Non-Insulated Large Ring Terminal for Wire Range 6 AWG Stud Size 5/16, Metallic
Nylon Ring Wire Range 16-14 Bolt Hole #8

KN14-8R-M

Nylon Ring Wire Range 16-14 Bolt Hole #8
Nylon Fully Insulated 250 Male Tab Wire Range 22-16 Bolt Hole n/a Red

KNF18-250MD-T

Nylon Fully Insulated 250 Male Tab Wire Range 22-16 Bolt Hole n/a Red
