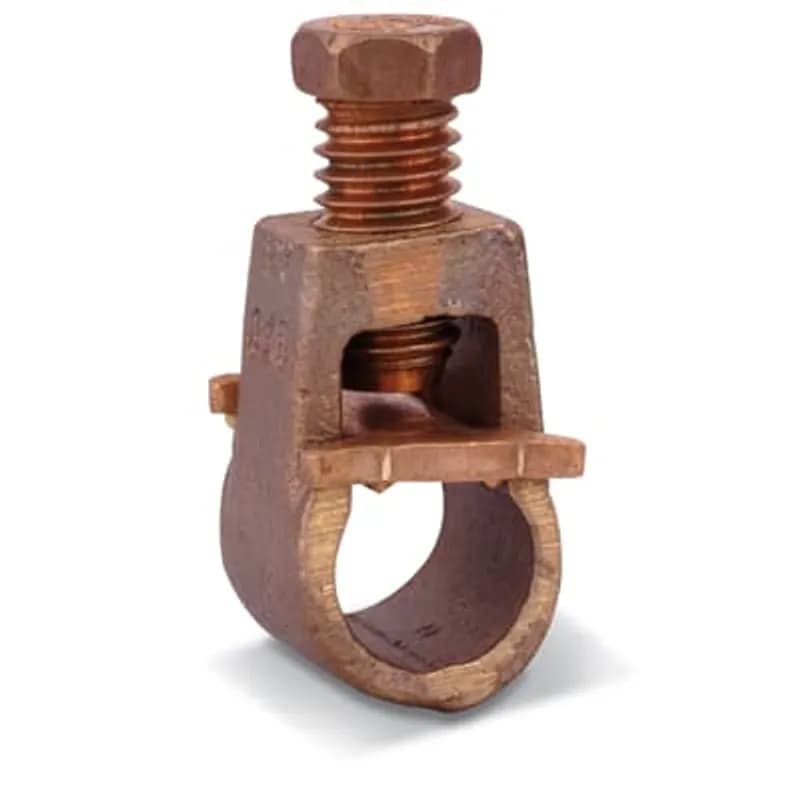

ABB - Installation Products GG34H - Heavy Duty Ground Rod Clamp, Copper Alloy Casting, Hex Head Bolt, Nominal Rod Size 3/4 (19.0mm), Wire Range 8 Sol - 4/0 Str (8.3-120.6mm2)
More images
ABB - Installation Products

GG34H

UPC: 783786126897

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 50

Multiplier: 50

*Contact for lower quantities*

Overview

The ABB GG34H Heavy Duty Ground Rod Clamp, SKU GG34H, is engineered for reliable grounding applications. Constructed from a durable copper alloy casting, this clamp ensures robust performance and longevity in demanding electrical installations. It is specifically designed to accommodate nominal ground rod sizes of 3/4 inch (19.0mm). The clamp features a hex head bolt for secure tightening, providing a strong mechanical connection. Its versatile wire range accommodates solid conductors from 8 AWG (8.3mm²) up to stranded conductors of 4/0 AWG (120.6mm²), making it suitable for a variety of grounding wire sizes. This heavy-duty clamp is an essential component for ensuring effective electrical system grounding, contributing to safety and operational integrity. Manufactured by ABB - Installation Products, the GG34H meets the requirements for secure and dependable ground connections in industrial and commercial settings. Its material composition and design facilitate excellent conductivity and resistance to environmental factors, ensuring a stable ground path over time. The hex head bolt allows for easy installation and maintenance with standard tools, simplifying the setup process for electricians and technicians. This clamp is a critical element in any grounding system designed to protect equipment and personnel from electrical faults and surges.
  • Heavy Duty Ground Rod Clamp
  • Copper Alloy Casting for Durability
  • Hex Head Bolt for Secure Tightening
  • Nominal Rod Size: 3/4" (19.0mm)
  • Wire Range: 8 Sol - 4/0 Str (8.3-120.6mm²)

Specifications

Conductor Material
Copper
Insulation
No
Material
Copper Alloy
Size
3/4 (19.0mm)
Special Features
Cast of high-strength corrosion-resistant copper alloy. Both hex head bolts and socket set screws available
Type
Ground Rod Clamp
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.7500 L
Package Weight (Metric)
0.3400 kg
