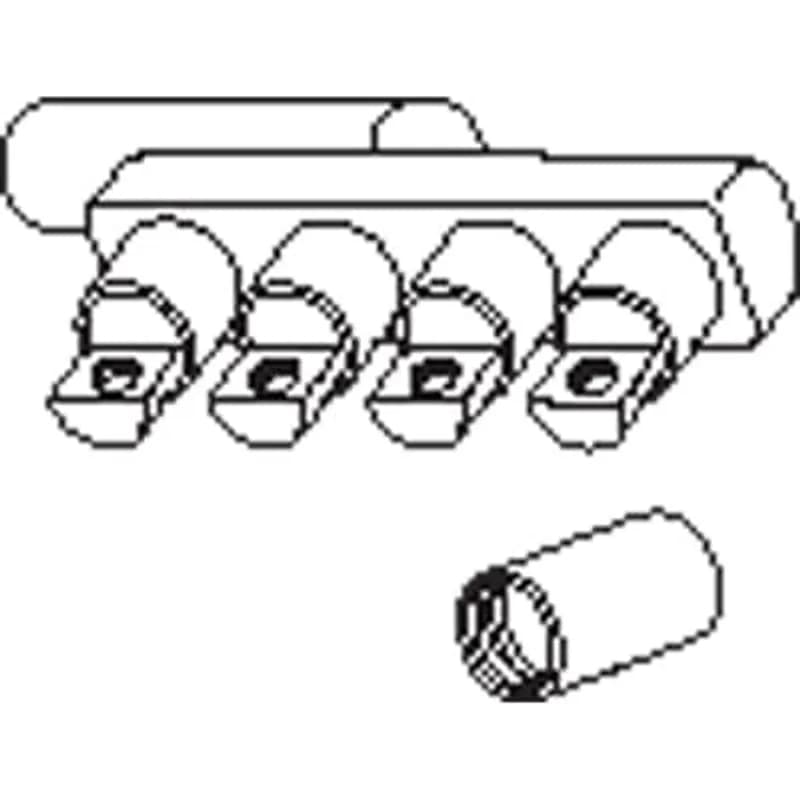

ABB - Installation Products FT 95-6 - Aluminum Flood-Seal 95 Series Screw-on Transformer Connectors, length 10 inch, stud size 5/8, outlets 6

ABB Installation Products FT 95-6 Aluminum Flood-Seal 95 Series Screw-on Transformer Connectors, length 10 inch, stud size…

UPC: 783786792986

Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB Aluminum Flood-Seal 95 Series Screw-on Transformer Connector (SKU: FT 95-6) is designed for reliable electrical connections in transformer applications. Constructed from durable aluminum, this connector features a Flood-Seal design to protect against environmental ingress. It measures 10 inches in length and is equipped with a 5/8 inch stud for secure mounting. The connector provides 6 outlets, allowing for multiple conductor terminations. This product is suitable for use in electrical distribution systems where robust and protected connections are essential. Its screw-on mechanism ensures a firm and secure attachment. The 95 Series offers a practical solution for managing transformer wiring. Key specifications include: * **Material:** Aluminum * **Series:** 95 Series Flood-Seal * **Type:** Screw-on Transformer Connector * **Length:** 10 inches * **Stud Size:** 5/8 inch * **Number of Outlets:** 6 This connector facilitates efficient and safe electrical distribution, ensuring the integrity of connections in demanding operational settings. ABB Installation Products is a recognized manufacturer in the electrical infrastructure sector.
  • Durable aluminum construction for longevity
  • Flood-Seal design for environmental protection
  • 10 inch length for versatile installation
  • 5/8 inch stud for secure mounting
  • 6 outlets for multiple conductor terminations

Specifications

Application
For Use with Aluminum or Copper Lugs up to 350 kcmil
Conductor Range
#8 to 350 kcmil
Connection
Mechanical
Insulation
PVC
Material
Aluminum Connector, PVC Insulated
Size
10 inch
Special Features
PVC Insulated Aluminum Body keeps our moisture while maintaining high Conductivity. Dual Rated for use with Aluminum or Copper Lugs from 8 to 350 kcmil
Standard
ANSI C119.4
Type
Stud-Mount Transformer Connector
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.8200 L
Package Weight (Metric)
0.8260 kg
