UPC: 786210233116
Contact for Pricing
Overview

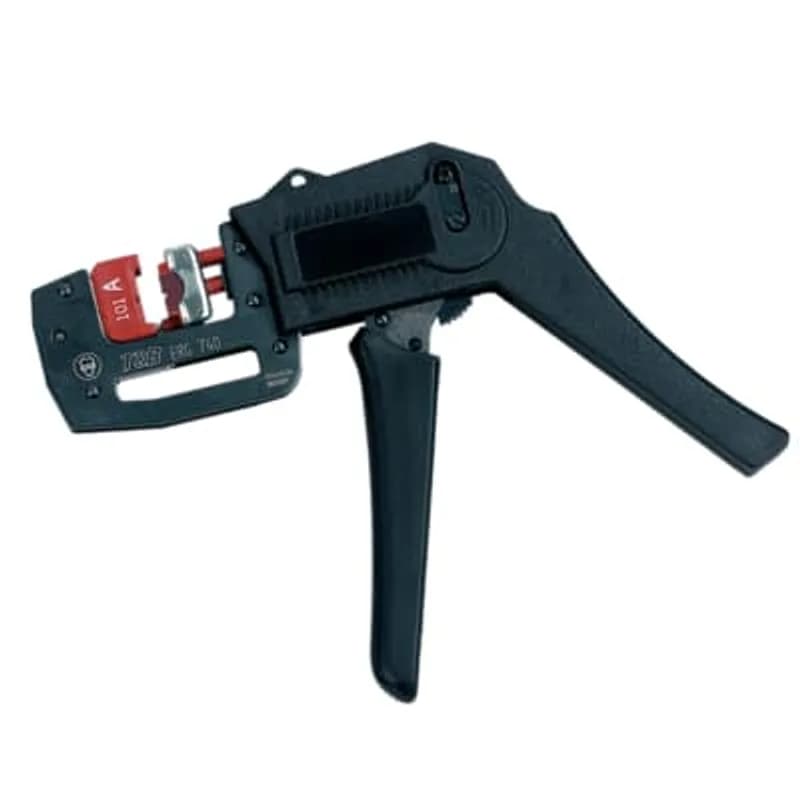

- One-piece RSK Connector design for simplified installation
- Durable metal construction for industrial applications
- Manufactured by ABB Installation Products
- SKU: ERG740
- Made in the USA
Specifications
Handle Type | Palm Grip |
Overall Length | 8.27 in |
Overall Length | 210.058 mm |
Special Features | Ergonomic hand tool with Shure-Stake mechanism |
Type | Manual Crimp Tool |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.9700 L |
Package Weight (Metric) | 0.4400 kg |

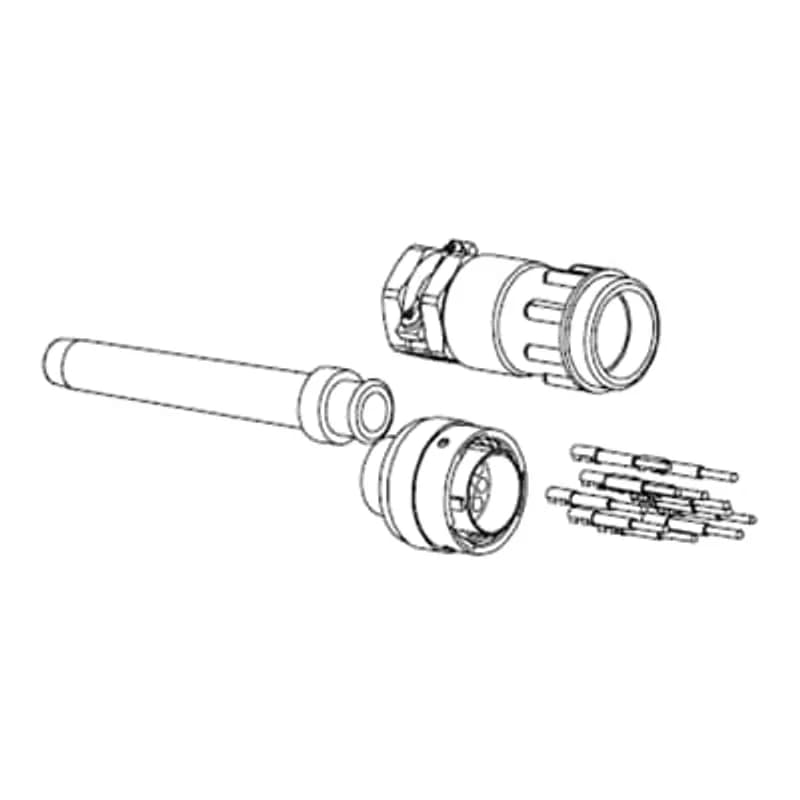

MCV-6MP-FW-CC
MCV, M23, Field Wireable, 6 Pole, Male Straight, Crimp, 20A, Crimp pins sold separately
225243-E
4 Position Circular Connector, Cable-to-Board, Sealable, Printed Circuit Board, Power, Signal & High Speed Data, Board Mount, A Code, M12 Connector
1625-5P1
The Molex 1625-5P1 is a high-performance industrial connector designed for demanding applications requiring robust and reliable electrical connections. Engineered with precision, this connector ensures optimal signal integrity and durability in harsh operating conditions. Its compact design and secure locking mechanism make it ideal for industrial automation, machinery, and control systems. With superior resistance to vibration, shock, and environmental factors, the 1625-5P1 delivers consistent performance in critical applications. Trust Molex for dependable connectivity solutions that meet the highest industry standards.
GSB175NP
Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .175 Inches/4.44mm, Outer Diameter .215 Inches/5.46mm, Color Green, Hard Bronze, Nickel PlatedFrequently Asked Questions
What is the total weight of the ERG740/02 kit with contents?
The total weight of the ERG740/02 plastic case and its contents is 6.38 lbs.
What are the dimensions of the ERG740/02 kit's plastic case?
The plastic case for the ERG740/02 kit has dimensions of 16.3 in x 13.6 in x 3.8 in.
What is included in the ERG740/02 Ergonomic Hand Tool Kit?
The ERG740/02 kit includes one tool, a benchmount stand, an OCB/OACV gauge, and four metal dies (D.202A, D.302B, D.402C, D.502D) in a plastic case.
What is the weight of the ERG740 ergonomic hand tool?
The weight of the ERG740 ergonomic hand tool is 2.08 lbs.
What are the dimensions of the ERG740 ergonomic hand tool?
The dimensions of the ERG740 hand tool are 13.6 in x 3.8 in x 1.3 in.
Can the ERG740 crimping tool be opened mid-cycle?
No, once pressing has commenced, the ERG740 tool can only be opened after the successful completion of the crimping cycle.
What applications is the ERG740 crimping tool suitable for?
The ERG740 crimping tool is designed for use with metal dies in low, medium, or high-voltage applications.
What are the dimensions of the ERG740 ergonomic hand tool?
The dimensions of the ERG740 hand tool are 13.6 in x 3.8 in x 1.3 in.
What is the weight of the ERG740 ergonomic hand tool?
The weight of the ERG740 ergonomic hand tool is 2.08 lbs.
What is the total weight of the ERG740/02 kit with contents?
The total weight of the ERG740/02 plastic case and its contents is 6.38 lbs.
How to Crimp RSK Series Wrap Around Connectors with the ERG740 Tool
This guide provides comprehensive instructions for preparing cables and ground wires, installing and gauging dies, and crimping RSK Series Wrap Around Connectors using the ERG740 ergonomic hand tool to ensure proper grounding of shielded cables.
Estimated time: 45m
Tools needed:
ERG740 Ergonomic Hand Tool, Calibrated measuring tool or RSK gauge, Calipers, Wire strippers
Supplies needed:
RSK Series Wrap Around Connectors, Die set (specific to connector), Shielded cable, Ground wire
- Read Safety Information and Select Components
Before operating, read and understand all safety information in the manual. Measure the diameter of the cable shield using a calibrated measuring tool or the RSK gauge. For twisted pair or non-symmetrical cables, measure the largest width. Refer to Table 1 to select the appropriate RSK connector and installing die based on your measurements.
- Install Dies into the ERG740 Tool
Open the ERG740 tool handles completely to fully retract the ram. Insert the stem of the upper die into the tool frame. Insert the separation spring of the lower die into the upper die opening, push up firmly, and then insert the lower die stem into the hole in the ram.
- Gauge the Installed Dies
Close the tool handles until the die faces are touching. Using calipers, measure the die nest height and compare it to the die gauging chart to ensure the die nest opening is within the specified tolerance range.
- Prepare the Shielded Cable
Carefully remove the cable jacket as required and prepare the shield according to the standard method illustration. If the inner conductor insulation is thin (vinyl <= 0.015 in or Teflon <= 0.010 in), or if the shield is foil/spiral wrapped, use foldback method 1 or 2 as illustrated. After folding back, re-measure the shield diameter and refer to Table 1 for proper die selection if necessary. CAUTION: Use extreme care to prevent nicking or cutting the shield or inner conductor insulation during stripping, as this could cause short circuits.
- Prepare the Ground Wire
For a single ground wire, strip 7/16 inch (11mm) and twist the strands together. For two ground wires, strip each wire 1/2 inch (12mm) and twist them together. If hairpinning is desired, strip 1/2 inch (12mm) and bend as shown, then use one die size larger for the connector. CAUTION: Do not solder dip the ground wire ends. Do not use solid ground wire.
- Install the Connector on the Shielded Cable
Insert the selected RSK connector, with the ground trap facing up, into the nest area of the die, ensuring it is centered. Place the prepared ground wire into the ground trap and the shielded cable into the bottom of the connector. Ensure the cable jacket and ground wire insulation butt against the metal connector edge. The ground wire can exit from either direction. CAUTION: Ensure neither the cable outer jacket nor the ground wire insulation is under the metal portion of the connector, as this will overload the dies. WARNING: Keep all body parts away from the die nest during the crimping procedure. WARNING: Handles are non-insulating; do not crimp on hot energized wires. Squeeze the tool handles completely to form the connector around the shield.
