Overview

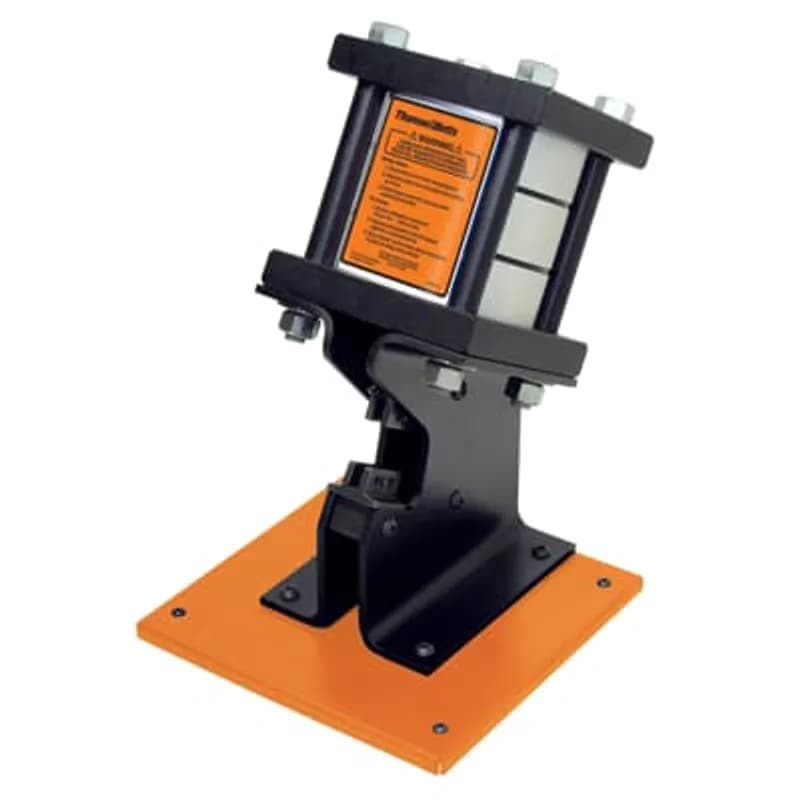

- Crimps non-insulated terminals A, B, C, D, E and insulated RA, RB, RC, RD, RE
- Handles wire ranges from #22 to #6 AWG for broad compatibility
- Pneumatic operation for high-speed, repeatable crimps with minimal effort
- Compatible with ABB’s full line of terminals and splices for UL/CSA/IEC compliance
- Durable construction reduces maintenance and extends tool life in industrial environments
Specifications
Application | Crimping Terminals/Splices/Disconnects |
Crimping Force | 1.8 tons |
Overall Length | 12 in |
Overall Length | 305 mm |
Special Features | Compact Pneumatic Bench Mount, Shure-Stake Mechanism, Color-coded Dies, Foot Pedal Operated |
Type | Pneumatic Power Crimp Tool |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 32.0000 L |
Package Weight (Metric) | 14.5150 kg |
NSI-12
12-Ton Compression Tool for U-Type Dies APPLICATIONS: Delivers 12 tons of hydraulic force. It has a 1 1/2" jaw opening for large conductors and taps with automatic two-speed pump action for rapid ram advancement. It features a 180 degree head rotation and fast ram release with the twist of the handle. It accepts all standard U-Type dies.
952050-E
Commercial Crimp Tooling, Removable/Interchangeable, Manual, Crimp Tool, ERNI MaxiBridge, Hand Crimping Tools
CT-720
Manual crimping tool for UL Listed or Recognized and CSA Certified terminations of Panduit copper compression lugs and splices for #8 AWG 500 kcmil copper code conductor and aluminum compression lugs and splices for #6 AWG 350 kcmil copper and aluminum code conductors. Provides UL Listed terminations of Panduit Pan-Term #8 2 AWG vinyl insulated terminals.Color-coded CD-720 crimping dies, carrying/storage case, and controlled cycle mechanism must be purchased separately.Specifications:Output: 6 tonsWeight: 7.7 lbs.Length: 26"Handle span: 58" (open), 2.5" (closed)
PAIR22-6
Pneumatic Power Tool for Crimping A, B, C, D, E Non-insulated and RA, RB, RC, RD, RE Insulated Terminals/Splices/Disconnects, Open "C" Yolk, Wire Range #22 - 6 AWG
Frequently Asked Questions
What terminal types does the BAIR22-6 support?
The BAIR22-6 supports non-insulated terminals A, B, C, D, E and insulated terminals RA, RB, RC, RD, RE.
What wire gauge range does this tool handle?
The tool is designed for wire ranges from #22 to #6 AWG.
Is the BAIR22-6 compatible with insulated terminals?
Yes, the BAIR22-6 crimps both non-insulated and insulated terminals RA through RE.
What standards does the BAIR22-6 comply with?
The tool is designed for compliance with UL, CSA, and IEC standards for electrical safety and performance.
How to Set Up and Install Dies for the BAIR22-6 Air-Powered Crimping Tool
This guide provides step-by-step instructions for setting up the BAIR22-6 air-powered crimping tool, including connecting the air supply, installing the crimping dies, and performing an optional calibration verification.
Estimated time: 30m
Tools needed:
Screwdriver, Vise (optional, for some dies), Gage pins (for calibration verification)
Supplies needed:
Crimping dies, Main air supply, SAE #10 paraffin base oil (optional, for lubrication)
- Unpack and Position the Tool
Remove the BAIR22-6 crimping tool and the filter/regulator/lubricator assembly from their shipping container. Position the crimping tool securely on a workbench or table, and place the foot switch on the floor in a convenient operating location.
- Connect the Air Supply
Connect the foot pedal air inlet line to the outlet of the filter/regulator/lubricator assembly. Then, connect your main air supply line to the inlet of the filter/regulator/lubricator assembly. Ensure all connections are secure and avoid adding airline extensions between the foot pedal and the filter/regulator/lubricator assembly to prevent line pressure drops. WARNING: Never exceed 100 PSI operating pressure for the tool.
- Install the Crimping Dies
First, disconnect the air supply from the tool for safety. Lift the spring-loaded upper die support to its maximum height and lock it in place by tightening the brass lock screw. Install the appropriate die nest into the lower support and the die indentor into the upper die support using the provided screws, hand-tightening them lightly. (NOTE: If your dies require dowel pins, remove the upper and lower die supports, place them in a vise, install the dies and dowel pins, then re-install the supports onto the tool). Loosen the brass lock screw to allow the upper die support to descend, ensuring the die indentor and nest engage and align. Securely tighten all screws to prevent any die movement. Reconnect the air supply to the tool. WARNING: Wear eye protection when operating or servicing this tool.
- Verify Calibration (Optional)
Ensure the tool is connected to the air supply. Cycle the tool until the dies bottom out. Using appropriate gage pins, verify that each die nest meets the specified gaging requirements as detailed in the corresponding gaging tables (e.g., TABLE 2, 3, 4, 5, or 6) for your specific dies. If the tool fails any test, do not attempt repair; contact a Thomas & Betts Tool Service Center. WARNING: Keep fingers clear of the die nest during the gaging procedure.
