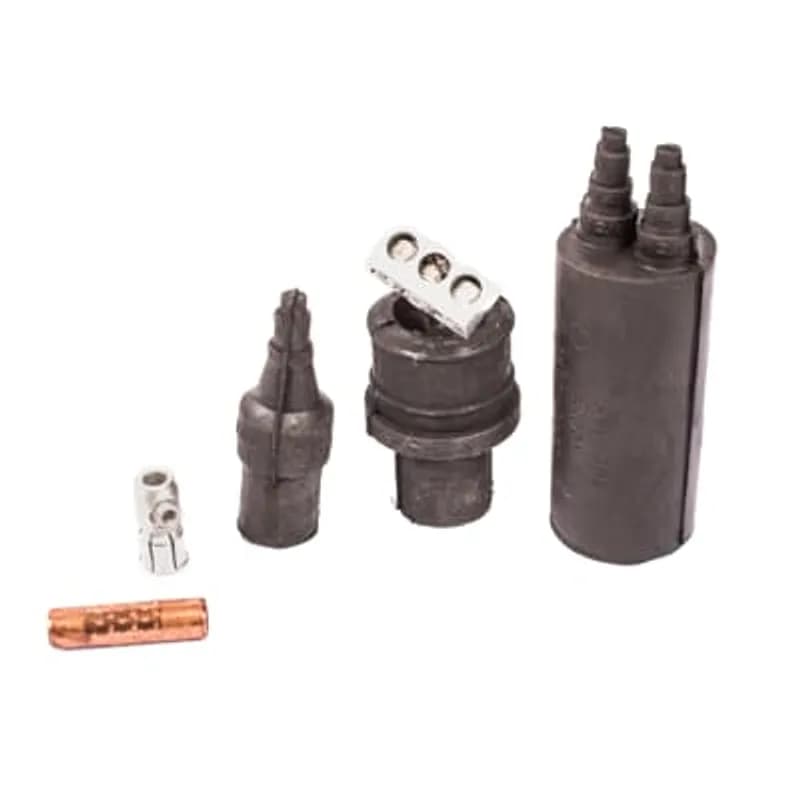

ABB - Installation Products DYU-M V1 - Flood Seal Y-Type Disconnect Kit, NonFused, 600 volt. Main Size #14-#2, Tap Size #12-#4. Kit includes EPDM Rubber Twin Tape Insulating Sleeve and Cap, (1) Copper Disconnect Link. 1-1/2 inch long x 13/32 inch Outside Diameter. Male Diamond Marked around Center. (1) Tin Plated Aluminum Mechanical Fuse Clip, 1-1/16 inch long x 29/64 inch. Has 5/16-23 x .210 inch Screw. (1) Fuse Holder Sub-Assembly (1) Wood Dowel, Silicone Grease, Instruction Sheet.

ABB Installation Products DYU-M V1 Flood Seal Y-Type Disconnect Kit, NonFused, 600 volt. Main Size #14-#2, Tap Size #12-#4.…

UPC: 783786717743


Documents & Media
Installation InstructionsManufacturer Product Website

Contact for Pricing

Minimum Qty: 60

Multiplier: 60

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB Installation Products DYU-M V1 Flood Seal Y-Type Disconnect Kit offers a reliable, non-fused solution for electrical connections up to 600 volts. Engineered for versatility, this kit accommodates main conductor sizes ranging from #14 AWG to #2 AWG, and tap conductor sizes from #12 AWG to #4 AWG. The kit includes essential components for a secure and insulated connection: an EPDM rubber twin tape insulating sleeve and cap, a copper disconnect link, and a tin-plated aluminum mechanical fuse clip. The copper disconnect link measures 1-1/2 inches long with a 13/32 inch outside diameter and features male diamond marking around its center. The tin-plated aluminum mechanical fuse clip is 1-1/16 inches long with a 29/64 inch diameter and is equipped with a 5/16-23 x .210 inch screw for secure fastening. Also included is a fuse holder sub-assembly, a wood dowel, silicone grease, and an instruction sheet, ensuring a complete installation package. The physical dimensions of the disconnect link are 1-1/2" L x 13/32" OD, and the fuse clip is 1-1/16" L x 29/64" OD. This kit is designed for applications requiring a safe and effective means of disconnecting electrical circuits within its specified voltage and conductor size ratings. SKU: DYU-M V1. UNSPSC Code: 39121421.
  • Non-fused Y-Type Disconnect Kit for 600V applications
  • Main conductor size range: #14 AWG to #2 AWG
  • Tap conductor size range: #12 AWG to #4 AWG
  • Includes EPDM rubber insulating sleeve and cap
  • Kit contains copper disconnect link and tin-plated aluminum fuse clip

Specifications

Amperage Rating
30 A
Application
Rated 600V, 30 Amps Maximum, perfect for heavy-duty applications
Color
Black
Conductor Range
Main #14 to #2 AWG , Tap #12 to #4 AWG
Connection
Mechanical
Environmental Conditions
WaterTight
Insulation
True
Material
Copper Connector, EPDM-Rubber Housing
Number of Conductors
3
Special Features
EPDM Flood-Seal Housing ensures a fully insulated, watertight, and submersible connection. Beakaway design separates under tension so wires don't break. Safe separations to ensure fuse or connecting link stays in load side when separated. Re-Enteralbe to enable sectionalizing. Matching Ampacit Rating - run or feeder lugs have the same ampacity rating as the cable, up to 2/0. Y-Ype Mechanical Run Compression Taps use a 1/8 nich Hex wrench for easy Installation
Type
Break-Away Streetlight Kits
Voltage Rating
600V
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.4300 L
Package Weight (Metric)
0.1950 kg
Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits - Y Line mechanical run Compression Kits, fused, conductor range main 14-2 tap 4-2

FYU 2

Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits - Y Line mechanical run Compression Kits, fused, conductor range main 14-2 tap 4-2
POWER TERMINAL TYPE 2 3 POLES 630 A

45020003

POWER TERMINAL TYPE 2 3 POLES 630 A
Solenoid Valve Connectors, Field Wireable, 3 Pole, Form A 18mm, 250V, 10A, PG11 opening, gray housing

VFN-021-00

Solenoid Valve Connectors, Field Wireable, 3 Pole, Form A 18mm, 250V, 10A, PG11 opening, gray housing
200 Amp, 35kV, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.850 inch to 1.050 inch. Bi-Metal Compression Lug, Conductor Size AWG Compressed Stranded #1/Solid 1/0 /mmSquared 42.41.

376LR-H-5230

200 Amp, 35kV, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.850 inch to 1.050 inch. Bi-Metal Compression Lug, Conductor Size AWG Compressed Stranded #1/Solid 1/0 /mmSquared 42.41.
200 Amp, 35kV, Loadbreak Elbow Connector without Test Point, Cable Insulation Diameter 1.180 inch to 1.465 inch. Copper Compression Lug, Conductor Size AWG Compressed Stranded 4/0 /Solid 250 /mmSquared 126.67.

375LR-L-2270

200 Amp, 35kV, Loadbreak Elbow Connector without Test Point, Cable Insulation Diameter 1.180 inch to 1.465 inch. Copper Compression Lug, Conductor Size AWG Compressed Stranded 4/0 /Solid 250 /mmSquared 126.67.
35kv, 200 Amp, Loadbreak, Elbow, with Sealing Kit, Cable Insulation Diameter 1.090-1.310 inches, Bi-Metal Lug, Conductor Size 2/0 Compressed/Stranded or 3/0 Compact/Solid.

375LR-K5250-SG3

35kv, 200 Amp, Loadbreak, Elbow, with Sealing Kit, Cable Insulation Diameter 1.090-1.310 inches, Bi-Metal Lug, Conductor Size 2/0 Compressed/Stranded or 3/0 Compact/Solid.
35kV 200 Amp, Loadbreak Elbow Connector without Test Point, Cable Insulation Diameter 1.090 inch to 1.310 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49.

375LR-K-5240

35kV 200 Amp, Loadbreak Elbow Connector without Test Point, Cable Insulation Diameter 1.090 inch to 1.310 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49.
200 Amp, 35kV, Loadbreak Elbow Connector without Test Point, with Sealing Kit. Cable Insulation Diameter 1.090 inch to 1.310 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49. 200ECS-G3 Jacket Seal and Grounding Kit Included.

375LR-K-5240-SG3

200 Amp, 35kV, Loadbreak Elbow Connector without Test Point, with Sealing Kit. Cable Insulation Diameter 1.090 inch to 1.310 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49. 200ECS-G3 Jacket Seal and Grounding Kit Included.

Frequently Asked Questions

What is the maximum operating voltage for this disconnect kit?

The ABB DYU-M V1 Flood Seal Y-Type Disconnect Kit is rated for 600 volts.

What are the conductor size ranges for this disconnect kit?

The kit accommodates main conductor sizes from #14 AWG to #2 AWG and tap conductor sizes from #12 AWG to #4 AWG.

What insulating materials are included in the kit?

The kit includes an EPDM rubber twin tape insulating sleeve and cap for secure insulation.

What type of disconnect link is provided?

The kit includes a copper disconnect link that is 1-1/2 inches long with a 13/32 inch outside diameter.

What are the dimensions of the fuse clip?

The tin-plated aluminum mechanical fuse clip is 1-1/16 inches long and has a 29/64 inch diameter.

How to Install the DYU-M Y-Type Street Lighting Kit

This guide provides step-by-step instructions for assembling and wiring the DYU-M Y-Type street lighting kit, including preparing cables, installing the fuse holder, and connecting housing components.

Estimated time: 1h

Tools needed:

1/8 inch hex wrench

Supplies needed:

Y-Type housing, Load side (plug) housing, Line end insert, Fuse holder, Connecting link (for DYU-M), Fuse (13/32 inch by 1 1/2 inch, 600V 30A max), Assembly dowel, Lubricant, Load side cable, Run connection cable

  1. Prepare Load Side Cable and Housing

    WARNING: Risk of shock, disconnect power before installation. This product must be installed by a qualified electrician in accordance with national and local electrical codes. Identify LINE and LOAD sides of wiring before beginning. Measure the load side cable diameter and refer to Table 1 to select the corresponding section on the load side (plug) housing. Cut off any remaining sections of the housing to match the selected size. Thoroughly clean approximately 8 inches along the load side cable end. Apply lubricant and insert the cable through the small hole in the load side (plug) housing, pushing it through a sufficient distance to permit 3/8 inch for stripping of insulation. Strip the insulation a distance of 3/8 inch.

  2. Install Cable into Fuse Holder and Assemble Housing

    Insert the prepared load side cable into the fuse holder. Using a 1/8 inch hex wrench, tighten the set screw securely to the cable with a minimum torque of 30 in/lbs. Apply lubricant lightly to the outside of the fuse holder. Place the assembly dowel into the fuse holder socket and position its free end against a firm surface. Push the load side (plug) housing forward until the fuse holder snaps into position. Wipe off any excess lubricant.

  3. Insert Fuse or Connecting Link and Prepare Run Cable

    Insert a 13/32 inch by 1 1/2 inch fuse (600 Volt 30 Amp max.) or the connecting link into the load side (plug) housing. WARNING: DO NOT use a glass body fuse. For the run connection, select and cut the correct cut-off ring on the Y-Type housing for the cable being used. Cut and bevel the cable insulation. Apply lubricant to the end of the run cable and the cut opening of the Y-Type housing. Slide the cable through until it extends 2 to 3 inches beyond the housing.

  4. Strip and Secure Run Connection Cables

    Strip the insulation of the run connection cable 3/8 inch to 1/2 inch. CAUTION: Do not over strip. Insert the run cables into the Y-Type housing as shown in the documentation diagrams. Using a 1/8 inch hex wrench, tighten the set screws to a minimum of 30 in/lbs.

  5. Assemble Line End Insert and Finalize Connection

    Apply lubricant to the line end insert as shown in the documentation. Slide the Y-Type housing up to the bottom of the line end insert. Push the line end insert into the opening of the Y-Type housing. While pulling on the cables and holding onto the Y-Type housing, slide the housing toward the insert. Push the insert until it is fully seated in the housing. Finally, lubricate the male and female components of the load side (plug) housing and the line end insert. Insert the load side (plug) housing, with the installed link or fuse, into the line end insert to complete the assembly.
