Contact for Pricing
Minimum Qty: 10
Multiplier: 10
*Contact for lower quantities*

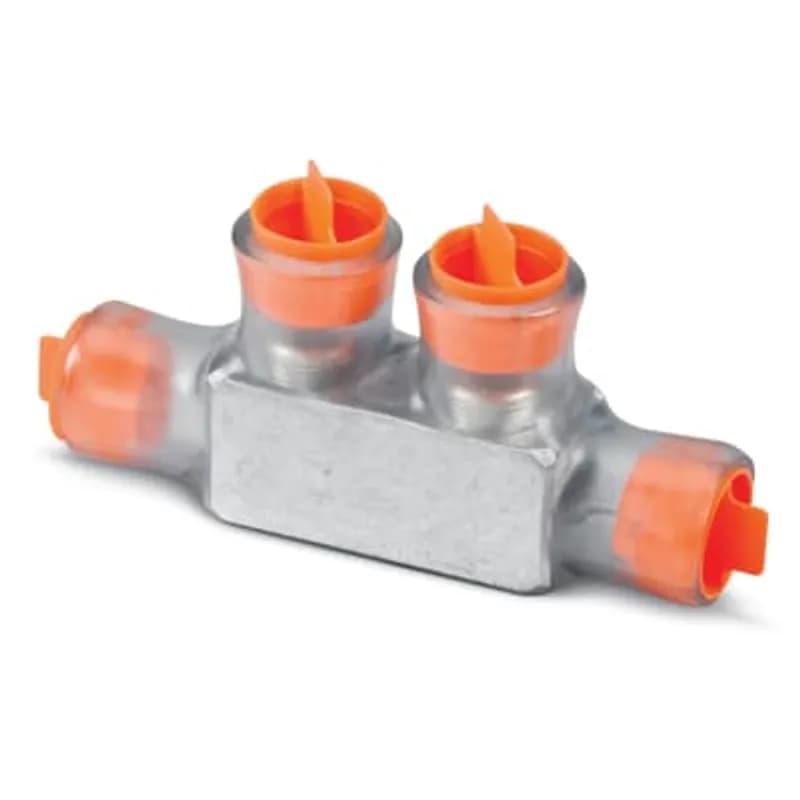

Overview
- Aluminum construction for durable, long-lasting splices
- PVC insulation (clear or black) eliminates need for taping
- Accommodates wire range: 350 kcmil to 6 AWG stranded
- Dimensions: 4.56" L x 1.37" W x 2.12" H
- Requires 5/16" hex size for secure installation
Specifications
Color | Clear |
Connection Type | Splice |
Connection Type | One-Way Configuration |
Material | Aluminum |
Poles | 2 |
Poles | 2 Outlets |
Series | CSR |
Size | 4.56 x 1.37 x 2.12 Inches |
Size | 4.56 Inches (Length) x 1.37 Inches (Width) x 2.12 Inches (Height) |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.3300 L |
Package Weight (Metric) | 0.1500 kg |
CSB 2/0-2-5R
Aluminum Multi-tap Encapsulated Cable Blocks - Two-Way Configuration, Wire Range 2/0-14, Screw Size 3/16 Hex, Length 1-5/8 Inches, Width 1-3/4 Inch, Height 1-3/8 Inch, Outlets 2, Quantity 5
AMT20
AMT Aluminum Multi-Tap Same Side Connector, 2-Port, PVC Insulated, Wire Range 2/0-14 Str, Length 1.61 Inches, Width 1.50 Inches, Height 1.59 Inches, Hex Size 3/16 Inch, Black Insulation
AMT250
AMT Aluminum Multi-Tap Same Side Connector, 2-Port, PVC Insulated, Wire Range 250 kcmil-10 Str, Length 2.12 Inches, Width 2.13 Inches, Height 2.13 Inches, Hex Size 5/16 Inch
AMT350
AMT Aluminum Multi-Tap Same Side Connector, 2-Port, Black PVC Insulated, Wire Range 350 kcmil-10 Str, Length 2.22 Inches, Width 2.37 Inches, Height 2.50 Inches, Hex Size 5/16 Inch
AMT500
AMT Aluminum Multi-Tap Same Side Connector, 2-Port, Black PVC Insulated, Wire Range 500 kcmil-6 Str, Length 2.71 Inches, Width 2.38 Inches, Height 2.75 Inches, Hex Size 3/8 Inch
AMTC4
AMT Aluminum Multi-Tap Same Side Connector, 2-Port, PVC Insulated, Wire Range 4-14 Str, Length 1.15 Inches, Width 1.13 Inches, Height 1.25 Inches, Slotted Screw
AMTD250103
AMT Aluminum Multi-Tap Both Sides Connector, 3-Port, PVC Insulated, Wire Range 250MCM-10 StrFrequently Asked Questions
What screw type do one-way CSR 350 cable blocks use?
One-way configuration CSR 350 cable blocks use a 5/16 Hex screw type.
What screw type do two-way CSR 350 cable blocks use?
Two-way configuration CSR 350 cable blocks use a 3/8 Hex screw type.
What is the wire range for CSR 350 cable blocks?
CSR 350 cable blocks (one-way and two-way configurations) are designed for stranded wires from 350 kcmil down to #10 AWG.
What screw type does the CSR 350 splice use?
The CSR 350 splice uses a 5/16 Hex screw type for secure connections.
What are the dimensions of the CSR 350 splice?
The CSR 350 splice (part no. AMTSR350) measures 4.56 inches in length, 0.81 inches in width, and 1.55 inches in height.
What is the wire range for CSR 350 splices?
The CSR 350 splice (part no. AMTSR350) accommodates stranded wires from 350 kcmil down to #6 AWG.
What screw type does the CSR 350 splice use?
The CSR 350 splice uses a 5/16 Hex screw type for secure connections.
What is the wire range for CSR 350 splices?
The CSR 350 splice (part no. AMTSR350) accommodates stranded wires from 350 kcmil down to #6 AWG.
What are the dimensions of the CSR 350 splice?
The CSR 350 splice (part no. AMTSR350) measures 4.56 inches in length, 0.81 inches in width, and 1.55 inches in height.
What is the wire range for CSR 350 cable blocks?
CSR 350 cable blocks (one-way and two-way configurations) are designed for stranded wires from 350 kcmil down to #10 AWG.
