ABB - Installation Products AMTD50063 - AMT Aluminum Multi-Tap Same Side Connector, 3-Port, PVC Insulated, Wire Range 500MCM-6 Str

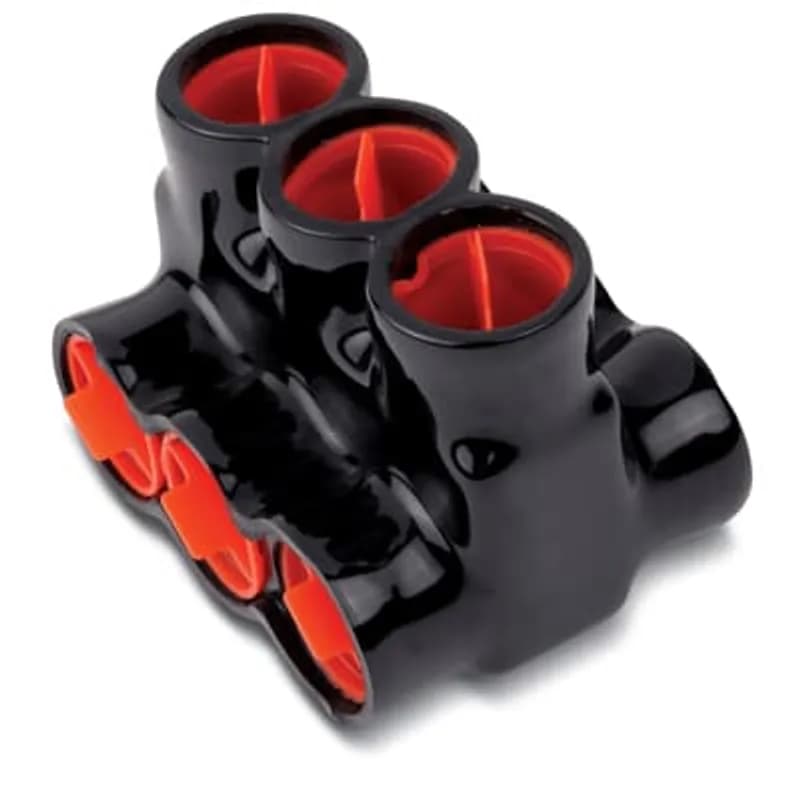

ABB Installation Products AMTD50063 AMT Aluminum Multi-Tap Same Side Connector, 3-Port, PVC Insulated, Wire Range 500MCM-6 Str

UPC: 783786259441

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB AMT Aluminum Multi-Tap Same Side Connector (SKU: AMTD50063) is a 3-port, PVC-insulated aluminum connector designed for parallel tapping of large aluminum conductors. It supports wire ranges from 500MCM to 6 AWG, making it suitable for medium to heavy-duty electrical distribution systems. The same-side design simplifies installation by allowing all connections to be made on one side of the connector, reducing labor time and improving workflow efficiency. The PVC insulation provides dielectric strength and environmental protection, ensuring reliable performance in indoor and outdoor applications. This connector is ideal for use in panelboards, switchgear, and junction boxes where space constraints or wiring configurations require parallel tapping. The aluminum construction ensures compatibility with aluminum conductors, reducing galvanic corrosion risks when used with compatible materials. The UNSPSC code 39121428 classifies this as a power distribution connector, confirming its role in electrical infrastructure.
  • 3-port design for parallel tapping of aluminum conductors
  • PVC insulation for dielectric strength and environmental protection
  • Supports wire range: 500MCM to 6 AWG
  • Same-side connection simplifies installation and reduces labor time
  • UNSPSC 39121428: Power distribution connector for electrical infrastructure

Specifications

Connection Type
Multi-Tap Connector
Material
Aluminum, PVC
Poles
3-port
Size
500MCM-6 Str
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
