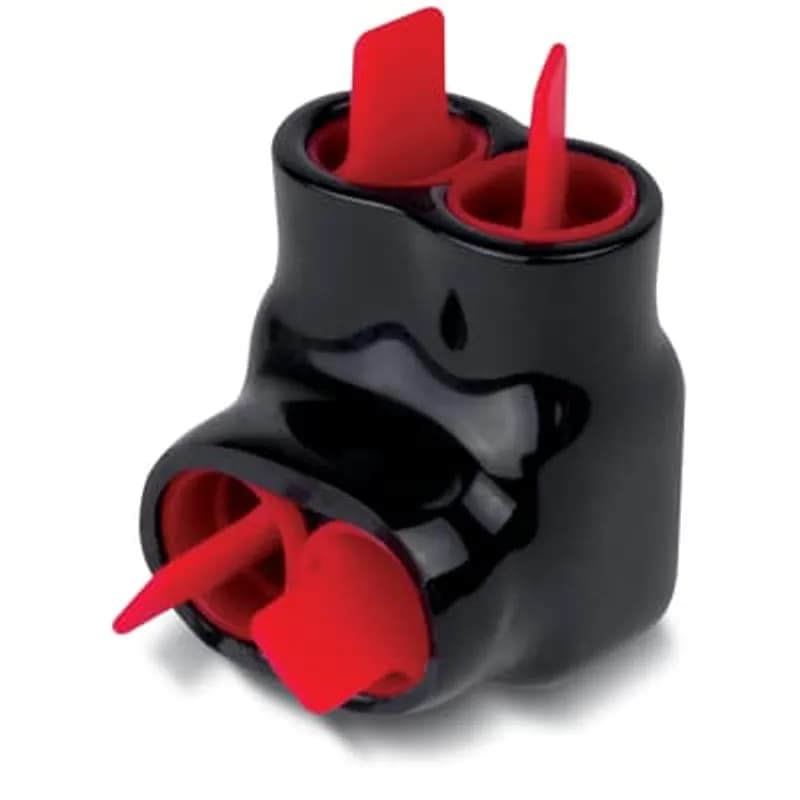

ABB - Installation Products AMTC4 - AMT Aluminum Multi-Tap Same Side Connector, 2-Port, PVC Insulated, Wire Range 4-14 Str, Length 1.15 Inches, Width 1.13 Inches, Height 1.25 Inches, Slotted Screw
ABB - Installation Products

AMTC4

UPC: 783786259175

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 25

Multiplier: 25

*Contact for lower quantities*

Overview

The ABB AMT Aluminum Multi-Tap Connector (SKU: AMTC4) is a 2-port, same-side connector designed for reliable electrical connections in various industrial applications. Constructed with durable PVC insulation, this connector ensures safety and longevity in demanding environments. Its compact dimensions, measuring 1.15 inches in length, 1.13 inches in width, and 1.25 inches in height, allow for efficient use of space in electrical enclosures and panels. The AMT connector is engineered to accommodate a wire range of 4 to 14 AWG stranded aluminum wire, providing flexibility for different conductor sizes. The connection is secured via a slotted screw, offering a straightforward and dependable termination method. This connector is part of ABB's Installation Products line, known for its quality and performance in electrical infrastructure. Key specifications include: * **Manufacturer:** ABB - Installation Products * **SKU:** AMTC4 * **Wire Range:** 4-14 AWG Stranded Aluminum * **Ports:** 2 * **Insulation Material:** PVC * **Connection Type:** Slotted Screw * **Dimensions:** 1.15" L x 1.13" W x 1.25" H This connector is suitable for applications requiring secure splicing or branching of aluminum conductors. Its design prioritizes ease of installation and a stable electrical connection, making it a practical choice for electricians and maintenance professionals. The PVC insulation provides electrical isolation and protection against environmental factors, contributing to the overall safety and reliability of the electrical system.
  • 2-Port, Same-Side Aluminum Multi-Tap Connector
  • PVC Insulated for Electrical Safety and Durability
  • Accommodates Wire Range: 4-14 AWG Stranded Aluminum
  • Secure Slotted Screw Connection Type
  • Compact Dimensions: 1.15" L x 1.13" W x 1.25" H

Specifications

Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.2500 L
Package Weight (Metric)
0.1130 kg
