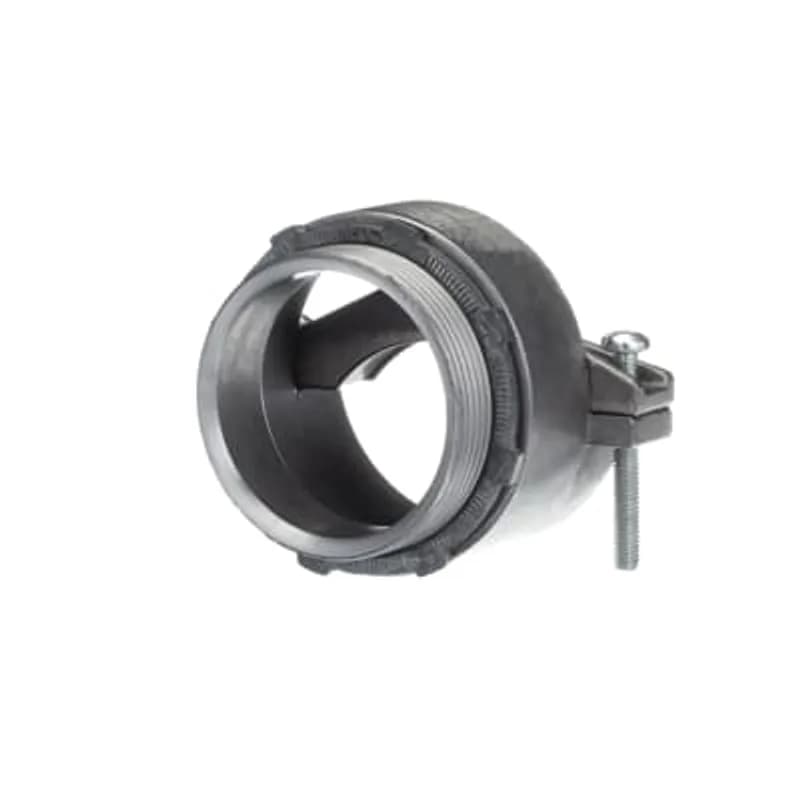

ABB - Installation Products CI2174 - Connector, Two Screw, Trade Size 3 Inches, Clamping Range 2.25 Inch - 3.57 Inch, Zinc Alloy, Suggested Application AC90 350/3-600/3, 4/0/4-300/4 and ACWU90: 1500/1, 500/2
More images
ABB - Installation Products

CI2174

UPC: 622538722744

Documents & Media
Manufacturer Product Website

Contact for Pricing

Overview

The ABB CI2174 is a robust two-screw connector designed for secure electrical connections in industrial applications. Manufactured by ABB Installation Products, this connector features a 3-inch trade size and a versatile clamping range of 2.25 inches to 3.57 inches, accommodating a variety of cable sizes. Constructed from durable zinc alloy, the CI2174 ensures reliable performance and longevity in demanding environments. Its suggested applications include AC90 cable types, specifically 350/3 through 600/3 and 4/0/4 through 300/4. It is also suitable for ACWU90 cable types, including 1500/1 and 500/2 configurations. The two-screw design provides a strong mechanical connection, essential for maintaining circuit integrity and preventing loosening due to vibration or thermal cycling. This connector is a critical component for ensuring safe and efficient power distribution in electrical systems. Its material composition offers good corrosion resistance, making it suitable for a range of industrial settings. The specific clamping range allows for flexibility when working with different cable diameters within the specified limits. Rely on the ABB CI2174 for dependable and secure cable termination in your electrical infrastructure projects.
  • Two-screw connector design for secure connections
  • 3-inch trade size for broad compatibility
  • Clamping range of 2.25" to 3.57" accommodates various cable sizes
  • Durable zinc alloy construction for longevity
  • Suitable for AC90 (350/3-600/3, 4/0/4-300/4) and ACWU90 (1500/1, 500/2) cables

Specifications

Application
For 350/3-600/3, 4/0/4-300/4 ACWU90: 1500/1, 500/2
Material
Aluminum
Size
3 Inches
Standard
3313
Type
Armoured Cable / Flexible Conduit
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.2600 L
Package Weight (Metric)
0.5720 kg
