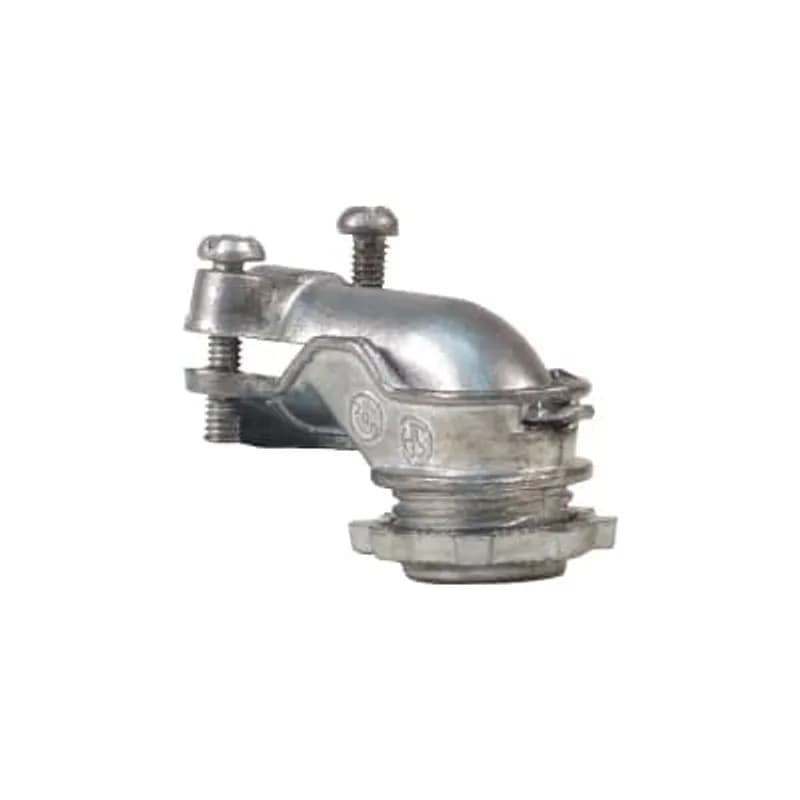

ABB - Installation Products CI2210 - Connector, 90 Degree, Trade Size 3/8 Inch, Clamping Range 0.40 Inch - 0.63 Inch, Zinc Alloy, Suggested application AC90 (BX) 14/2-10/2, 14/3-10/3, 14/4-12/4.
More images
ABB - Installation Products

CI2210

UPC: 622538723109

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 500

Multiplier: 500

*Contact for lower quantities*

Overview

The ABB CI2210 90° connector is a zinc-alloy cable termination designed for 3/8" trade size conductors with a clamping range of 0.40–0.63 inches. Engineered for BX cable applications, this connector supports AC90 (BX) wiring configurations including 14/2-10/2, 14/3-10/3, and 14/4-12/4 AWG cables, providing a reliable right-angle termination point in electrical installations. The zinc alloy construction ensures corrosion resistance and mechanical strength, suitable for industrial and commercial environments where durable, low-maintenance connections are required. With a 90-degree bend, the CI2210 facilitates clean cable routing and reduces stress on conductors, minimizing the risk of insulation damage during installation or operation. This connector is ideal for use in junction boxes, control panels, and machinery where space constraints demand compact, efficient cable management. Compatible with BX armored cable systems, the CI2210 simplifies termination workflows while maintaining compliance with NEC and UL standards for electrical safety. The UNSPSC code 39121311 classifies this as a cable termination accessory, underscoring its role in structured wiring solutions. Its design accommodates stranded and solid conductors within the specified AWG range, ensuring versatility across multiple cable types. The 90-degree orientation optimizes space utilization in tight installations, reducing the need for additional bends or fittings. Additionally, the zinc alloy material provides long-term durability against environmental factors such as moisture and vibration, which are common in industrial settings. The connector’s clamping mechanism securely fastens cables without damaging insulation, maintaining electrical integrity. It meets UL 486A-B standards for cable connectors, ensuring safe and reliable performance in BX armored cable applications. The CI2210’s compact form factor and right-angle design make it particularly well-suited for retrofitting existing systems or new installations where cable routing efficiency is critical.
  • 90-degree bend for efficient cable routing and stress reduction
  • Zinc alloy construction for corrosion resistance and durability
  • Trade size 3/8" with clamping range 0.40–0.63 inches
  • Compatible with AC90 (BX) cables: 14/2-10/2, 14/3-10/3, 14/4-12/4 AWG
  • UNSPSC 39121311: Cable termination accessory

Specifications

Application
AC90(BX) 14/2-10/2, 14/3-10/3, 14/4-12/4 - ACG90 (BX) 14/2-10/2, 14/3-10/3, 14/4-12/4
Material
Zinc alloy
Size
3/8 Inch
Standard
UL E1383 , CSA 12798
Type
Armoured Cable / Flexible Conduit
Package Dimensions (L x W x H)
7.5 IN x 4 IN x 4 IN
Package Dimensions (L x W x H)
19.05 cm x 10.16 cm x 10.16 cm
Package Weight (Imperial)
0.1000 L
Package Weight (Metric)
0.0450 kg
Male Terminal Adapter, Size 1 Inch, Length 1.902 Inches, Outer Diameter 1.580 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit

E943FRL

Male Terminal Adapter, Size 1 Inch, Length 1.902 Inches, Outer Diameter 1.580 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit
BELT, TIMING, 55 TEETH

014489-014

BELT, TIMING, 55 TEETH
Entrance Cap, Threaded, Aluminum, Size 2-1/2 Inch

1207

Entrance Cap, Threaded, Aluminum, Size 2-1/2 Inch
KIT GREASE FITTING WITH EXTENSION

GF 440/500 145MM

KIT GREASE FITTING WITH EXTENSION
One piece strut clamp with saddle designed to secure rigid/EMT conduit or cable perpendicular to strut. It is made of steel with a galvanized finish. The clamp fits 2-1/2 in EMT and 2-1/2 in RMC and has a static load rating of 350 lbs.

CCOP250

One piece strut clamp with saddle designed to secure rigid/EMT conduit or cable perpendicular to strut. It is made of steel with a galvanized finish. The clamp fits 2-1/2 in EMT and 2-1/2 in RMC and has a static load rating of 350 lbs.
Female MIXO Metal Pneumatic pin, Straight quick-fitting, with shut-off valve, For tubes with OD of 4mm

CX-4.0MPQV

Female MIXO Metal Pneumatic pin, Straight quick-fitting, with shut-off valve, For tubes with OD of 4mm
Connector, 90 Degree, Trade Size 1 Inch, Clamping Range 1.06 Inch - 1.40 Inch, Zinc Alloy, Suggested Application AC90 4/0/1-350/1, 2/2, 4/3-2/3, 6/4-4/4

CI2216

Connector, 90 Degree, Trade Size 1 Inch, Clamping Range 1.06 Inch - 1.40 Inch, Zinc Alloy, Suggested Application AC90 4/0/1-350/1, 2/2, 4/3-2/3, 6/4-4/4
Connector, 90 Degree, Trade Size 3/4 Inch, Clamping Range 0.77 Inch - 1.12 Inch, Zinc Alloy, Suggested Application AC90 1/0/1-4/0/1, 6/2-4/2, 8/3-3/3, 8/4-6/4

CI2214

Connector, 90 Degree, Trade Size 3/4 Inch, Clamping Range 0.77 Inch - 1.12 Inch, Zinc Alloy, Suggested Application AC90 1/0/1-4/0/1, 6/2-4/2, 8/3-3/3, 8/4-6/4

Frequently Asked Questions

What is the clamping range of the CI2210?

The connector clamps cables with diameters between 0.40 inch and 0.63 inch.

What is the trade size of the CI2210 connector?

The connector has a trade size of 3/8 inch.

What material is the CI2210 made from?

The connector is constructed from zinc alloy for durability and corrosion resistance.

What is the connection angle of the CI2210?

The CI2210 features a 90-degree connection angle for efficient cable routing.

What cable types is the CI2210 compatible with?

The CI2210 is designed for AC90 (BX) armored cables, supporting configurations 14/2-10/2, 14/3-10/3, and 14/4-12/4 AWG.
