ABB - Installation Products CI2214 - Connector, 90 Degree, Trade Size 3/4 Inch, Clamping Range 0.77 Inch - 1.12 Inch, Zinc Alloy, Suggested Application AC90 1/0/1-4/0/1, 6/2-4/2, 8/3-3/3, 8/4-6/4
More images
ABB - Installation Products

CI2214

UPC: 622538724144

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Overview

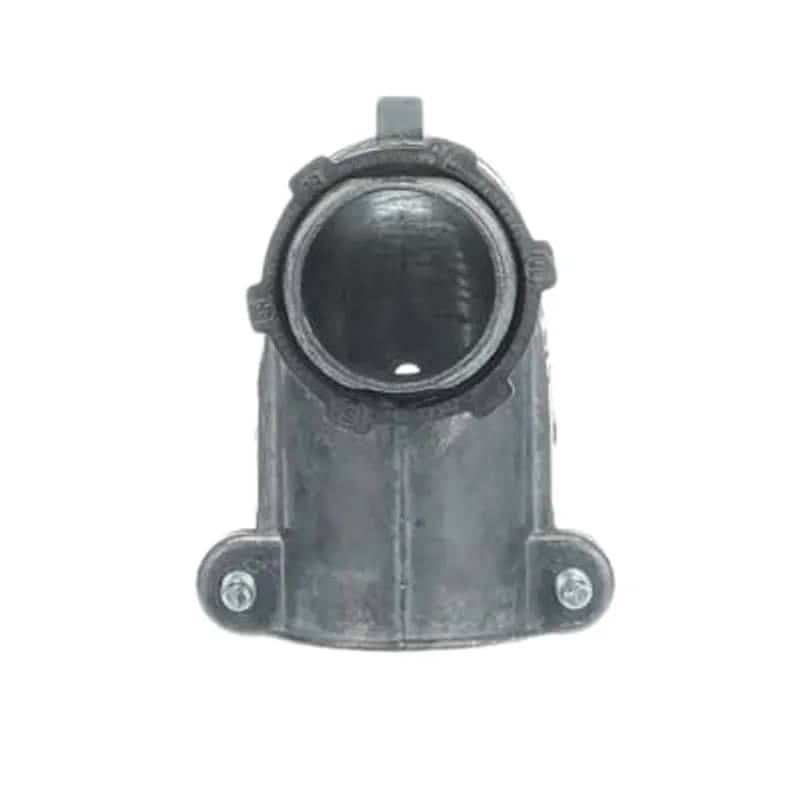

The ABB CI2214 is a 90-degree connector designed for secure and reliable cable management in industrial settings. Manufactured by ABB Installation Products, this connector features a robust zinc alloy construction, ensuring durability and resistance to environmental factors. Its trade size is 3/4 inch, and it accommodates a clamping range of 0.77 inches to 1.12 inches, providing a secure grip on various cable sizes. The CI2214 is specifically suggested for use with AC90 cable types, including configurations such as 1/0 through 4/0 AWG, 6/2 through 4/2 AWG, 8/3 through 3/3 AWG, and 8/4 through 6/4 AWG. This makes it a versatile component for electrical installations requiring a 90-degree transition. The UNSPSC code for this product is 39121311. Its precise design and material composition contribute to maintaining electrical integrity and preventing cable strain in demanding applications. Engineered for straightforward installation, the CI2214 simplifies the process of connecting and routing cables at a right angle, essential for efficient panel building and equipment wiring. The zinc alloy material offers a good balance of strength and corrosion resistance, suitable for many industrial environments. When selecting connectors, understanding the cable's AWG size and the required clamping diameter is crucial for ensuring a safe and effective connection.
  • 90 Degree Connector Design
  • Durable Zinc Alloy Construction
  • 3/4 Inch Trade Size
  • Clamping Range: 0.77" - 1.12"
  • Compatible with AC90 Cable Types (1/0-4/0, 6/2-4/2, 8/3-3/3, 8/4-6/4 AWG)

Specifications

Application
For 1/0/1-4/0/1, 6/2-4/2, 8/3-3/3
Material
Zinc alloy
Size
3/4 Inch
Size
Trade Size 3/4 Inch
Standard
3313
Type
Armoured Cable / Flexible Conduit
Package Dimensions (L x W x H)
6.1 IN x 5.3 IN x 3.6 IN
Package Dimensions (L x W x H)
15.494 cm x 13.462 cm x 9.144 cm
Package Weight (Imperial)
0.1600 L
Package Weight (Metric)
0.0730 kg
Male Terminal Adapter, Size 1 Inch, Length 1.902 Inches, Outer Diameter 1.580 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit

E943FRL

Male Terminal Adapter, Size 1 Inch, Length 1.902 Inches, Outer Diameter 1.580 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit
BELT, TIMING, 55 TEETH

014489-014

BELT, TIMING, 55 TEETH
Entrance Cap, Threaded, Aluminum, Size 2-1/2 Inch

1207

Entrance Cap, Threaded, Aluminum, Size 2-1/2 Inch
KIT GREASE FITTING WITH EXTENSION

GF 440/500 145MM

KIT GREASE FITTING WITH EXTENSION
One piece strut clamp with saddle designed to secure rigid/EMT conduit or cable perpendicular to strut. It is made of steel with a galvanized finish. The clamp fits 2-1/2 in EMT and 2-1/2 in RMC and has a static load rating of 350 lbs.

CCOP250

One piece strut clamp with saddle designed to secure rigid/EMT conduit or cable perpendicular to strut. It is made of steel with a galvanized finish. The clamp fits 2-1/2 in EMT and 2-1/2 in RMC and has a static load rating of 350 lbs.
Female MIXO Metal Pneumatic pin, Straight quick-fitting, with shut-off valve, For tubes with OD of 4mm

CX-4.0MPQV

Female MIXO Metal Pneumatic pin, Straight quick-fitting, with shut-off valve, For tubes with OD of 4mm
Connector, 90 Degree, Trade Size 2-1/2 Inches, Clamping Range 2.50 Inch - 3.08 Inch, Zinc, Suggested Application AC90 600/3-750/3

CI2238

Connector, 90 Degree, Trade Size 2-1/2 Inches, Clamping Range 2.50 Inch - 3.08 Inch, Zinc, Suggested Application AC90 600/3-750/3
Connector, 90 Degree, Trade Size 1-1/2 Inch, Clamping Range 1.70 Inch - 2.15 Inch, Zinc Alloy, Suggested Application 600/1-1000/1, 2/0/3, 1/4-3/0/4

CI2234

Connector, 90 Degree, Trade Size 1-1/2 Inch, Clamping Range 1.70 Inch - 2.15 Inch, Zinc Alloy, Suggested Application 600/1-1000/1, 2/0/3, 1/4-3/0/4
