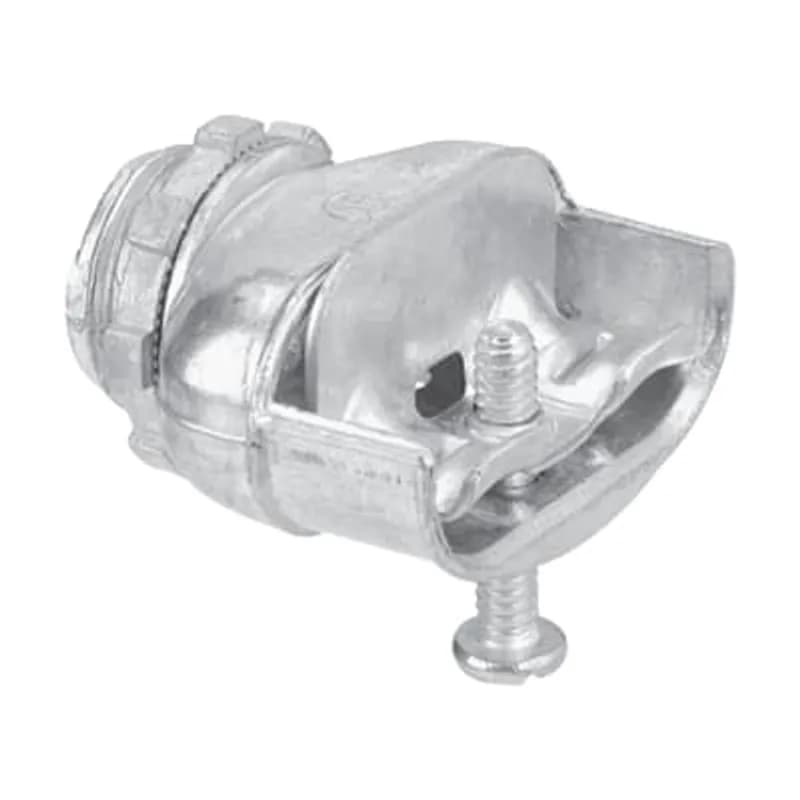

ABB - Installation Products CI2175 - Connector, Duplex, Trade Size 3/8 Inch, Clamping Range 0.15 Inch - 0.65 Inch, Zinc Alloy, Suggested Application NMD90 14/2-10/2, 14/3-10/3 and AC90 14/2-10/2, 14/3-10/3, 14/4-12/4
More images
ABB - Installation Products

CI2175

UPC: 622538725752

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 200

Multiplier: 200

*Contact for lower quantities*

Overview

The ABB CI2175 Duplex Connector, SKU CI2175, from ABB Installation Products, is a robust electrical connector designed for secure wire management. This connector features a 3/8 inch trade size and a clamping range of 0.15 inches to 0.65 inches, accommodating a variety of cable sizes. Constructed from durable zinc alloy, it offers reliable performance in electrical installations. Key applications for the CI2175 include NMD90 cables ranging from 14/2 to 10/2 and 14/3 to 10/3. It is also suitable for AC90 cables, supporting sizes from 14/2 to 10/2 and 14/3 to 10/3, as well as 14/4 to 12/4 configurations. This versatility makes it an essential component for residential and commercial wiring projects requiring secure and compliant connections. The zinc alloy construction ensures longevity and resistance to environmental factors. With its specific clamping range and compatibility with common NMD90 and AC90 cable types, the CI2175 simplifies the installation process for electricians. Its duplex design allows for efficient termination of multiple conductors within a single unit. The UNSPSC code for this product is 39121311, categorizing it under electrical connectors. Ensure proper installation according to electrical codes for optimal safety and performance.
  • ABB CI2175 Duplex Connector
  • 3/8 Inch Trade Size
  • Clamping Range: 0.15 Inch - 0.65 Inch
  • Durable Zinc Alloy Construction
  • Compatible with NMD90 and AC90 Cables

Specifications

Application
For 14/2-10/2, 14/3-10/3
Material
Zinc alloy
Size
3/8 Inch
Standard
3313
Type
Nonmetallic Sheathed Cable
Package Dimensions (L x W x H)
9.39 IN x 5.6 IN x 4.4 IN
Package Dimensions (L x W x H)
23.8506 cm x 14.224 cm x 11.176 cm
Package Weight (Imperial)
0.1000 L
Package Weight (Metric)
0.0450 kg
Male Terminal Adapter, Size 1 Inch, Length 1.902 Inches, Outer Diameter 1.580 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit

E943FRL

Male Terminal Adapter, Size 1 Inch, Length 1.902 Inches, Outer Diameter 1.580 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit
BELT, TIMING, 55 TEETH

014489-014

BELT, TIMING, 55 TEETH
Entrance Cap, Threaded, Aluminum, Size 2-1/2 Inch

1207

Entrance Cap, Threaded, Aluminum, Size 2-1/2 Inch
KIT GREASE FITTING WITH EXTENSION

GF 440/500 145MM

KIT GREASE FITTING WITH EXTENSION
One piece strut clamp with saddle designed to secure rigid/EMT conduit or cable perpendicular to strut. It is made of steel with a galvanized finish. The clamp fits 2-1/2 in EMT and 2-1/2 in RMC and has a static load rating of 350 lbs.

CCOP250

One piece strut clamp with saddle designed to secure rigid/EMT conduit or cable perpendicular to strut. It is made of steel with a galvanized finish. The clamp fits 2-1/2 in EMT and 2-1/2 in RMC and has a static load rating of 350 lbs.
Female MIXO Metal Pneumatic pin, Straight quick-fitting, with shut-off valve, For tubes with OD of 4mm

CX-4.0MPQV

Female MIXO Metal Pneumatic pin, Straight quick-fitting, with shut-off valve, For tubes with OD of 4mm
Connector, 90 Degree, Trade Size 1/2 Inch, Clamping Range 0.65 Inch - 0.97 Inch, Zinc Alloy, Suggested Application AC90 8/2, 8/3, 10/4

CI2211

Connector, 90 Degree, Trade Size 1/2 Inch, Clamping Range 0.65 Inch - 0.97 Inch, Zinc Alloy, Suggested Application AC90 8/2, 8/3, 10/4
Connector, 90 Degree, Trade Size 3/8 Inch, Clamping Range 0.40 Inch - 0.63 Inch, Zinc Alloy, Suggested application AC90 (BX) 14/2-10/2, 14/3-10/3, 14/4-12/4.

CI2210

Connector, 90 Degree, Trade Size 3/8 Inch, Clamping Range 0.40 Inch - 0.63 Inch, Zinc Alloy, Suggested application AC90 (BX) 14/2-10/2, 14/3-10/3, 14/4-12/4.

Frequently Asked Questions

What cable types is the CI2175 connector compatible with?

The CI2175 connector is suggested for NMD90 cables 14/2-10/2, 14/3-10/3, and AC90 cables 14/2-10/2, 14/3-10/3, 14/4-12/4.

What is the clamping range of the CI2175 connector?

The clamping range for the CI2175 connector is from 0.15 inches to 0.65 inches.

What material is the ABB CI2175 connector made from?

The ABB CI2175 connector is constructed from zinc alloy.

What is the trade size of the CI2175 duplex connector?

The CI2175 duplex connector has a trade size of 3/8 inch.
