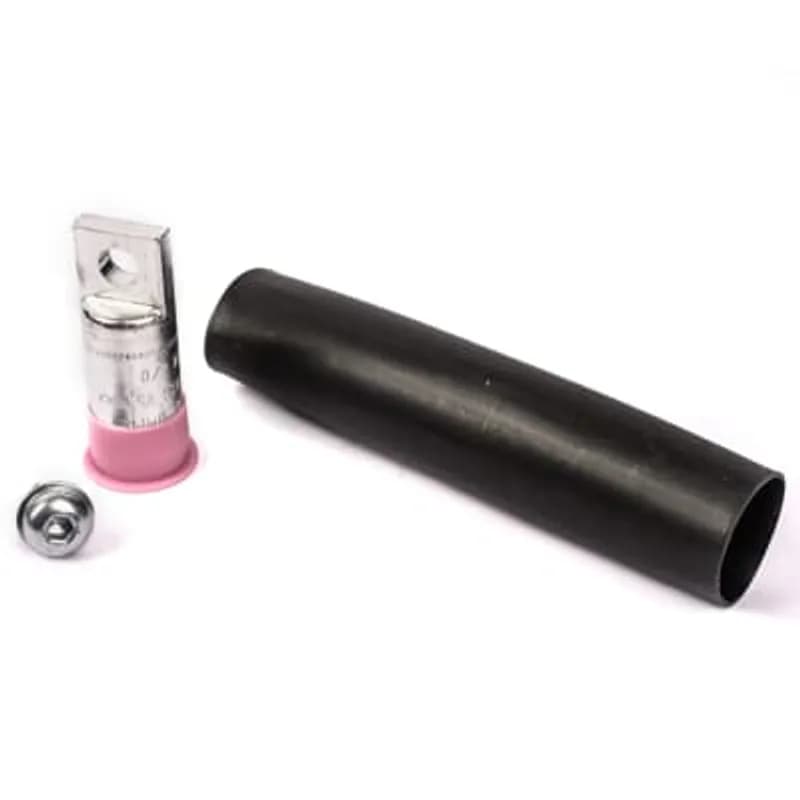

ABB - Installation Products CFK 250 HS - Aluminum Compression Lug Heat-Shrink Kit, Containing (1) Aluminum Lug 250 Stranded - Compressed, Installing Dies TX, 76, 249, 840, 11A, with one 13/32 inch diameter hole on 3/4 inch pad, Lug is 2-7/16 inch Long. (1) Screw, (1) Heat Shrink Tubing. Also includes Instruction Sheet. Dual Rated for Aluminum and Copper Conductors

ABB Installation Products CFK 250 HS Aluminum Compression Lug Heat-Shrink Kit, Containing (1) Aluminum Lug 250 Stranded…

UPC: 783786712526


Documents & Media
Installation InstructionsManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB Installation Products CFK 250 HS is a complete Aluminum Compression Lug Heat-Shrink Kit engineered for 250 MCM stranded conductors. This kit includes a pre-compressed aluminum lug with a 13/32 inch diameter hole on a 3/4 inch pad, measuring 2-7/4 inches in length. The lug is dual-rated for both aluminum and copper conductors, providing versatility across electrical installations. The kit features installation dies (TX, 76, 249, 840, 11A) for proper compression, a single screw for secure fastening, and heat-shrink tubing (HS40-400) for environmental protection and insulation. An instruction sheet is included for guided installation. The lug is designed for a strip length of 1-3/4 inches and is color-coded yellow for easy identification. This kit is ideal for applications requiring durable, protected electrical terminations in industrial, commercial, and utility settings where aluminum conductors are used. The included dies support compatibility with hand tools (TBM4S, TBM5, TBM6, TBM8), hydraulic tools (TBM6H 6 Ton, TBM8 12 Ton), and battery-operated tools (TBM_PCR-LI Series). The heat-shrink tubing provides additional insulation and environmental resistance, ensuring long-term reliability in exposed or harsh conditions.
  • Pre-compressed aluminum lug for 250 MCM stranded conductors
  • Dual-rated for aluminum and copper conductors
  • Includes installation dies (TX, 76, 249, 840, 11A) and heat-shrink tubing (HS40-400)
  • Lug dimensions: 13/32 inch hole on 3/4 inch pad, 2-7/4 inches long
  • Compatible with hand, hydraulic, and battery-operated tools

Specifications

Application
Multi-port Connector
Color
Black
Conductor Range
250 kcmil , 300 kcmil
Connection
Compression
Insulation
yes
Material
Aluminum Lug
Mounting
Allen Head Mounting Bolt
Special Features
Three Die Sets Install the Complete Range of Lugs from #8 to 350 kcmil. Lugs Prefilled with Oxide-Inhibiting Compound and Capped to Prevent Oxidation and Keep out Moisture. Heat Shrink Tubing
Type
Flood Seal Multi Port Heat Shrink Fit Connector
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
Aluminum Multi-Port Connectors - 95 Series Terminal Kits, Heat Shrink kit, concentric 250, compressed 250, compact 300, die reference 840,324,249,658,TX,76,11A, with Stainless Steel Hardware. Hex Headed Bolt

CFK 250 HSHSS

Aluminum Multi-Port Connectors - 95 Series Terminal Kits, Heat Shrink kit, concentric 250, compressed 250, compact 300, die reference 840,324,249,658,TX,76,11A, with Stainless Steel Hardware. Hex Headed Bolt
Aluminum Transformer Spade Connectors - ZBT Series - Double Row Mounting Holes, cable range 12-350, mounting holes 8 outlets 12. 4-7/8 inch X 2-7/32 inch X 6-1/2 inch

ZBT 6063

Aluminum Transformer Spade Connectors - ZBT Series - Double Row Mounting Holes, cable range 12-350, mounting holes 8 outlets 12. 4-7/8 inch X 2-7/32 inch X 6-1/2 inch
Brass Tin-Plated Threaded Transformer Stud Adapter for NEMA pad-style connections - Six-hole transformer stud adapter, Silver Brazed Stud - Size 5/8-11 UNC-2B with .875 inch Outside Diameter. Pad 7.5 inch long x 3.375 inch wide x .25 inch thick. Two rows of 3 holes spaced 1.75 inch on center and .562 inch Diameter.

2042-4

Brass Tin-Plated Threaded Transformer Stud Adapter for NEMA pad-style connections - Six-hole transformer stud adapter, Silver Brazed Stud - Size 5/8-11 UNC-2B with .875 inch Outside Diameter. Pad 7.5 inch long x 3.375 inch wide x .25 inch thick. Two rows of 3 holes spaced 1.75 inch on center and .562 inch Diameter.
Brass Tin-Plated Threaded Transformer Stud Adapter for NEMA pad-style connections - Eight-hole transformer stud adapter, Stud Size 5/8-11 UNC-2B. 8.75 inch Long x 3.5 inch wide x .375 inch thick. Two rows of 4 holes spaced 1.75 inch on center and .562 inch Diameter.

2042-8

Brass Tin-Plated Threaded Transformer Stud Adapter for NEMA pad-style connections - Eight-hole transformer stud adapter, Stud Size 5/8-11 UNC-2B. 8.75 inch Long x 3.5 inch wide x .375 inch thick. Two rows of 4 holes spaced 1.75 inch on center and .562 inch Diameter.
Brass Tin-Plated Threaded Transformer Stud Adapter for NEMA pad-style connections - Eight-hole transformer stud adapter, Stud Size 1-14 UNS-2B. 8.75 inch Long x 3.5 inch wide x .375 inch thick. Two rows of 4 holes spaced 1.75 inch on center and .562 inch Diameter.

2042-9

Brass Tin-Plated Threaded Transformer Stud Adapter for NEMA pad-style connections - Eight-hole transformer stud adapter, Stud Size 1-14 UNS-2B. 8.75 inch Long x 3.5 inch wide x .375 inch thick. Two rows of 4 holes spaced 1.75 inch on center and .562 inch Diameter.
Copper Tin Plated Threaded Transformer Stud Adapters for Stud to Cable connections, Cable Size 350 kcmil, Stud Size 5/8-11 UNC-2B. Length 3.125 inch x .882 inch Diameter. Dies TX 71 168 840.

2043-1

Copper Tin Plated Threaded Transformer Stud Adapters for Stud to Cable connections, Cable Size 350 kcmil, Stud Size 5/8-11 UNC-2B. Length 3.125 inch x .882 inch Diameter. Dies TX 71 168 840.
Aluminum Flood-Seal Multi-Port Connectors - RMX Series, Cable entry from either side, length 21-3/4 inch, outlets 12

RXM 66

Aluminum Flood-Seal Multi-Port Connectors - RMX Series, Cable entry from either side, length 21-3/4 inch, outlets 12
Aluminum Flood-Seal 95 Series Screw-on Transformer Connectors- with disconnectable bushing, adapter length 10 inch, stud size 5/8, outlets 6

FTU 95-6

Aluminum Flood-Seal 95 Series Screw-on Transformer Connectors- with disconnectable bushing, adapter length 10 inch, stud size 5/8, outlets 6

How to Install FLOOD-SEAL® 95 Heat Shrink Connector Kits

This guide provides step-by-step instructions for installing FLOOD-SEAL® 95 Heat Shrink Connector Kits. It covers preparing the cable, crimping the lug, and properly shrinking the sleeve to ensure a sealed connection. WARNING: Danger of Electric Shock! Installation must be performed by trained installers in accordance with all applicable local, state, and national electrical codes, installation standards, and safety rules.

Estimated time: 30m

Tools needed:

Wire brush, Crimping tool, Wrench, Butane torch, Propane torch, 500°F electric heat gun

Supplies needed:

Cable, FLOOD-SEAL® 95 Heat Shrink Connector Kit, Joint compound

  1. Prepare the Conductor

    Remove the cable insulation to the appropriate length and thoroughly wire brush the conductor end to ensure a clean surface for connection.

  2. Position the Heat Shrink Sleeve

    Before crimping, slip the heat shrink sleeve, which is part of the kit, over the cable end. Ensure it is positioned far enough back on the cable to allow for the lug crimping process.

  3. Crimp and Bolt the Lug

    Crimp the lug securely onto the prepared conductor end. Immediately wipe away any excess joint compound from the connection area. Then, bolt the lug firmly to the contact pad on the FLOOD-SEAL connector bus.

  4. Position the Sleeve for Shrinking

    Slide the heat shrink sleeve forward over the crimped lug until it butts firmly against the connector bus, covering the connection point.

  5. Shrink the Sleeve at the Bus End

    Using an approved heat source (butane torch, propane torch, or a 500°F electric heat gun; do not use Acetylene), apply heat evenly to the sleeve at the bus end. Move the heat source to a new position as visual shrinkage occurs. The seal is completed when a bead of mastic appears at the sleeve end, indicating a proper seal.

  6. Shrink the Sleeve Over the Terminal Lug

    Continue applying heat evenly, working away from the connector bus, to shrink the sleeve completely over the terminal lug. Ensure complete and even shrinkage around the entire lug.

  7. Shrink the Sleeve Over the Cable End

    Finally, shrink the remaining portion of the sleeve over the cable end, applying heat evenly. A seal is complete when a bead of mastic appears at this end, confirming a full and secure seal.
