Contact for Pricing
Minimum Qty: 100
Multiplier: 100
*Contact for lower quantities*
Overview

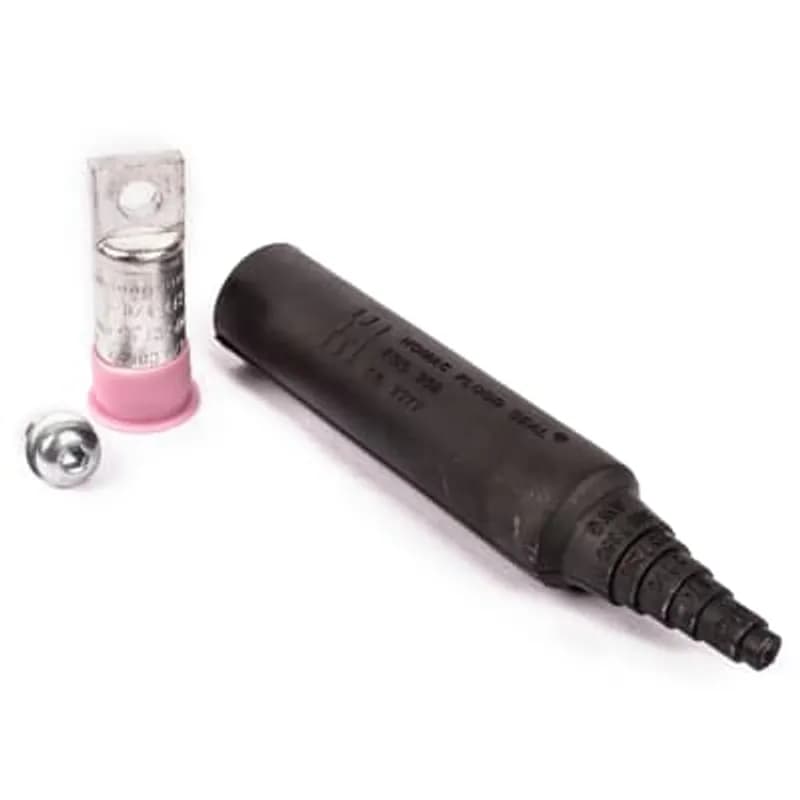

- Aluminum Flood-Seal Multi-Port Connector
- 95 Series Terminal Kit, Force-Fit design
- Accommodates concentric 1/0, compressed 1/0, compact 2/0, solid 2/0 conductors
- Utilizes die reference 840,324,249,658, TX, 76, 11A
- Designed for secure and environmentally protected electrical terminations
Specifications
Application | Multi-port Connector |
Color | Black |
Conductor Range | 1/0 STR AWG , 1/0 COMPR AWG , 2/0 COMPT AWG , 2/0 SOL AWG |
Connection | Compression |
Insulation | yes |
Material | Aluminum Lug |
Mounting | Allen Head Mounting Bolt |
Special Features | Three Die Sets Install the Complete Range of Lugs from #8 to 350 kcmil. Lugs Prefilled with Oxide-Inhibiting Compound and Capped to Prevent Oxidation and Keep out Moisture. Insulating Flood-Seal Rocket |
Type | Flood Seal Multi Port Heat Shrink Fit Connector |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
CFG 1/0 HS
Aluminum Flood-Seal Multi-Port Connectors - 95 Series Terminal Kits, Heat-Shrink kit, concentric 1/0, compressed 1/0, compact 2/0, solid 2/0, die reference 5/8,BG,687,243,TU,52,8A
CFK 3/0 CS
Aluminum Flood-Seal Multi-Port Connectors - 95 Series Terminal Kits, Force-Fit kit, concentric 3/0, compressed 3/0, compact 4/0, solid 4/0, die reference 840,324,249,658,TX,76,11ACFK 250 CS
Aluminum Flood-Seal Multi-Port Connectors - 95 Series Terminal Kits, Force-Fit kit, Aluminum Compression Lug for 250 Stranded - Compressed. Installation Dies TX, 76, 249, 840, 11A. Length 2-7/16 inch, Pad (1) 13/32 inch Diameter hole on 3/4 inch pad. Kit also contains (1) Insulating Rocket and (1) Screw and Instruction Sheet. Dual Rated for Aluminum and Copper ConductorsCFK 4/0 CS
Aluminum Flood-Seal Multi-Port Connectors - 95 Series Terminal Kits, Force-Fit kit, Concentric and Compressed 4/0, Compact 250.
CEA 4-75
Tin-Plated Copper Overhead Transformer Eyebolt Adapters, pin diameter 3/4, exposed pin size 2-3/4 inch, 4 hole pad
CSW 4350
Aluminum Transformer Connector-CSW Series - quick disconnect, cable range 12-350, stud size 5/8 in, insulator length 5-11/16 in, outlets 4CSW 6350
Aluminum Transformer Connector-CSW Series - quick disconnect, cable range 12-350, stud size 5/8 in, insulator length 7-1/16 in, outlets 6CSW 8350
Aluminum Transformer Connector-CSW Series - quick disconnect, cable range 12-350, stud size 5/8 in, insulator length 9-1/16 in, outlets 8How to Install the FLOOD-SEAL® FS-95 Connector Kit for CFK 1/0 CS
This guide provides step-by-step instructions for installing the FLOOD-SEAL® FS-95 Connector Kit, specifically for CFK 1/0 CS, including cable preparation, sleeve cutting, and final assembly. Installation must be performed by trained installers in accordance with all applicable electrical codes and safety rules to prevent danger of electric shock.
Estimated time: 30m
Tools needed:
Crimping tool, Wrench, Cutting tool (utility knife), Cleaning cloth, Pencil or marker
Supplies needed:
FLOOD-SEAL® FS-95 Rocket Sleeve, Electrical Lug, Electrical Cable (1/0 AWG), Silicone Grease, Connector Bar, Bus Bar
- Clean the Cable
Thoroughly clean the cable surface before proceeding with the rocket sleeve installation to ensure proper adhesion and connection.
- Mark Cable Insulation
Pencil or mark the cable insulation to indicate the desired stripping or preparation point for the connector.
- Select Correct Cut Ring
Identify the appropriate cut ring on the rocket sleeve by matching the conductor size (1/0 AWG for CFK 1/0 CS) to the raised numbers on the sleeve. For CFK 1/0 CS, this corresponds to Cut Ring #3.
- Cut Sleeve Tip
Carefully cut off the tip of the rocket sleeve up to the selected cut ring (Cut Ring #3 for 1/0 AWG). Ensure the cut leaves the required conductor range visible on the sleeve.
- Lubricate Sleeve and Cable
Apply silicone grease to both ends of the rocket sleeve and the cable. Hold the cable at an angle to the sleeve opening and twist the rocket sleeve while pushing it onto the cable for easier installation.
- Position Rocket Sleeve
Slide the rocket sleeve over the lug and onto the shoulder of the bus. Continue pushing until the rocket sleeve firmly butts against the rubber of the connector bar, creating a secure seal.
- Compress the Lug
Use an appropriate crimping tool to compress the lug securely onto the cable, ensuring a strong electrical and mechanical connection according to manufacturer specifications.
- Bolt Terminal to Bus
Securely bolt the assembled terminal (lug with cable and sleeve) to the bus, ensuring proper torque according to applicable electrical codes and standards.
