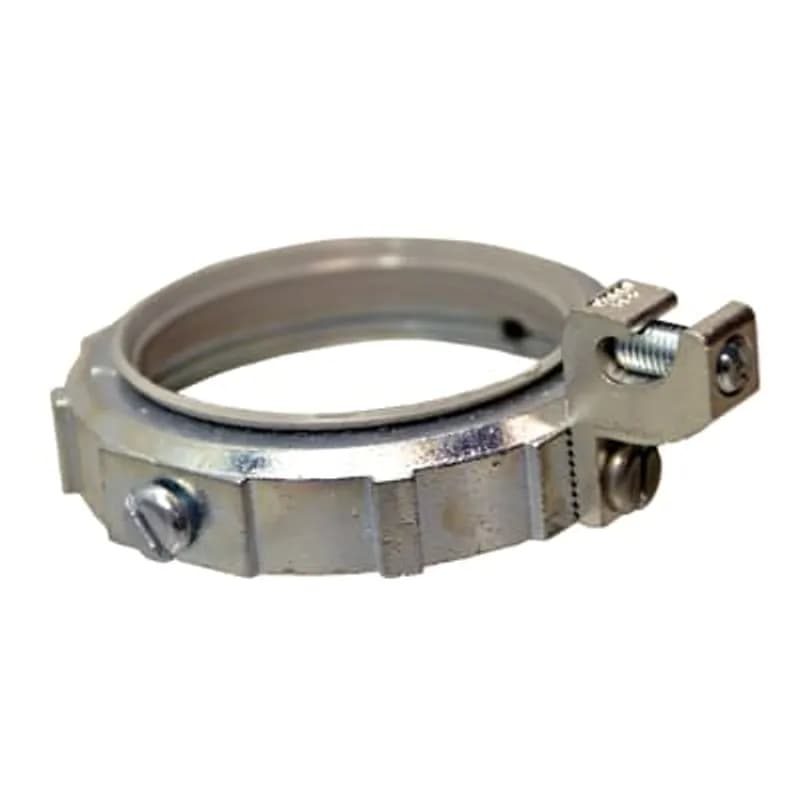

ABB Installation Products BG802L Insulated Ground Bushing, 3/4 Inch, Die Cast Zinc, For Use with Rigid/IMC Conduit
UPC: 785991088649
Documents & Media
Contact for Pricing
Minimum Qty: 50
Multiplier: 50
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 3/4 Inch size for Rigid and IMC Conduit
- Durable die-cast zinc construction
- Integrated insulation for conductor protection
- Ensures proper grounding pathways
- Manufactured by ABB Installation Products
Specifications
Application | For Use with Rigid/IMC Conduits |
Material | Die Cast Zinc |
Material | Zinc Die-Cast |
Series | BG802 |
Size | 3/4 Inch |
Special Features | 105 degree C thermoplastic liners, heavy reinforced ribs |
Type | Insulated Ground Bushing |
Package Dimensions (L x W x H) | 5.03 IN x 3.46 IN x 5.98 IN |
Package Dimensions (L x W x H) | 12.7762 cm x 8.7884 cm x 15.1892 cm |
Package Weight (Imperial) | 0.0800 L |
Package Weight (Metric) | 0.0360 kg |
STG8-G
PVC Coated Zinc Grounded Hub with Thermoplastic Insulated Throat, Pipe Size 3 Inch/78 Metric, Overall Diameter 4.38 Inch/111.25 Millimeters, Maximum Panel Thickness 0.25 Inch/6.35 Millimeters, Throat Diameter 2.97 Inch/75.44 Millimeters, Nitrile Rubber (Buna-N) Sealing Ring, Dark Gray
PR9010EG
Pipe roller for 9 to 10 inch pipe. The sheet identifies it as catalog number PR9010EG. No material, finish, or dimensional attributes are printed on the sheet.
CITEK-75-105
Aluminum fitting with a hub size of 3/4 inch for cables with over jacket diameters of 0.87 to 1.05 inches.
STE050DATAS
Star Teck Extreme steel jacketed fitting. Hub size of 1/2 inch. Range over jacket from 0.500 - 0.700 inch.
10567PVC
Watertight fitting made of Malleable Iron PVC coated with a hub thread size of 3/4 inch Cable Jacket outside diameter is 0.88 to 1.065 inches.
ST050-466BUSH
Star Teck aluminum bushing. Hub size of 1/2 inch. Range over jacket from 0.825 - 0.985 inch.Frequently Asked Questions
What wire sizes are compatible with the BG802L?
The BG802L is compatible with #14 - #4 AWG copper or aluminum wire.
What is the thread size for the BG802L bushing?
The BG802L grounding bushing features a 3/4 inch NPSM thread size.
What wire sizes are compatible with the BG802L?
The BG802L is compatible with #14 - #4 AWG copper or aluminum wire.
What is the thread size for the BG802L bushing?
The BG802L grounding bushing features a 3/4 inch NPSM thread size.
What is the thread size for the BG802L bushing?
The BG802L grounding bushing features a 3/4 inch NPSM thread size.
What wire sizes are compatible with the BG802L?
The BG802L is compatible with #14 - #4 AWG copper or aluminum wire.
What wire sizes are compatible with the BG802L?
The BG802L is compatible with #14 - #4 AWG copper or aluminum wire.
What is the thread size for the BG802L bushing?
The BG802L grounding bushing features a 3/4 inch NPSM thread size.
What material is the BG802L grounding bush made from?
The grounding bush component of the BG802L is made from Zinc Die Cast Zamak 3.
What material is the lay-in grounding lug?
The lay-in grounding lug for the BG802L is made from aluminum alloy and is electro tin plated.
