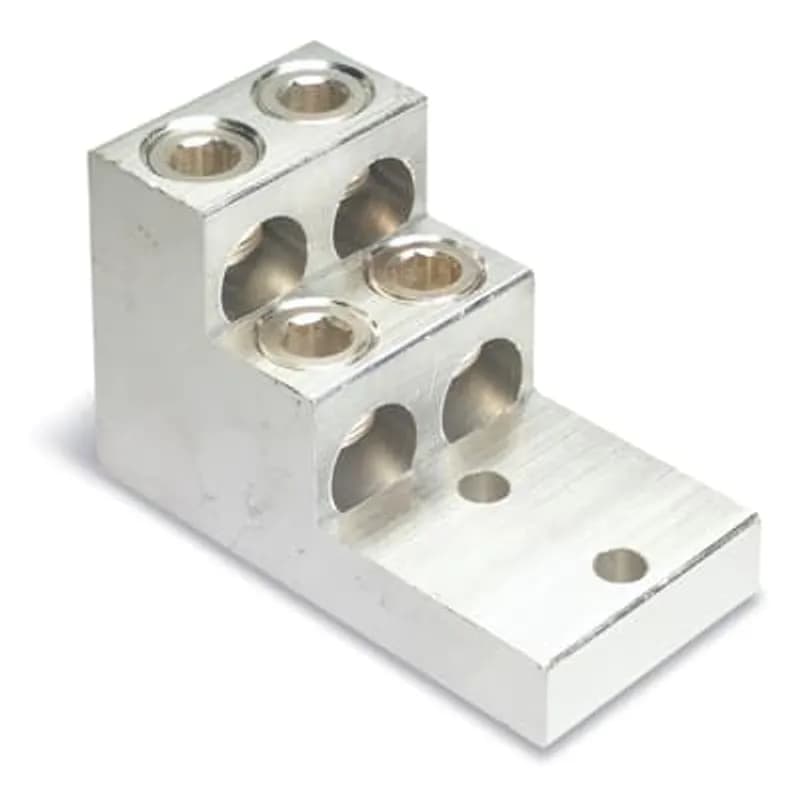

ABB - Installation Products ASL60-42 - Type ASL-ALCUL Four-Conductor, Two-Hole Mount for Conductor Range Max 600 kcmil, Min 2 Str.
More images
ABB - Installation Products

ASL60-42

UPC: 783786133178

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 3

Multiplier: 3

*Contact for lower quantities*

Overview

ABB Type ASL-ALCUL (SKU: ASL60-42) is a four-conductor, two-hole mount lug for high-current applications. It supports conductor sizes from 2 strands to 600 kcmil, ideal for heavy-duty power distribution in industrial, commercial, and utility systems. The two-hole design enhances stability and reduces rotational stress under cyclic loading. Manufactured by ABB Installation Products, it ensures consistent electrical contact and mechanical strength. Key applications: switchgear, panelboards, motor control centers, and renewable energy systems. Part of ABB’s Type ASL-ALCUL series, it meets industry standards for current-carrying capacity and mechanical integrity. Compliant with NEC, UL, and other regulatory standards. The four-conductor design supports parallel runs or multi-phase connections, simplifying installation and improving efficiency.
  • Four-conductor design for multi-phase or parallel conductor applications
  • Two-hole mount for enhanced stability and reduced rotational stress
  • Accommodates conductor sizes from 2 strands to 600 kcmil
  • Manufactured by ABB Installation Products for high-current applications
  • Compatible with standard lug configurations and regulatory standards

Specifications

Connection Type
Two-Hole Mount
Finish
Tinned
Material
Aluminum
Mounting Type
Two-hole Mount
Poles
4
Series
ASL-ALCUL
Size
Max 600 kcmil, Min 2 Str.
Special Features
Easy Installation - no special tools required
Standard
UL E9809
Type
Dual-Rated
Package Dimensions (L x W x H)
8.6 IN x 3.3 IN x 6 IN
Package Dimensions (L x W x H)
21.844 cm x 8.382 cm x 15.24 cm
Package Weight (Imperial)
1.1200 L
Package Weight (Metric)
0.5080 kg
