ABB - Installation Products IPC5041 - Type IPC - Talon Insulation Piercing Connector for Conductor Range Main: 500-350 AWG, 240-185 MM sq., Tap: 4/0-4 AWG, 90-25 MM sq.
ABB - Installation Products

IPC5041

UPC: 783786331130

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 8

Multiplier: 8

*Contact for lower quantities*

Overview

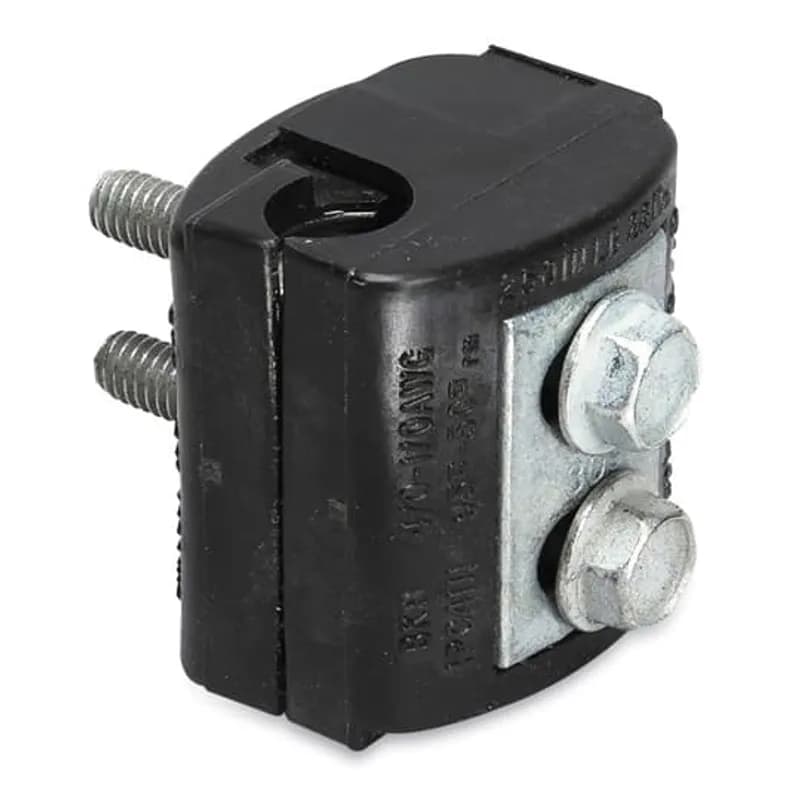

The ABB Talon IPC5041 insulation piercing connector (SKU: IPC5041) is a Type IPC connector designed for reliable mechanical and electrical connections in overhead and underground distribution systems. This connector accommodates a main conductor range of 500-350 AWG (240-185 mm²) and a tap conductor range of 4/0-4 AWG (90-25 mm²), making it suitable for medium to high-voltage applications where secure, maintenance-free joints are required. The IPC5041 features a corrosion-resistant aluminum alloy body with stainless steel piercing elements to ensure long-term conductivity and mechanical integrity. The connector’s insulation piercing technology eliminates the need for conductor stripping, reducing installation time and minimizing exposure to live circuits. It meets industry standards for mechanical strength and electrical continuity, providing a dependable solution for branch connections in power distribution networks. Common applications include utility pole installations, underground cable systems, and industrial power distribution where branch circuits must be tapped from primary conductors without service interruption. The connector’s compact design allows for installation in tight spaces while maintaining compliance with NEC and IEC requirements for conductor compatibility and environmental durability.
  • Main conductor range: 500-350 AWG (240-185 mm²)
  • Tap conductor range: 4/0-4 AWG (90-25 mm²)
  • Aluminum alloy body with stainless steel piercing elements
  • No conductor stripping required for installation
  • Compliant with NEC and IEC standards for mechanical and electrical performance

Specifications

Color
Black
Number of Mounting Holes
1
Special Features
For copper-to-copper, copper-to-aluminum and aluminum-to-aluminum applications (insulated conductor only). Performs as splice or tab for non-tension applications up to 600 volts, depending on size of connector
Standard
UL E9809
Temperature Rating, Maximum
194 F
Temperature Rating, Maximum
90 C
Temperature Rating, Minimum
194 F
Temperature Rating, Minimum
90 C
Type
Insulated Conductor Connectors
Voltage Rating
600 V
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.8000 L
Package Weight (Metric)
0.3630 kg
Black Polypropylene Insulating Cover for Use with Split Bolts 10H, 20H, Tap CT20, 600V Max

CT20C

Black Polypropylene Insulating Cover for Use with Split Bolts 10H, 20H, Tap CT20, 600V Max
Multi Tap Connector, Single Sided, Black Insulation, 2 Port, #4-#14 AWG STR, #10-#14 AWG SOL

BLKPSB4-2S-12

Multi Tap Connector, Single Sided, Black Insulation, 2 Port, #4-#14 AWG STR, #10-#14 AWG SOL
8" UV Black Heat Stabilized Cable Ties are formulated for high temperature situations, such as automotive applications and are engineered for superior performance. 18lb Tensile Strength-100 Count Pack.

8180-HS

8" UV Black Heat Stabilized Cable Ties are formulated for high temperature situations, such as automotive applications and are engineered for superior performance. 18lb Tensile Strength-100 Count Pack.
AF26-38 STAR DELTA PUSHIN CONNECT SET

BEY38-4KF

AF26-38 STAR DELTA PUSHIN CONNECT SET
Type H - High Strength Split-Bolt Connector, Conductor Range for Equal Main and Tap 2 Str-6 Sol, Conductor Range for Min Tap with One Max Main 14 Sol

1H

Type H - High Strength Split-Bolt Connector, Conductor Range for Equal Main and Tap 2 Str-6 Sol, Conductor Range for Min Tap with One Max Main 14 Sol
Type CA Aluminum Split-Bolt Connector with Spacer and Washer for Use on Copper, Aluminum Conductors. Conductor Range for Equal Main and Tap 1 Str.-4 Sol.

2CA

Type CA Aluminum Split-Bolt Connector with Spacer and Washer for Use on Copper, Aluminum Conductors. Conductor Range for Equal Main and Tap 1 Str.-4 Sol.
Type H - High Strength Split-Bolt Connector, Conductor Range for Equal Main and Tap 2/0 Str-2 Sol, Conductor Range for Min Tap with One Max Main 14 Sol

20H

Type H - High Strength Split-Bolt Connector, Conductor Range for Equal Main and Tap 2/0 Str-2 Sol, Conductor Range for Min Tap with One Max Main 14 Sol
Type H - High Strength Split-Bolt Connector, Conductor Range for Equal Main and Tap 4/0 Str-2 Sol, Conductor Range for Min Tap with One Max Main 6 Sol

30H

Type H - High Strength Split-Bolt Connector, Conductor Range for Equal Main and Tap 4/0 Str-2 Sol, Conductor Range for Min Tap with One Max Main 6 Sol
