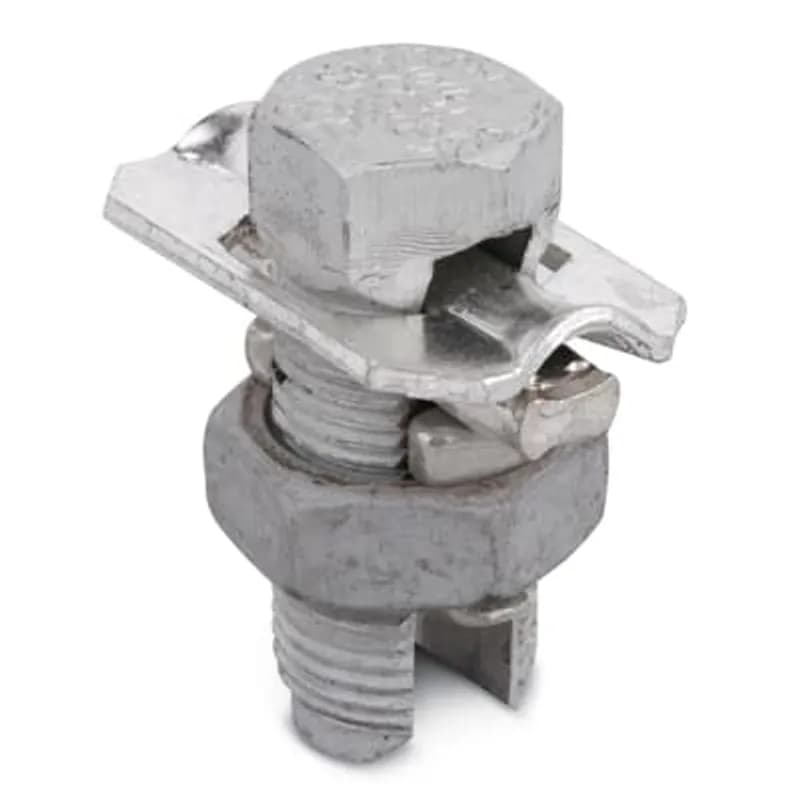

ABB - Installation Products 2CA - Type CA Aluminum Split-Bolt Connector with Spacer and Washer for Use on Copper, Aluminum Conductors. Conductor Range for Equal Main and Tap 1 Str.-4 Sol.
ABB - Installation Products

2CA

UPC: 783786200559

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 100

Multiplier: 100

*Contact for lower quantities*

Overview

The ABB Type CA Aluminum Split-Bolt Connector (SKU: 2CA) is designed for reliable electrical connections between copper and aluminum conductors. This connector features a spacer and washer, ensuring proper contact and separation for mixed conductor types. Engineered for direct application, it accommodates conductor ranges from 1-strand to 4-solid for both equal main and tap configurations. This split-bolt design provides a secure mechanical grip, essential for maintaining electrical integrity in various industrial and utility applications. The aluminum construction offers good conductivity and corrosion resistance suitable for its intended use. The inclusion of a spacer and washer is critical for preventing galvanic corrosion when connecting dissimilar metals like copper and aluminum, a common challenge in electrical infrastructure. This connector is part of ABB's Installation Products catalog, known for providing essential components for electrical systems. Its straightforward design and application make it a practical choice for electricians and technicians performing conductor splicing and termination tasks where copper and aluminum conductors are involved. The UNSPSC code 39121408 categorizes this product under electrical connectors and fittings, highlighting its role in building and maintaining electrical circuits.
  • Type CA Aluminum Split-Bolt Connector
  • Includes Spacer and Washer
  • For Copper and Aluminum Conductors
  • Conductor Range: 1 Str.-4 Sol. (Equal Main/Tap)
  • Manufacturer: ABB - Installation Products

Specifications

Application
Splicing, tapping or terminating conductors in power and grounding electrical connection
Color
Metallic
Connection Type
Split-Bolt Connector with Spacer and Washer
Material
Aluminum
Series
Type CA
Size
Conductor Range for Equal Main and Tap 1 Str.-4 Sol
Special Features
Bolt, nut, pressure bar and contoured spacer of aluminum alloy. Pressure bar and contoured spacer made of electrolytic copper. Spacer is completely tin plated
Standard
UL E9809
Type
Split-Bolt
Package Dimensions (L x W x H)
7.1 IN x 5.1 IN x 6.6 IN
Package Dimensions (L x W x H)
18.034 cm x 12.954 cm x 16.764 cm
Package Weight (Imperial)
0.0900 L
Package Weight (Metric)
0.0410 kg
