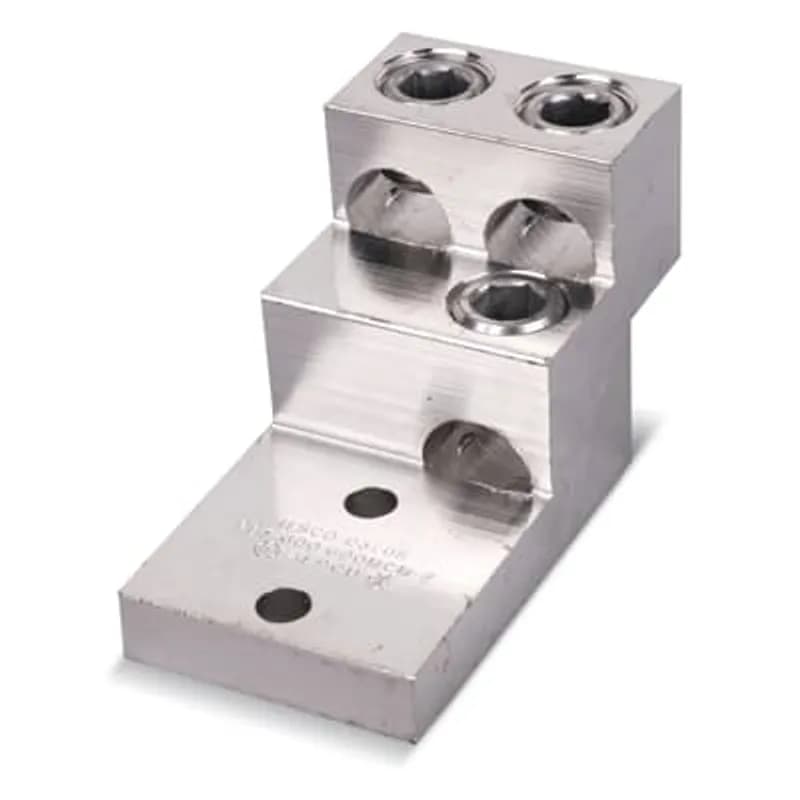

ABB - Installation Products ASL60-32 - Type ASL-ALCUL Three-Conductor, Two-Hole Mount for Conductor Range Max 600 kcmil, Min 2 Str.
ABB - Installation Products

ASL60-32

UPC: 783786133161

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 3

Multiplier: 3

*Contact for lower quantities*

Overview

The ABB ASL60-32 Type ASL-ALCUL three-conductor lug is designed for secure, high-current electrical terminations in industrial power distribution systems. This lug accommodates conductor sizes from a minimum of 2 AWG stranded wire up to a maximum of 600 kcmil, making it suitable for heavy-duty applications where large-gauge conductors are required. The two-hole mounting design ensures stable attachment to busbars or other termination points, providing a reliable mechanical and electrical connection. Engineered for compatibility with both aluminum and copper conductors, the ASL60-32 offers versatility in wiring systems. Its screw terminal design allows for straightforward installation and maintenance, with a wire stripping length of 14 mm for main circuit connections. The lug is rated for a general use current of 50 A at 600 V AC and supports horsepower ratings up to 30 hp in three-phase systems at 550-600 V AC.
  • Accommodates conductor sizes from 2 AWG to 600 kcmil
  • Two-hole mounting design for secure attachment
  • Compatible with aluminum and copper conductors
  • Rated for 50 A at 600 V AC, supports up to 30 hp in three-phase systems
  • Screw terminal design with 14 mm wire stripping length

Specifications

Finish
Tinned
Material
Aluminum
Mounting Type
Two-hole Mount
Series
ASL-ALCUL
Size
Max 600 kcmil, Min 2 Str.
Special Features
Easy Installation - no special tools required
Standard
UL E9809
Type
Dual-Rated
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.2300 L
Package Weight (Metric)
0.5580 kg
