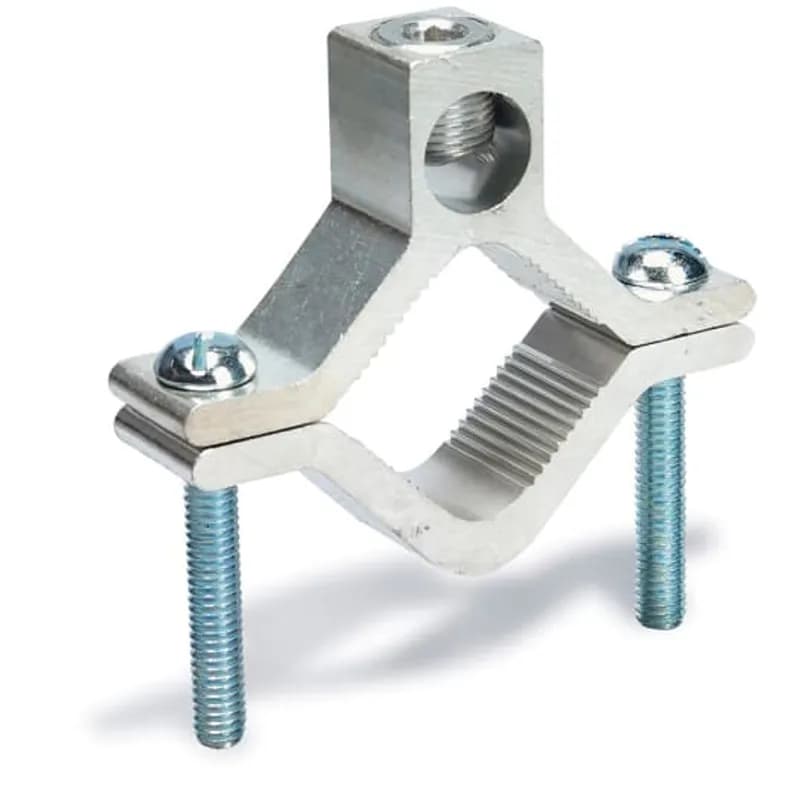

ABB - Installation Products AJ - Aluminum Dual-Rated Waterpipe Ground Clamp for Wire Range 14 - 1/0, Water Pipe Size 1/2 - 1
ABB - Installation Products

AJ

UPC: 783786802975

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 25

Multiplier: 25

*Contact for lower quantities*

Overview

The ABB Aluminum Dual-Rated Waterpipe Ground Clamp (SKU: AJ) is designed for secure and reliable grounding connections to water pipes. This clamp is dual-rated, meaning it is suitable for use with both copper and aluminum conductors, offering versatility in installation. It accommodates a wire range from 14 AWG to 1/0 AWG, making it adaptable for various grounding applications. The clamp is specifically engineered to fit water pipe sizes ranging from 1/2 inch to 1 inch in diameter. Constructed from durable aluminum, it provides corrosion resistance and ensures long-term performance in electrical grounding systems. This product is essential for ensuring safety and compliance in electrical installations where grounding to water pipe infrastructure is required. Its robust design facilitates a strong mechanical connection, crucial for effective fault current dissipation. The ABB Installation Products division is known for its reliable electrical components, and this ground clamp upholds that standard. Ideal for residential, commercial, and industrial settings requiring dependable grounding solutions.
  • Dual-rated for copper and aluminum conductors
  • Accommodates wire range: 14 AWG - 1/0 AWG
  • Designed for water pipe sizes: 1/2 inch - 1 inch
  • Durable aluminum construction for corrosion resistance
  • Provides secure and reliable grounding connections

Specifications

Connection Type
Ground Clamp
Material
Aluminum
Size
Wire Range 14 - 1/0, Water Pipe Size 1/2 - 1
Special Features
Tin plated for corrosion resistance
Standard
UL E3060
Type
Ground Clamps
Package Dimensions (L x W x H)
6.8 IN x 5.3 IN x 4.69 IN
Package Dimensions (L x W x H)
17.272 cm x 13.462 cm x 11.9126 cm
Package Weight (Imperial)
0.1400 L
Package Weight (Metric)
0.0640 kg
