Contact for Pricing
Minimum Qty: 3
Multiplier: 3
*Contact for lower quantities*

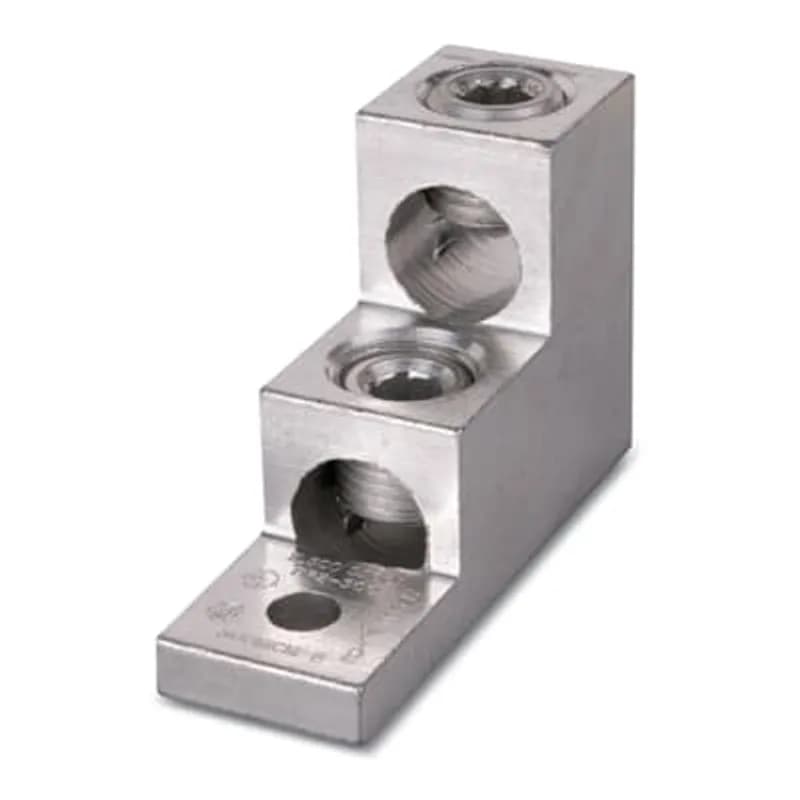

Overview
- Two-conductor design for secure conductor termination
- One-hole mount for quick installation on compatible surfaces
- Supports conductor range: 300 kcmil max, 6 strands min
- Compatible with solid and stranded wires
- Ideal for control panels, switchgear, and electrical enclosures
Specifications
Connection Type | One-Hole Mount |
Finish | Tinned |
Material | Copper |
Material | Aluminum |
Mounting Type | One-hole mount |
Poles | 2 |
Series | ASL-ALCUL |
Size | 300 kcmil to 6 Str. |
Special Features | Easy Installation - no special tools required |
Standard | UL E9809 |
Type | Dual-Rated |
Package Dimensions (L x W x H) | 6.5 IN x 5 IN x 4.3 IN |
Package Dimensions (L x W x H) | 16.51 cm x 12.7 cm x 10.922 cm |
Package Weight (Imperial) | 0.3000 L |
Package Weight (Metric) | 0.1360 kg |
TS350-2
2 Port Aluminum Dual Rated Transformer Stud Connector 350 MCM -6 AWG with 5/8" Stud Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.
PCSB4-3S-12Y
The PCSB4-3S-12Y Multi-Tap Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.
1HPS
Type HPS - Split-Bolt Connector with Spacer, Conductor Range for Equal Main and Tap ACSR 2-8, Conductor Range for Equal Main and Tap 1 Str-8 Sol, Min Tap with One Max Main 8 Sol, Tin Plated
1H3
Type H High Strength Split-Bolt Connector, Bronze Alloy for Use on Copper Conductors, Conductor Range for Equal Main and Tap 2 Str-6 Sol
1HPW
Type HPW Plated Split-Bolt Connector with Spacer and Washer made of Copper Alloy for Use on Copper, Aluminum, ACSR Conductors. Conductor Range for Equal Main and Tap 1 Str.-8 Sol.Frequently Asked Questions
Who manufactures the ASL30-21?
The ASL30-21 is manufactured by ABB Installation Products, a division of ABB.
What conductor sizes does the ASL30-21 support?
The ASL30-21 supports a conductor range from a maximum of 300 kcmil down to a minimum of 6 strands.
Is the ASL30-21 suitable for stranded wires?
Yes, the ASL30-21 is designed to accommodate both solid and stranded conductors within its specified range.
How is the ASL30-21 mounted?
The ASL30-21 features a one-hole mount design for direct attachment to compatible surfaces.
What applications use the ASL30-21?
The ASL30-21 is used in control panels, switchgear, and electrical enclosures requiring stable conductor terminations.
