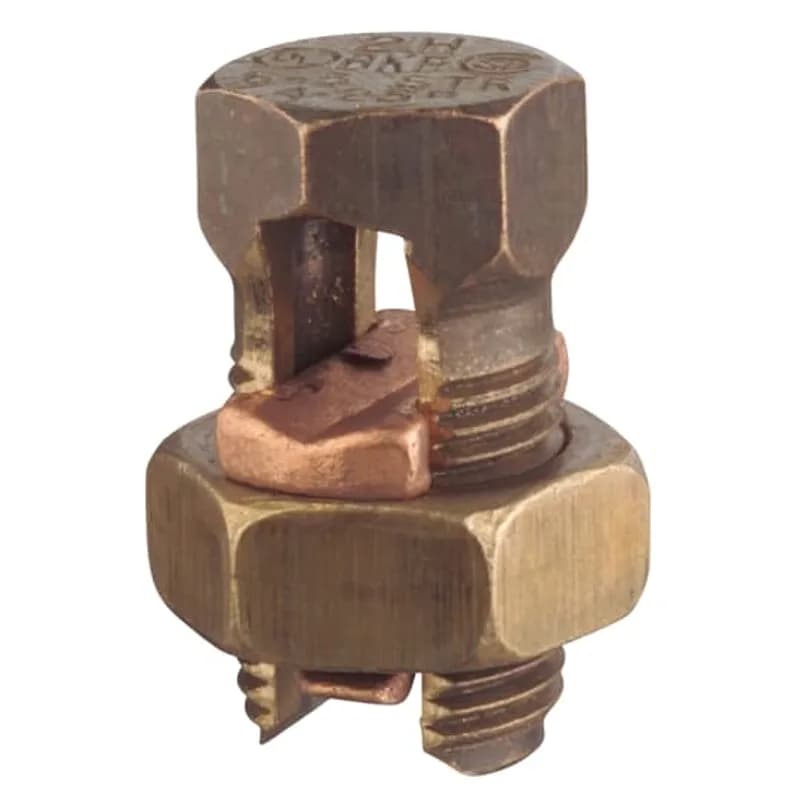

ABB - Installation Products 1H3 - Type H High Strength Split-Bolt Connector, Bronze Alloy for Use on Copper Conductors, Conductor Range for Equal Main and Tap 2 Str-6 Sol
ABB - Installation Products

1H3

UPC: 783786200139

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 100

Multiplier: 100

*Contact for lower quantities*

Overview

The ABB Type H High Strength Split-Bolt Connector (SKU: 1H3) is engineered for reliable connections on copper conductors. Constructed from a durable bronze alloy, this connector is specifically designed for applications requiring robust and secure electrical joints. Its design facilitates the connection of equal main and tap conductors within the range of 2 Stranded to 6 Solid AWG. This makes it suitable for various industrial and commercial electrical installations where dependable conductor joining is paramount. The split-bolt design ensures a firm grip on the conductors, minimizing the risk of loosening due to vibration or thermal cycling. ABB's commitment to quality in their Installation Products division means this connector is built for longevity and consistent performance in its intended applications. When specifying connectors for copper conductor systems, the Type H split-bolt offers a straightforward and effective solution for achieving secure electrical continuity. Its material composition resists corrosion, further enhancing its suitability for diverse environmental conditions encountered in electrical infrastructure. The precise conductor range ensures compatibility with common wiring sizes, simplifying project planning and material selection for electricians and engineers.
  • Type H High Strength Split-Bolt Connector
  • Constructed from durable Bronze Alloy
  • Designed for Copper Conductors
  • Conductor Range: 2 Stranded - 6 Solid AWG (Equal Main and Tap)
  • Manufacturer: ABB - Installation Products

Specifications

Application
Splicing, tapping or terminating conductors in power and grounding electrical connection
Color
Metallic
Material
Bronze Alloy
Series
H
Size
2 Str-6 Sol
Special Features
Bolt and nut of high-strength corrosion-resistant bronze alloy. Copper pressure bar. Bolt and nut of hex design
Standard
UL E9809
Type
Split-Bolt
Package Dimensions (L x W x H)
6.75 IN x 5.3 IN x 4.7 IN
Package Dimensions (L x W x H)
17.145 cm x 13.462 cm x 11.938 cm
Package Weight (Imperial)
0.1300 L
Package Weight (Metric)
0.0590 kg
K&L Grade Copper Tubing Ground Clamp for Wire Range , Water Pipe Size

31230

K&L Grade Copper Tubing Ground Clamp for Wire Range , Water Pipe Size
Two-bolt connector, bronze, tin-plated, type VTA, 1/0 STR - 4/0 STR run, 10 STR - 4/0 STR tap

VTA-2-Q

Two-bolt connector, bronze, tin-plated, type VTA, 1/0 STR - 4/0 STR run, 10 STR - 4/0 STR tap
6 Port Aluminum Dual Rated Transformer Connector 750 MCM - 250 MCM Transformer Connectors are made from 6061T-6 aluminum alloy. They are electro-tin plated for low contact resistance. Two NEMA 1/2" holes for easy attachment. Rated 600 volts.

STL750-6

6 Port Aluminum Dual Rated Transformer Connector 750 MCM - 250 MCM Transformer Connectors are made from 6061T-6 aluminum alloy. They are electro-tin plated for low contact resistance. Two NEMA 1/2" holes for easy attachment. Rated 600 volts.
Type HPW Plated Split-Bolt Connector with Spacer and Washer made of Copper Alloy for Use on Copper, Aluminum, ACSR Conductors. Conductor Range for Equal Main and Tap 1 Str.-8 Sol.

1HPW

Type HPW Plated Split-Bolt Connector with Spacer and Washer made of Copper Alloy for Use on Copper, Aluminum, ACSR Conductors. Conductor Range for Equal Main and Tap 1 Str.-8 Sol.
Type AAW Aluminum Split-Bolt Connector with Spacer and Washer for Use on Aluminum, ASCR Conductors. Conductor Range for Equal Main and Tap 2/0 Str.-2 Sol.

10AAW

Type AAW Aluminum Split-Bolt Connector with Spacer and Washer for Use on Aluminum, ASCR Conductors. Conductor Range for Equal Main and Tap 2/0 Str.-2 Sol.
Type CA Aluminum Split-Bolt Connector with Spacer and Washer for Use on Copper, Aluminum Conductors. Conductor Range for Equal Main and Tap 2/0 Str.-2 Sol.

10CA

Type CA Aluminum Split-Bolt Connector with Spacer and Washer for Use on Copper, Aluminum Conductors. Conductor Range for Equal Main and Tap 2/0 Str.-2 Sol.
Type H - High Strength Split-Bolt Connector, Conductor Range for Equal Main and Tap 1/0 Str-4 Sol, Conductor Range for Min Tap with One Max Main 14 Sol

10H

Type H - High Strength Split-Bolt Connector, Conductor Range for Equal Main and Tap 1/0 Str-4 Sol, Conductor Range for Min Tap with One Max Main 14 Sol
Type HPW Plated Split-Bolt Connector with Spacer and Washer made of Copper Alloy for Use on Copper, Aluminum, ACSR Conductors. Conductor Range for Equal Main and Tap 1/0 Str.-6 Sol.

10HPW

Type HPW Plated Split-Bolt Connector with Spacer and Washer made of Copper Alloy for Use on Copper, Aluminum, ACSR Conductors. Conductor Range for Equal Main and Tap 1/0 Str.-6 Sol.
