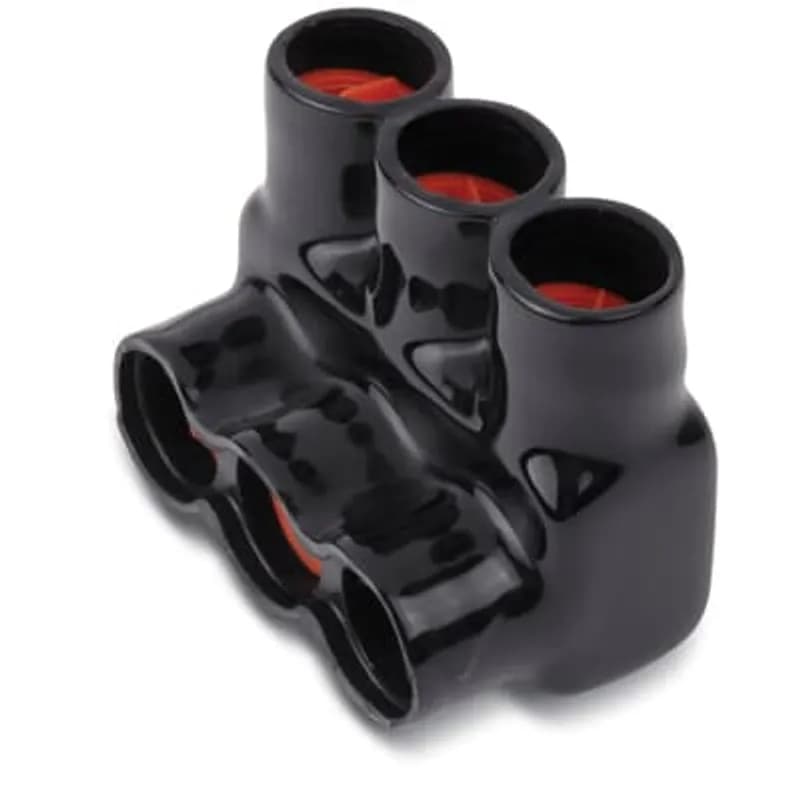

ABB - Installation Products AMTS25063 - AMT 3 Port Same Side PVC Connector, Ultraviolet Resistant, Wire Range 250 kcmil-6 Str, Length 3.09 Inches, Width 2.13 Inches, Height 2.13 Inches, Hex Size 5/16 Inch
More images
ABB - Installation Products

AMTS25063

UPC: 783786669677

Documents & Media
BrochureManufacturer Product Website

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Overview

This ABB AMT 3 Port Same Side PVC Connector (SKU: AMTS25063) is designed for reliable electrical connections in demanding industrial applications. Constructed from ultraviolet (UV) resistant PVC, this connector ensures long-term performance and durability, even when exposed to direct sunlight and harsh environmental conditions. It accommodates a wide wire range, supporting conductors from 250 kcmil down to 6 Str, making it versatile for various wiring projects. The connector features a same-side port configuration, facilitating efficient and organized wiring layouts. Its compact dimensions, with a length of 3.09 inches, a width of 2.13 inches, and a height of 2.13 inches, allow for installation in space-constrained areas. The hexagonal head size of 5/16 inch ensures a secure and straightforward connection with standard tools. Manufactured by ABB - Installation Products, this connector adheres to high industry standards for electrical components. Its UNSPSC code is 39121428. This product is ideal for use in electrical distribution systems, control panels, and outdoor electrical installations where UV resistance and secure wire termination are critical requirements. The robust PVC material provides excellent electrical insulation and mechanical protection for the connected wires.
  • 3 Port Same Side PVC Connector
  • Ultraviolet (UV) Resistant PVC Construction
  • Wire Range: 250 kcmil - 6 Str
  • Compact Dimensions: 3.09" L x 2.13" W x 2.13" H
  • Hex Size: 5/16 Inch

Specifications

Connection Type
Same Side
Current Rating
250 kcmil
Material
PVC
Series
AMT
Size
3.09 Inches (Length) x 2.13 Inches (Width) x 2.13 Inches (Height)
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.3600 L
Package Weight (Metric)
0.1630 kg
AMT 2 Port Same Side PVC Connector, Ultraviolet Resistant, Wire Range 500 kcmil-6 Str, Length 2.71 Inches, Width 2.38 Inches, Height 2.75 Inches, Hex Size 3/8 Inch, Black Insulation

AMTS50042

AMT 2 Port Same Side PVC Connector, Ultraviolet Resistant, Wire Range 500 kcmil-6 Str, Length 2.71 Inches, Width 2.38 Inches, Height 2.75 Inches, Hex Size 3/8 Inch, Black Insulation
AMT 4 Port Same Side PVC Connector, Ultraviolet Resistant, Wire Range 250 kcmil-6 Str, Length 4.06 Inches, Width 2.13 Inches, Height 2.13 Inches, Hex Size 5/16 Inch

AMTS25064

AMT 4 Port Same Side PVC Connector, Ultraviolet Resistant, Wire Range 250 kcmil-6 Str, Length 4.06 Inches, Width 2.13 Inches, Height 2.13 Inches, Hex Size 5/16 Inch
Type TC-Aluminum Parallel Tap Insulating Covers for Use with type GP-0 and GT-0 Aluminum Connectors, Black Thermo-Plastic, Rating 90 Degrees C and 600 Volts. Use with 3/4 inch Strip Length. Overall Length 4-31/32 inch, Folded Length 2-1/2 inch.

TC-10

Type TC-Aluminum Parallel Tap Insulating Covers for Use with type GP-0 and GT-0 Aluminum Connectors, Black Thermo-Plastic, Rating 90 Degrees C and 600 Volts. Use with 3/4 inch Strip Length. Overall Length 4-31/32 inch, Folded Length 2-1/2 inch.
Type TC-Aluminum Parallel Tap Insulating Covers for Use with type GP-2 and GT-2 Aluminum Connectors, Black Thermo-Plastic, Rating 90 Degrees C and 600 Volts. Use with 5/8 inch Strip Length. Overall Length 4-1/2 inch, Folded Length 2-1/4 inch.

TC-2

Type TC-Aluminum Parallel Tap Insulating Covers for Use with type GP-2 and GT-2 Aluminum Connectors, Black Thermo-Plastic, Rating 90 Degrees C and 600 Volts. Use with 5/8 inch Strip Length. Overall Length 4-1/2 inch, Folded Length 2-1/4 inch.
Type TC-Aluminum Parallel Tap Insulating Covers for Use with type GP-750 and GT-750 Aluminum Connectors, Black Thermo-Plastic, Rating 90 Degrees C and 600 Volts. Use with 1-1/2 inch Strip Length. Overall Length 9-3/4 inch, Folded Length 4-7/8 inch.

TC-750

Type TC-Aluminum Parallel Tap Insulating Covers for Use with type GP-750 and GT-750 Aluminum Connectors, Black Thermo-Plastic, Rating 90 Degrees C and 600 Volts. Use with 1-1/2 inch Strip Length. Overall Length 9-3/4 inch, Folded Length 4-7/8 inch.
Aluminum Type PGH - Center Bolt Parallel Groove Hot Tap Clamps for wire range Main AWG 2/0 Stranded - #8 Solid, Main ASCR 2/0 - #8. Has Oxide Inhibitor.

PGH29

Aluminum Type PGH - Center Bolt Parallel Groove Hot Tap Clamps for wire range Main AWG 2/0 Stranded - #8 Solid, Main ASCR 2/0 - #8. Has Oxide Inhibitor.
Aluminum Type PGH - Center Bolt Parallel Groove Hot Tap Clamps for wire range Main AWG 450 - 4 Solid, Main ASCR 397.5 - 6, 2/0 - 6. Has Oxide Inhibitor.

PGH49

Aluminum Type PGH - Center Bolt Parallel Groove Hot Tap Clamps for wire range Main AWG 450 - 4 Solid, Main ASCR 397.5 - 6, 2/0 - 6. Has Oxide Inhibitor.
Copper Type PGH - Center Bolt Parallel Groove Hot Tap Clamps for wire range Main AWG 2/0 Stranded - 8 Solid, Main ASCR. For use with copper conductor only. Has Oxide Inhibitor.

PGH39

Copper Type PGH - Center Bolt Parallel Groove Hot Tap Clamps for wire range Main AWG 2/0 Stranded - 8 Solid, Main ASCR. For use with copper conductor only. Has Oxide Inhibitor.

Frequently Asked Questions

What wire sizes does this ABB connector support?

The ABB AMTS25063 connector supports a wire range from 250 kcmil down to 6 Str.

Is this connector suitable for outdoor use?

Yes, this connector is made of ultraviolet (UV) resistant PVC, making it suitable for outdoor applications.

What are the dimensions of the AMTS25063 connector?

The connector has a length of 3.09 inches, a width of 2.13 inches, and a height of 2.13 inches.

What is the hex size for tightening this connector?

The hex size required for tightening this connector is 5/16 Inch.

What is the manufacturer of the AMTS25063 connector?

The manufacturer of this connector is ABB - Installation Products.
