Contact for Pricing
Minimum Qty: 10
Multiplier: 10
*Contact for lower quantities*
Overview

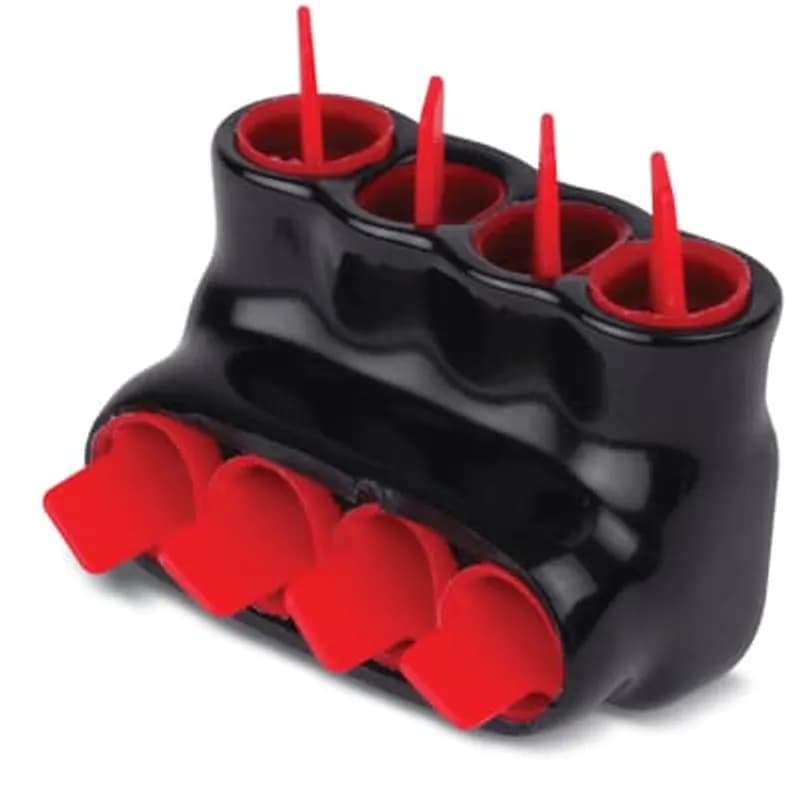

- 4-port configuration with same-side port access
- Constructed from ultraviolet (UV) resistant PVC for outdoor durability
- Accommodates a wide wire range: 250 kcmil to 6 AWG stranded conductors
- Compact dimensions: 4.06" L x 2.13" W x 2.13" H
- Utilizes a 5/16 inch hex size for secure fastening
Specifications
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.4800 L |
Package Weight (Metric) | 0.2180 kg |
IPCS7501
Insulation Piercing Connector 750 MCM - 3/0 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight and corrosion-free.
54740TP
Copper C-Tap for 600V Applications, Wire Range Main: 2-1/0, Branch 2-12, Length 1-1/16 Inches, Height 31/32 Inch, Tin Plated, Die Code 50, Die Color Code Orange
TC-10
Type TC-Aluminum Parallel Tap Insulating Covers for Use with type GP-0 and GT-0 Aluminum Connectors, Black Thermo-Plastic, Rating 90 Degrees C and 600 Volts. Use with 3/4 inch Strip Length. Overall Length 4-31/32 inch, Folded Length 2-1/2 inch.TC-2
Type TC-Aluminum Parallel Tap Insulating Covers for Use with type GP-2 and GT-2 Aluminum Connectors, Black Thermo-Plastic, Rating 90 Degrees C and 600 Volts. Use with 5/8 inch Strip Length. Overall Length 4-1/2 inch, Folded Length 2-1/4 inch.TC-750
Type TC-Aluminum Parallel Tap Insulating Covers for Use with type GP-750 and GT-750 Aluminum Connectors, Black Thermo-Plastic, Rating 90 Degrees C and 600 Volts. Use with 1-1/2 inch Strip Length. Overall Length 9-3/4 inch, Folded Length 4-7/8 inch.
PGH29
Aluminum Type PGH - Center Bolt Parallel Groove Hot Tap Clamps for wire range Main AWG 2/0 Stranded - #8 Solid, Main ASCR 2/0 - #8. Has Oxide Inhibitor.PGH49
Aluminum Type PGH - Center Bolt Parallel Groove Hot Tap Clamps for wire range Main AWG 450 - 4 Solid, Main ASCR 397.5 - 6, 2/0 - 6. Has Oxide Inhibitor.
PGH39
Copper Type PGH - Center Bolt Parallel Groove Hot Tap Clamps for wire range Main AWG 2/0 Stranded - 8 Solid, Main ASCR. For use with copper conductor only. Has Oxide Inhibitor.Frequently Asked Questions
Are the black insulated versions UL listed?
Yes, the black UV-resistant PVC insulated versions of these connectors are UL listed.
What type of insulation do these connectors use?
The connectors feature PVC insulation, available in clear or black, enabling safe installation without tape.
What applications are these connectors suitable for?
These connectors are ideal for both commercial and industrial applications, making field installations easy.
Do these connectors require additional insulation taping?
No, the PVC coating provides built-in insulation, eliminating the need for time-consuming taping during installation.
What functions do these multi-tap connectors perform?
Blackburn insulated aluminum multi-tap connectors facilitate the installation of splices, taps, and terminations in the field.
What is the wire range for the AMTS25064 connector?
The AMTS25064 connector is designed for a wire range of 250 kcmil–#6 Stranded.
What are the dimensions of the AMTS25064?
The AMTS25064 measures 4.06 in length, 2.13 in width, and 2.13 in height.
What screw type does the AMTS25064 use?
The AMTS25064 connector utilizes a 5/16 Hex screw type for secure connections.
What configurations are available for cable blocks?
Cable blocks are available in versatile one-way and two-way configurations, supporting a wide range of cable sizes.
Are these connectors compatible with different conductor materials?
Yes, these connectors are dual-rated for use with both aluminum or copper conductors.
