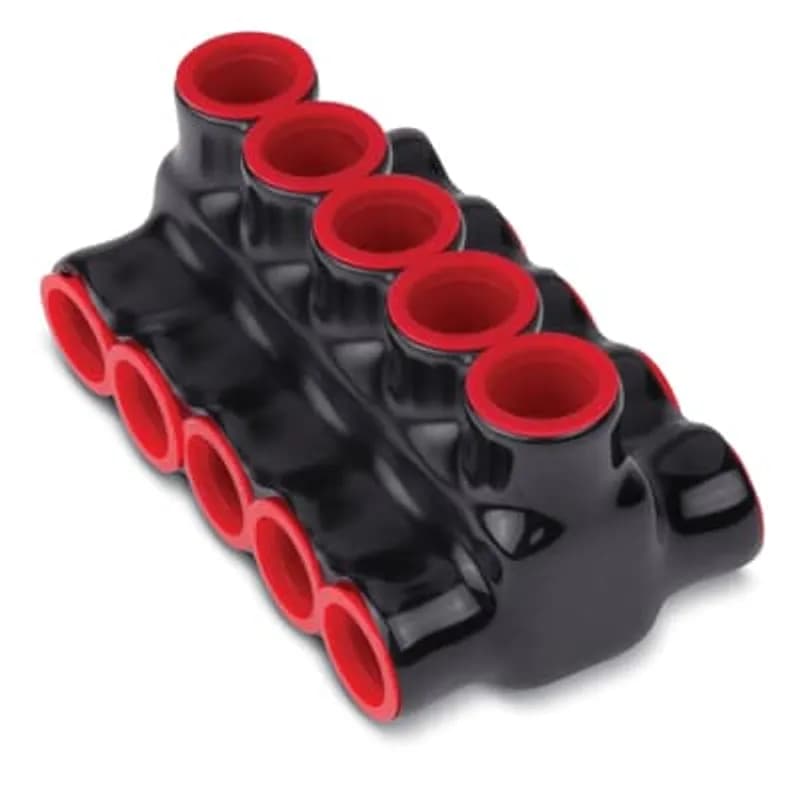

ABB Installation Products AMTD35064 AMT 4 Multi-Port Both Sides PVC Connector, Ultraviolet Resistant, Wire Range 350 kcmil-6…
UPC: 783786524174
Documents & Media
Contact for Pricing
Minimum Qty: 10
Multiplier: 10
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 4-port design for terminating 350 kcmil-6 strand wires on both sides
- Ultraviolet-resistant PVC insulation for outdoor and industrial durability
- Compact dimensions: 4.26" length, 3.0" width, 2.5" height
- 3/8" hex size for secure fastening and tool compatibility
- Black insulation for clear identification and compliance with safety standards
Specifications
Color | Black |
Material | PVC |
Series | AMT 4 Multi-Port Both Sides |
Size | Length 4.26 Inches, Width 3.0 Inches, Height 2.5 Inches |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.7300 L |
Package Weight (Metric) | 0.3310 kg |
AMTD35066
AMT 6 Multi-Port Both Sides PVC Connector, Ultraviolet Resistant, Wire Range 350 kcmil-6 Str, Length 6.30 Inches, Width 3.0 Inches, Height 2.5 Inches, Hex Size 3/8 Inch, Black Insulation
IPCS7501
Insulation Piercing Connector 750 MCM - 3/0 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight and corrosion-free.
AMTS35064
AMT 4 Multi-Port Same Side PVC Connector, Ultraviolet Resistant, Wire Range 350 kcmil-10 Str, Length 4.26 Inches, Width 2.37 Inches, Height 2.50 Inches, Hex Size 5/16 Inch, Black Insulation
AMTS35062
AMT 2 Multi-Port Same Side PVC Connector, Ultraviolet Resistant, Wire Range 350 kcmil-10 Str, Length 2.22 Inches, Width 2.37 Inches, Height 2.50 Inches, Hex Size 5/16 Inch, Black Insulation
AMTS25062
AMT 2 Multi-Port Same Side PVC Connector, Ultraviolet Resistant, Wire Range 250 kcmil-6 Str, Length 2.12 Inches, Width 2.13 Inches, Height 2.13 Inches, Hex Size 5/16 Inch
AMTS4142
AMT 2 Multi-Port Same Side PVC Connector, Ultraviolet Resistant, Wire Range 4-14 Str, Length 1.15 Inches, Width 1.25 Inches, Height 1.25 Inches, Slotted Screw, Black Insulation
AMTD7502505
AMT 5 Multi-Port Both Sides PVC Connector, Ultraviolet Resistant, Wire Range 750-250 kcmil, Length 7.21 Inches, Width 3.13 Inches, Height 2.38 Inches, Hex Size 3/8 Inch, Black Insulation
AMTD7502506
AMT 6 Multi-Port Both Sides PVC Connector, Ultraviolet Resistant, Wire Range 750-250 kcmil, Length 8.62 Inches, Width 3.13 Inches, Height 2.38 Inches, Hex Size 3/8 Inch, Black InsulationFrequently Asked Questions
What are the dimensions of the AMTD35064?
The connector measures 4.26 inches in length, 3.0 inches in width, and 2.5 inches in height.
What wire size range does this connector support?
The AMTD35064 supports a wire range of 350 kcmil to 6 strand.
What hex size is required for installation?
The connector requires a 3/8-inch hex size for fastening.
What is the insulation material of the AMTD35064?
The insulation is made of ultraviolet-resistant PVC.
Is this connector suitable for outdoor use?
Yes, the connector features ultraviolet-resistant PVC insulation for outdoor durability.
Can this connector be used for both sides of wiring?
Yes, the AMTD35064 is designed as a multi-port connector for both sides.
