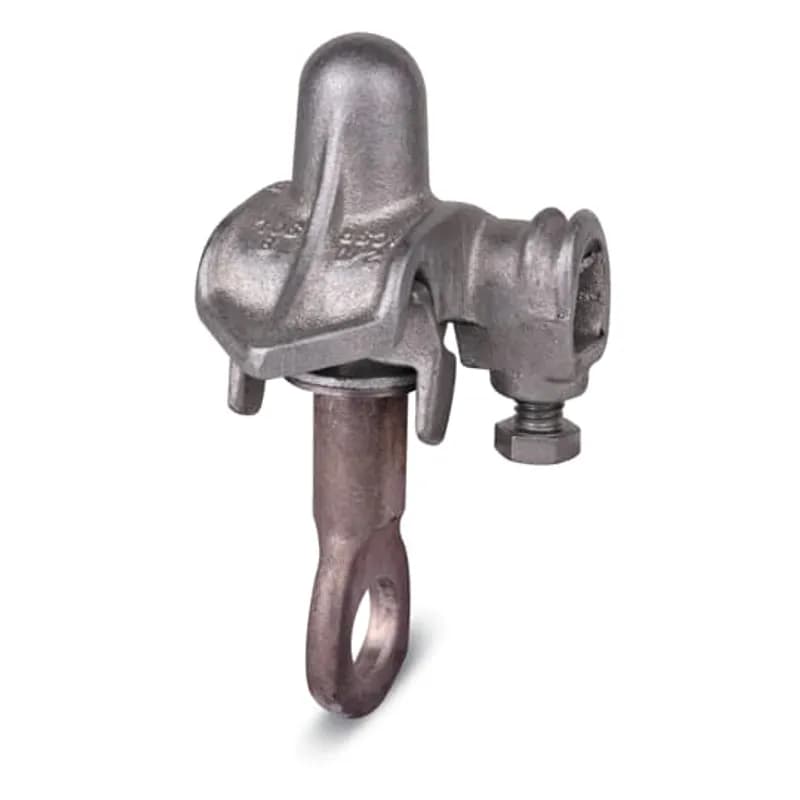

ABB Installation Products PGH29 Aluminum Type PGH - Center Bolt Parallel Groove Hot Tap Clamps for wire range Main AWG…

The PGH29 clamp has dimensions of 23/8 inches (W), 53/4 inches (H), and 23/8 inches (L).

The PGH29 clamp has one center bolt with a diameter of 1/2 inch.

The main conductor diameter for PGH29 ranges from .128 in to .447 in. The tap conductor diameter ranges from .128 in to .398 in.

For PGH29, the tap conductor range is 1/0–#8 ACSR or 1/0 str.–#8 sol. AWG/KCMIL.

For PGH29, the main conductor range is 2/0–#8 ACSR or 2/0 str.–#8 sol. AWG/KCMIL.

Yes, the PGH29 clamp is prefilled with oxide inhibitor to prevent oxidation and keep out moisture, as indicated by the '9' suffix in its catalog number.

The PGH29 clamp has dimensions of 23/8 inches (W), 53/4 inches (H), and 23/8 inches (L).

The PGH29 clamp has one center bolt with a diameter of 1/2 inch.

The main conductor diameter for PGH29 ranges from .128 in to .447 in. The tap conductor diameter ranges from .128 in to .398 in.

For PGH29, the tap conductor range is 1/0–#8 ACSR or 1/0 str.–#8 sol. AWG/KCMIL.
