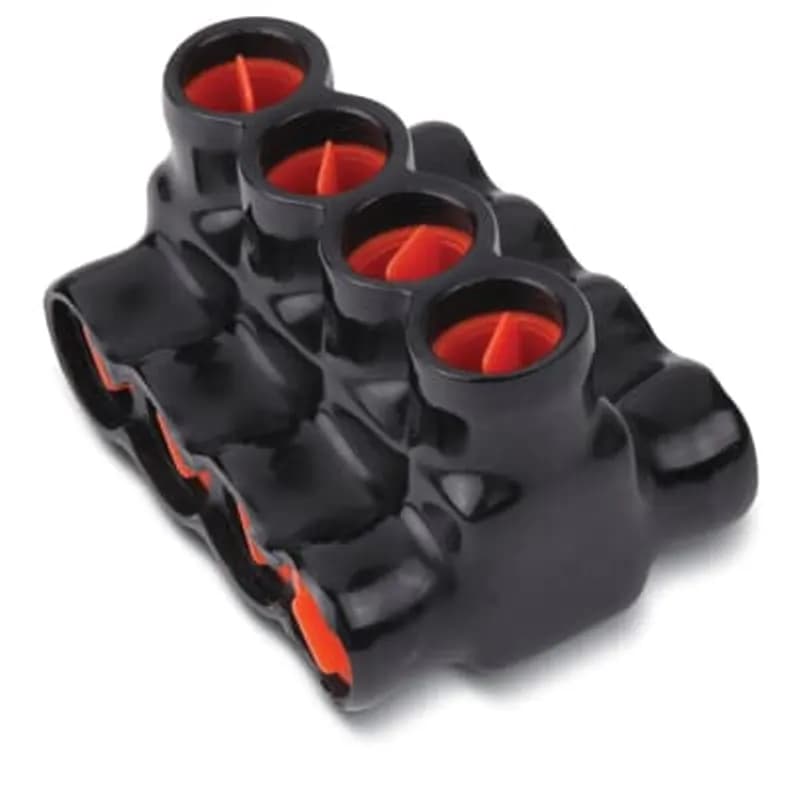

ABB - Installation Products AMTD250104 - AMT Aluminum Multi-Tap Both Sides Connector, 4-Port, PVC Insulated, Wire Range 250MCM-10 Str
ABB - Installation Products

AMTD250104

UPC: 783786259274

Documents & Media
Manufacturer Product Website

Contact for Pricing

Overview

The ABB AMT Aluminum Multi-Tap Connector (SKU: AMTD250104) is a 4-port connector designed for reliable electrical connections. This connector is constructed from aluminum, a material known for its conductivity and corrosion resistance, making it suitable for various electrical infrastructure applications. The connector features PVC insulation, providing electrical isolation and protection for the connections. It is engineered to accommodate a wire range from 250MCM down to 10 AWG stranded copper or aluminum conductors. This broad wire range capability allows for versatile use in splicing, branching, and terminating applications where multiple conductors of varying sizes need to be joined securely. The multi-tap design facilitates efficient distribution of electrical current from a main conductor to multiple branch circuits. The robust construction ensures a secure mechanical grip on the conductors, minimizing the risk of loose connections and potential electrical faults. This connector is a practical solution for utility, industrial, and commercial electrical installations requiring dependable multi-conductor connections. Its design prioritizes ease of installation and long-term performance in electrical systems. UNSPSC Code: 39121428.
  • 4-Port Aluminum Multi-Tap Connector
  • PVC Insulated for Electrical Protection
  • Wire Range: 250MCM - 10 AWG Stranded
  • Suitable for Copper and Aluminum Conductors
  • Reliable Electrical Connections

Specifications

Material
Aluminum, PVC
Poles
4-Port
Series
AMT
Size
250MCM-10 Str
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.5000 L
Package Weight (Metric)
0.2270 kg
