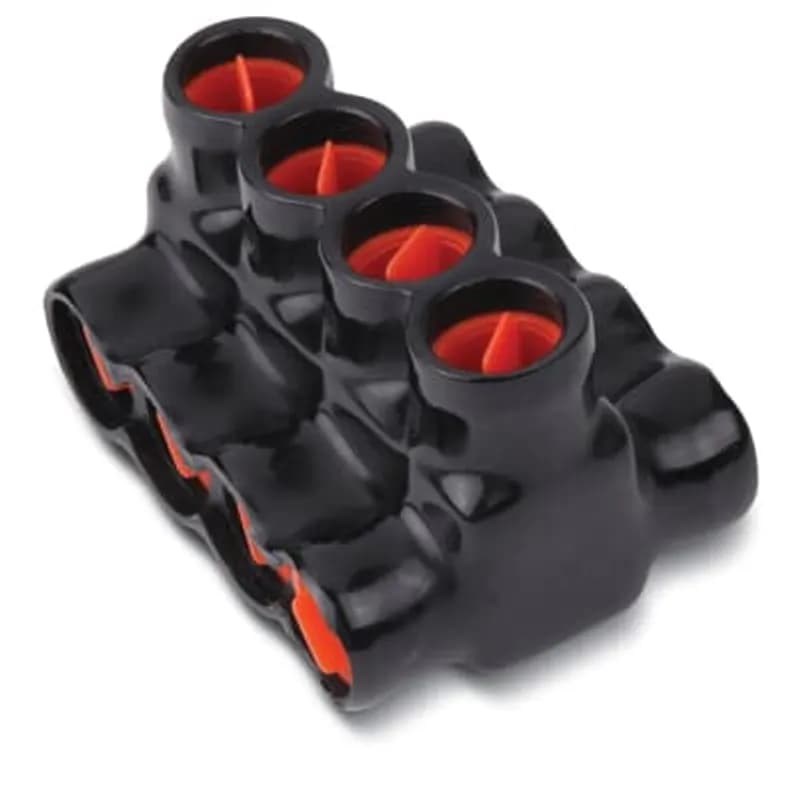

ABB - Installation Products AMTD25064 - AMT 4 Multi-Port Both Sides PVC Connector, Ultraviolet Resistant, Wire Range 250 kcmil-6 Str, Length 4.06 Inches, Width 2.64 Inches, Height 2.13 Inches, Hex Size 5/16 Inch, Black Insulation

ABB Installation Products AMTD25064 AMT 4 Multi-Port Both Sides PVC Connector, Ultraviolet Resistant, Wire Range 250 kcmil-6…

UPC: 783786523054

Documents & Media
BrochureManufacturer Product Website

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB AMT 4 Multi-Port Connector (SKU: AMTD25064) is engineered for reliable electrical connections in demanding industrial applications. Constructed from durable, ultraviolet-resistant PVC, this connector ensures longevity and performance even when exposed to harsh environmental conditions. Its multi-port design allows for connections on both sides, offering flexibility in wiring configurations. The connector accommodates a wire range from 250 kcmil down to 6 Str, making it suitable for a broad spectrum of power distribution and termination tasks. The black insulation provides clear visual identification and adheres to standard electrical color coding practices. Key specifications include: * **Current Rating:** Up to 250 kcmil * **Material:** Ultraviolet Resistant PVC * **Dimensions:** 4.06 inches (Length) x 2.64 inches (Width) x 2.13 inches (Height) * **Connection Type:** Multi-Port, Both Sides * **Hex Size:** 5/16 Inch * **Color:** Black This connector is ideal for use in electrical panels, junction boxes, and other termination points where secure and efficient wire management is critical. The AMT 4 series from ABB Installation Products is designed for ease of installation with a standard 5/16 inch hex drive for secure tightening. Its robust construction and UV resistance make it a dependable choice for outdoor or exposed installations. The compact dimensions ensure it fits within standard electrical enclosures without compromising on capacity. Ensure proper torque is applied during installation for optimal electrical contact and safety. This connector is part of the ABB Installation Products range, known for quality and reliability in electrical infrastructure.
  • ABB AMT 4 Multi-Port Connector, SKU: AMTD25064
  • Durable, Ultraviolet Resistant PVC Construction
  • Accommodates Wire Range: 250 kcmil - 6 Str
  • Dimensions: 4.06" L x 2.64" W x 2.13" H
  • Black Insulation, Multi-Port Both Sides Connection

Specifications

Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.5400 L
Package Weight (Metric)
0.2450 kg
Insulation Piercing Connector 750 MCM - 3/0 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight and corrosion-free.

IPCS7501

Insulation Piercing Connector 750 MCM - 3/0 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight and corrosion-free.
Copper C-Tap for 600V Applications, Wire Range Main: 2-1/0, Branch 2-12, Length 1-1/16 Inches, Height 31/32 Inch, Tin Plated, Die Code 50, Die Color Code Orange

54740TP

Copper C-Tap for 600V Applications, Wire Range Main: 2-1/0, Branch 2-12, Length 1-1/16 Inches, Height 31/32 Inch, Tin Plated, Die Code 50, Die Color Code Orange
AMT 3 Multi-Port Both Sides PVC Connector, Ultraviolet Resistant, Wire Range 250 kcmil-6 Str, Length 3.09 Inches, Width 2.64 Inches, Height 2.13 Inches, Hex Size 5/16 Inch, Black Insulation

AMTD25063

AMT 3 Multi-Port Both Sides PVC Connector, Ultraviolet Resistant, Wire Range 250 kcmil-6 Str, Length 3.09 Inches, Width 2.64 Inches, Height 2.13 Inches, Hex Size 5/16 Inch, Black Insulation
Aluminum Multi-Tap Encapsulated Splice One-Way Configuration, 2 Outlets, Wire Range 350 kcmil-6 Str, Length 4.56 Inches, Width 1.37 Inches, Height 2.12 Inches, Hex Size 5/16 Inch, Clear Insulation

CSR 350

Aluminum Multi-Tap Encapsulated Splice One-Way Configuration, 2 Outlets, Wire Range 350 kcmil-6 Str, Length 4.56 Inches, Width 1.37 Inches, Height 2.12 Inches, Hex Size 5/16 Inch, Clear Insulation
AMT Aluminum Multi-Tap Same Side Connector, 3-Port, PVC Insulated, Wire Range 500MCM-6 Str

AMTD50063

AMT Aluminum Multi-Tap Same Side Connector, 3-Port, PVC Insulated, Wire Range 500MCM-6 Str
AMT Aluminum Multi-Tap Same Side Connector, 2-Port, PVC Insulated, Wire Range 2/0-14 Str, Length 1.61 Inches, Width 1.50 Inches, Height 1.59 Inches, Hex Size 3/16 Inch, Black Insulation

AMT20

AMT Aluminum Multi-Tap Same Side Connector, 2-Port, PVC Insulated, Wire Range 2/0-14 Str, Length 1.61 Inches, Width 1.50 Inches, Height 1.59 Inches, Hex Size 3/16 Inch, Black Insulation
AMT Aluminum Multi-Tap Same Side Connector, 2-Port, PVC Insulated, Wire Range 250 kcmil-10 Str, Length 2.12 Inches, Width 2.13 Inches, Height 2.13 Inches, Hex Size 5/16 Inch

AMT250

AMT Aluminum Multi-Tap Same Side Connector, 2-Port, PVC Insulated, Wire Range 250 kcmil-10 Str, Length 2.12 Inches, Width 2.13 Inches, Height 2.13 Inches, Hex Size 5/16 Inch
AMT Aluminum Multi-Tap Same Side Connector, 2-Port, Black PVC Insulated, Wire Range 350 kcmil-10 Str, Length 2.22 Inches, Width 2.37 Inches, Height 2.50 Inches, Hex Size 5/16 Inch

AMT350

AMT Aluminum Multi-Tap Same Side Connector, 2-Port, Black PVC Insulated, Wire Range 350 kcmil-10 Str, Length 2.22 Inches, Width 2.37 Inches, Height 2.50 Inches, Hex Size 5/16 Inch

Frequently Asked Questions

Are the black UV-resistant PVC insulated versions listed?

Yes, the black UV-resistant PVC insulated versions are UL® listed.

What standards do the clear PVC insulated versions meet?

The clear PVC insulated versions meet or exceed ANSI C119.4 specifications.

Are these connectors compatible with different conductor materials?

Yes, these connectors are dual-rated for use with both aluminum or copper conductors.

Do these connectors require tape for installation?

No, the PVC insulation enables safe and time-saving installation without the need for tape.

What are the insulation options for these connectors?

The connectors are available with either clear or black PVC insulation.

What type of screw does AMTD25064 use?

The AMTD25064 connector uses a 5/16 Hex screw type for installation.

What are the dimensions of the AMTD25064 connector?

The AMTD25064 connector has a length of 4.06 in, a width of 2.64 in, and a height of 2.13 in.

What wire sizes does AMTD25064 support?

The AMTD25064 connector supports stranded wires ranging from 250 kcmil down to #6 AWG.

What is the product type of AMTD25064?

AMTD25064 is a two-way configuration insulated aluminum multi-tap cable block.

What is the product type of AMTD25064?

AMTD25064 is a two-way configuration insulated aluminum multi-tap cable block.
