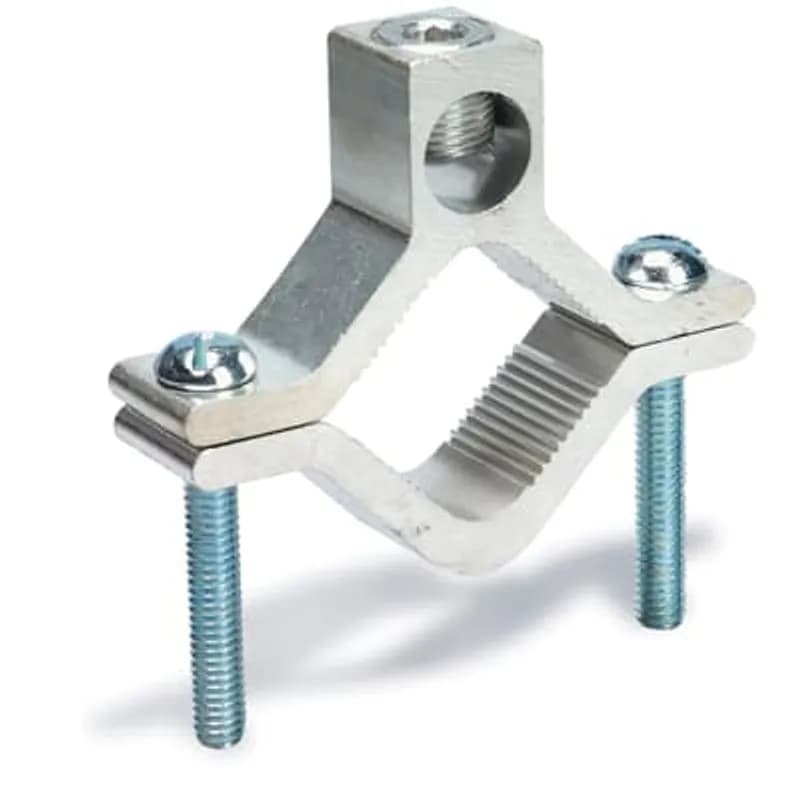

ABB - Installation Products AJ-2 - Aluminum Dual-Rated Waterpipe Ground Clamp for Wire Range 6 - 250, Water Pipe Size 1 1/2 - 2
More images
ABB - Installation Products

AJ-2

UPC: 783786802982

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Overview

The ABB AJ-2 is a dual-rated aluminum ground clamp designed for secure electrical grounding connections to water pipes. This clamp is engineered for compatibility with a wire range of 6 to 250 AWG, accommodating a broad spectrum of grounding conductor sizes. It is specifically designed for water pipe sizes ranging from 1 1/2 inches to 2 inches in diameter, ensuring a precise and reliable fit for common plumbing infrastructure. The dual-rated construction signifies its suitability for both copper and aluminum conductors, offering versatility in installation scenarios. Manufactured by ABB - Installation Products, the AJ-2 provides a robust mechanical connection essential for maintaining system integrity and safety. Its aluminum construction offers good corrosion resistance in typical water pipe environments. This clamp is a fundamental component for ensuring effective grounding paths, critical for protecting electrical systems and personnel from fault currents and static discharge. The UNSPSC code for this product is 39121613, classifying it within the electrical grounding and bonding equipment category. ABB's commitment to quality in their Installation Products line ensures dependable performance for this essential grounding accessory. The AJ-2 is suitable for applications requiring a secure and compliant ground connection to water pipe systems.
  • Dual-rated for copper and aluminum conductors
  • Accommodates wire range 6 - 250 AWG
  • Designed for water pipe sizes 1 1/2" - 2"
  • Durable aluminum construction
  • Manufacturer: ABB - Installation Products

Specifications

Conductor Material
Aluminum
Insulation
No
Special Features
Tin plated for corrosion resistance
Standard
UL E3060
Type
Ground Clamp
Package Dimensions (L x W x H)
7 IN x 6.4 IN x 5.2 IN
Package Dimensions (L x W x H)
17.78 cm x 16.256 cm x 13.208 cm
Package Weight (Imperial)
0.3400 L
Package Weight (Metric)
0.1540 kg
