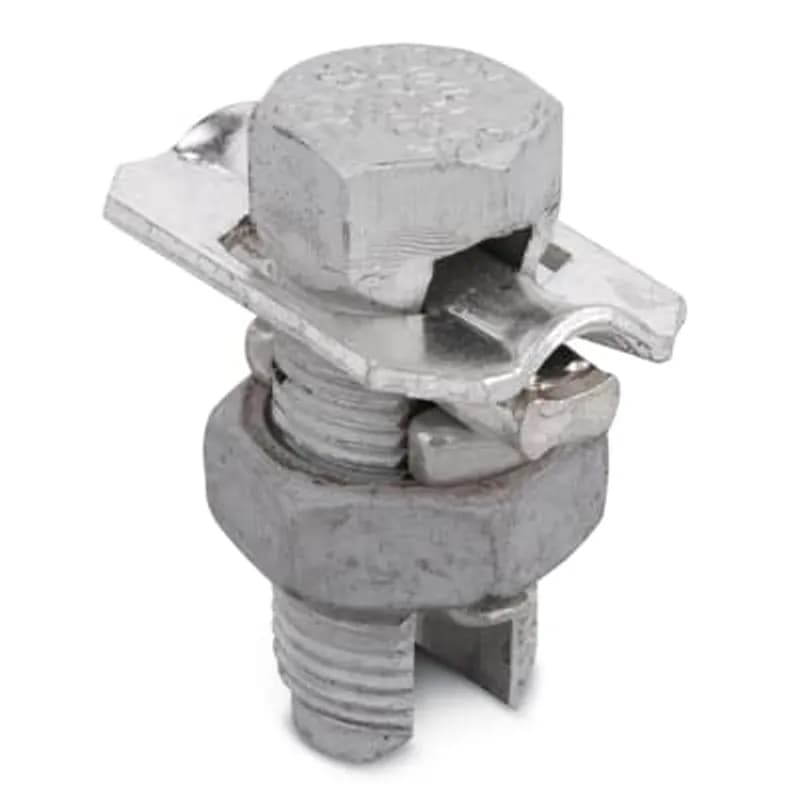

ABB - Installation Products 10AAW - Type AAW Aluminum Split-Bolt Connector with Spacer and Washer for Use on Aluminum, ASCR Conductors. Conductor Range for Equal Main and Tap 2/0 Str.-2 Sol.

ABB Installation Products 10AAW Type AAW Aluminum Split-Bolt Connector with Spacer and Washer for Use on Aluminum, ASCR…

UPC: 783786855025

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 250

Multiplier: 250

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 10AAW is a Type AAW Aluminum Split-Bolt Connector designed for reliable connections on aluminum and ASCR conductors. This connector features an integrated spacer and washer, ensuring proper assembly and optimal electrical contact. It is specifically engineered for applications requiring secure and durable connections in electrical distribution and transmission systems. The conductor range for equal main and tap connections is 2/0 Stranded to 2 Solid aluminum conductors. This product, identified by SKU 10AAW and manufactured by ABB - Installation Products, is built to facilitate efficient and safe conductor joining. Its construction prioritizes electrical integrity and mechanical strength for long-term performance in various environmental conditions. The split-bolt design allows for a secure grip on conductors, minimizing the risk of loosening over time. The inclusion of a spacer and washer simplifies installation and ensures consistent pressure application, crucial for maintaining low resistance connections. This connector is a practical component for utility work, industrial installations, and any scenario involving aluminum conductor splicing. The UNSPSC code for this product is 39121408, categorizing it within electrical connectors.
  • Type AAW Aluminum Split-Bolt Connector
  • Includes Spacer and Washer for optimal assembly
  • Designed for Aluminum and ASCR conductors
  • Conductor Range: 2/0 Stranded to 2 Solid
  • Manufacturer: ABB - Installation Products

Specifications

Application
Splicing, tapping or terminating conductors in power and grounding electrical connection
Color
Metallic
Finish
Tinned
Material
Aluminum
Special Features
Bolt, nut, pressure bar and contoured spacer of aluminum alloy. Large contoured spaces provides wide separation
Standard
UL E9809
Type
Split-Bolt
Package Dimensions (L x W x H)
6.5 IN x 5 IN x 3.37 IN
Package Dimensions (L x W x H)
16.51 cm x 12.7 cm x 8.5598 cm
Package Weight (Imperial)
0.1700 L
Package Weight (Metric)
0.0770 kg
