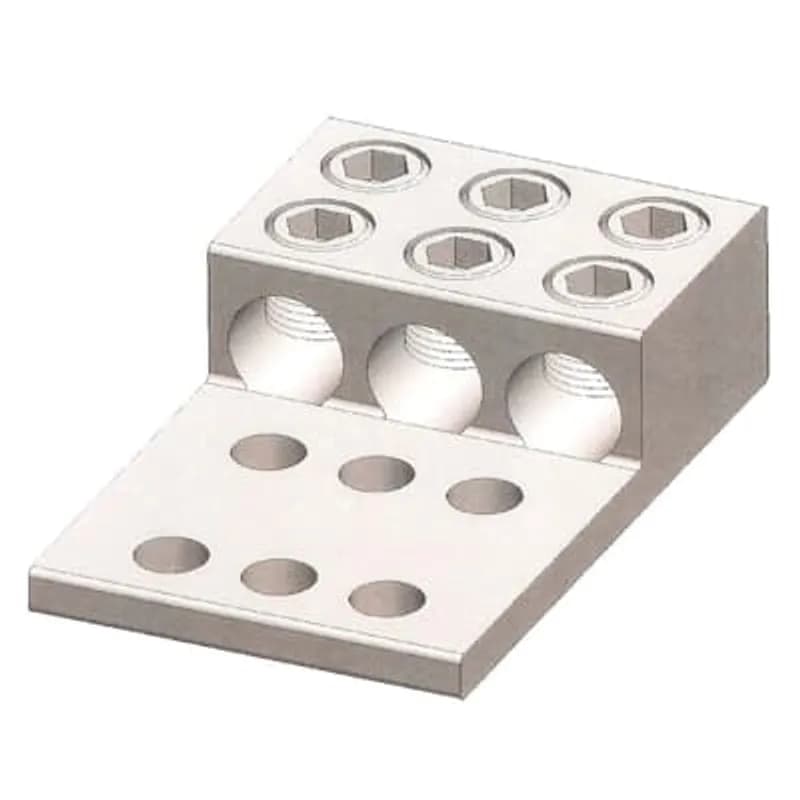

ABB Installation Products ADR60-34D Type ADR-ALCUL Three-Conductor, Six-Hole Mount for Conductor Range Max 600 kcmil, Min 2…
UPC: 783786610365
Contact for Pricing
Minimum Qty: 2
Multiplier: 2
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Three-conductor design for multi-wire terminations
- Six-hole mount configuration for secure installation
- Supports conductor sizes from 2 AWG to 600 kcmil (stranded Cu/Al)
- Part of ABB Installation Products catalog for electrical infrastructure
- Optimized for industrial and commercial power distribution systems
Specifications
Finish | Tinned |
Material | Aluminum |
Mounting Type | Six-Hole Mount |
Number of Conductors | 3 |
Number of Mounting Holes | 6 |
Poles | 3 |
Series | Type ADR-ALCUL |
Size | Max 600 kcmil, Min 2 Str. |
Special Features | Easy Installation - no special tools required |
Standard | UL E9809 |
Type | Dual-Rated Mechanical Connector |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.1400 L |
Package Weight (Metric) | 0.5170 kg |
TS350-2
2 Port Aluminum Dual Rated Transformer Stud Connector 350 MCM -6 AWG with 5/8" Stud Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.
PCSB4-3S-12Y
The PCSB4-3S-12Y Multi-Tap Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.
4CA
Type CA Aluminum Split-Bolt Connector with Spacer and Washer for Use on Copper, Aluminum Conductors. Conductor Range for Equal Main and Tap 2 Sol.-4 Sol.
2B500W
Copper Type 2BW - Two-Bolt Connector with Spacer for Wire Range Main: 300 - 500 kcmil Tap: 4 Sol. - 500 kcmil , Bolt Size 3/4
TGC
Copper Beam Grounding Clamp for Wire Range 14 - 6 Copper for grounding trailer frames, cable trays, CATV and telephone pedestals, Slotted Head Screw
SP3DL-WN
Long Stud Double Service Post Connectors for Conductors 3 - 10 Stranded, 2 - 10 Solid, Stud Size 3/8 - 16 x 1 1/8, with Nut and WasherSP5DL-N
Long Stud Double Service Post Connectors for Conductors 1/0 - 2 Stranded, 2 Solid, Stud Size 1/2 - 13 x 1 1/4, with NutHow to Install Blackburn Aluminum Dual Rated Connectors
This guide provides step-by-step instructions for safely installing Blackburn Aluminum Dual Rated Connectors with aluminum or copper conductors, including preparation, wiring, and torquing procedures.
Estimated time: 30m
Tools needed:
Wire strippers, Wire brush, Torque wrench
Supplies needed:
Aluminum or copper conductors, Blackburn Contax Type CT or Weaver Type CP oxide inhibiting compound, Mounting hardware (bolts), Flat washers (recommended), Belleville washers (recommended)
- Verify Conductor Compatibility
CAUTION: De-energize the system before installing connectors. Check the conductor size marked on the connector to ensure it is the correct connector for the conductor size you intend to use.
- Prepare the Conductor
Carefully strip the conductor insulation to the length of the connector barrel, avoiding any damage to the conductor strands. Wire brush the conductor thoroughly. If using an aluminum conductor, apply Blackburn Contax Type CT or Weaver Type CP oxide inhibiting compound to the conductor.
- Insert Conductor
Fully insert the prepared conductor into the connector. If you applied oxide inhibitor, wipe off any excess compound from the conductor and connector.
- Tighten Connector Setscrew
Each connector has a specific tightening torque range. Once the proper connector has been selected, apply the recommended tightening torque to the setscrew in accordance with TABLE 1, based on the connector's maximum conductor size rating. For example, connectors rated for 10-14 AWG require 35 In.-Lbs., 8 AWG require 40 In.-Lbs., 4-6 AWG require 45 In.-Lbs., and 2/0-14 AWG require 50 In.-Lbs.
- Apply Inhibitor to Contact Surface
Prior to mounting the connector, apply Blackburn Contax Type CT or Weaver Type CP oxide inhibiting compound to the flat contact surface of the connector.
- Torque Mounting Hardware
Mount the connector using appropriate mounting hardware. Torque the mounting hardware to the values shown in TABLE 2, based on the bolt diameter and material (aluminum or steel). For optimal installation practice, use flat and Belleville washers in conjunction with the mounting hardware.
