ABB - Installation Products 4CA - Type CA Aluminum Split-Bolt Connector with Spacer and Washer for Use on Copper, Aluminum Conductors. Conductor Range for Equal Main and Tap 2 Sol.-4 Sol.
ABB - Installation Products

4CA

UPC: 783786200542

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 100

Multiplier: 100

*Contact for lower quantities*

Overview

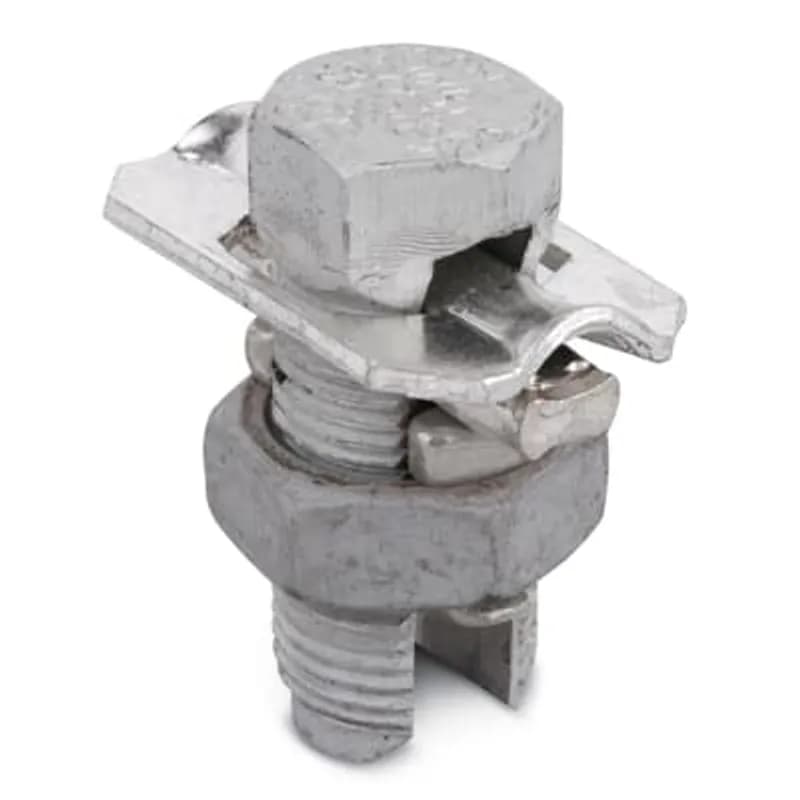

The ABB Type CA Aluminum Split-Bolt Connector (SKU: 4CA) is a UL-listed split-bolt connector designed for reliable electrical connections between copper and aluminum conductors. This connector accommodates equal main and tap conductors in the 2 AWG to 4 AWG range, making it suitable for branch circuit taps, service entrances, and distribution panels where conductor compatibility is critical. The split-bolt design allows for tool-free installation, reducing labor time while ensuring a secure mechanical and electrical connection. The integrated spacer and washer maintain proper conductor spacing and prevent over-tightening, reducing the risk of damage to soft aluminum conductors. Constructed from corrosion-resistant aluminum alloy, the Type CA connector resists environmental degradation in outdoor and industrial environments. The connector meets UL 486A-B standards for aluminum-to-copper connections, ensuring compliance with NEC requirements for dissimilar metal terminations. Common applications include residential and commercial electrical systems, utility connections, and industrial control panels where aluminum conductors are prevalent. The compact design allows for installation in tight spaces, and the tinned copper alloy contact surfaces enhance conductivity and reduce oxidation at the connection point.
  • UL 486A-B listed for aluminum-to-copper connections
  • Accommodates 2 AWG to 4 AWG conductors (equal main and tap)
  • Includes spacer and washer for proper conductor spacing
  • Corrosion-resistant aluminum alloy construction
  • Tool-free installation with tinned copper alloy contact surfaces

Specifications

Application
Splicing, tapping or terminating conductors in power and grounding electrical connection
Color
Metallic
Material
Aluminum
Special Features
Bolt, nut, pressure bar and contoured spacer of aluminum alloy. Pressure bar and contoured spacer made of electrolytic copper. Spacer is completely tin plated
Standard
UL E9809
Type
Split-Bolt
Package Dimensions (L x W x H)
7.2 IN x 6.2 IN x 4.9 IN
Package Dimensions (L x W x H)
18.288 cm x 15.748 cm x 12.446 cm
Package Weight (Imperial)
0.0800 L
Package Weight (Metric)
0.0360 kg
6 Port Aluminum Dual Rated Transformer Connector 750 MCM - 250 MCM Transformer Connectors are made from 6061T-6 aluminum alloy. They are electro-tin plated for low contact resistance. Two NEMA 1/2" holes for easy attachment. Rated 600 volts.

STL750-6

6 Port Aluminum Dual Rated Transformer Connector 750 MCM - 250 MCM Transformer Connectors are made from 6061T-6 aluminum alloy. They are electro-tin plated for low contact resistance. Two NEMA 1/2" holes for easy attachment. Rated 600 volts.
Type AAW Aluminum Split-Bolt Connector with Spacer and Washer for Use on Aluminum, ASCR Conductors. Conductor Range for Equal Main and Tap 2/0 Str.-2 Sol.

10AAW

Type AAW Aluminum Split-Bolt Connector with Spacer and Washer for Use on Aluminum, ASCR Conductors. Conductor Range for Equal Main and Tap 2/0 Str.-2 Sol.
Thread-forming grounding screw, #12-24 x 1/2".

RGTS-CY

Thread-forming grounding screw, #12-24 x 1/2".
Copper Type 2BW - Two-Bolt Connector with Spacer for Wire Range Main: 300 - 500 kcmil Tap: 4 Sol. - 500 kcmil , Bolt Size 3/4

2B500W

Copper Type 2BW - Two-Bolt Connector with Spacer for Wire Range Main: 300 - 500 kcmil Tap: 4 Sol. - 500 kcmil , Bolt Size 3/4
Copper Beam Grounding Clamp for Wire Range 14 - 6 Copper for grounding trailer frames, cable trays, CATV and telephone pedestals, Slotted Head Screw

TGC

Copper Beam Grounding Clamp for Wire Range 14 - 6 Copper for grounding trailer frames, cable trays, CATV and telephone pedestals, Slotted Head Screw
Long Stud Double Service Post Connectors for Conductors 3 - 10 Stranded, 2 - 10 Solid, Stud Size 3/8 - 16 x 1 1/8, with Nut and Washer

SP3DL-WN

Long Stud Double Service Post Connectors for Conductors 3 - 10 Stranded, 2 - 10 Solid, Stud Size 3/8 - 16 x 1 1/8, with Nut and Washer
Long Stud Double Service Post Connectors for Conductors 1/0 - 2 Stranded, 2 Solid, Stud Size 1/2 - 13 x 1 1/4, with Nut

SP5DL-N

Long Stud Double Service Post Connectors for Conductors 1/0 - 2 Stranded, 2 Solid, Stud Size 1/2 - 13 x 1 1/4, with Nut
Tin Plated Aluminum Wire Connector, #6 - 500 kcmil, Dual Rated Connector Copper and Aluminum 90 Degree C, Torque 375 inch/pounds. CSA/UL listed. Length 3-1316 inch, Height2-13/16 inch, Width 2-1/8 inch. Pad Thickness 1/2 inch with One 1/2 inch Diameter Hole. Two Taps - 13/16-16 UNF-3B. Includes Two Tin Plated Aluminum Set Screws 13/16-16 x 1 inch long

AX 2-500-500 V1

Tin Plated Aluminum Wire Connector, #6 - 500 kcmil, Dual Rated Connector Copper and Aluminum 90 Degree C, Torque 375 inch/pounds. CSA/UL listed. Length 3-1316 inch, Height2-13/16 inch, Width 2-1/8 inch. Pad Thickness 1/2 inch with One 1/2 inch Diameter Hole. Two Taps - 13/16-16 UNF-3B. Includes Two Tin Plated Aluminum Set Screws 13/16-16 x 1 inch long
