ABB - Installation Products TGC - Copper Beam Grounding Clamp for Wire Range 14 - 6 Copper for grounding trailer frames, cable trays, CATV and telephone pedestals, Slotted Head Screw

ABB Installation Products TGC Copper Beam Grounding Clamp for Wire Range 14 - 6 Copper for grounding trailer frames…

UPC: 783786037711


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 25

Multiplier: 25

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

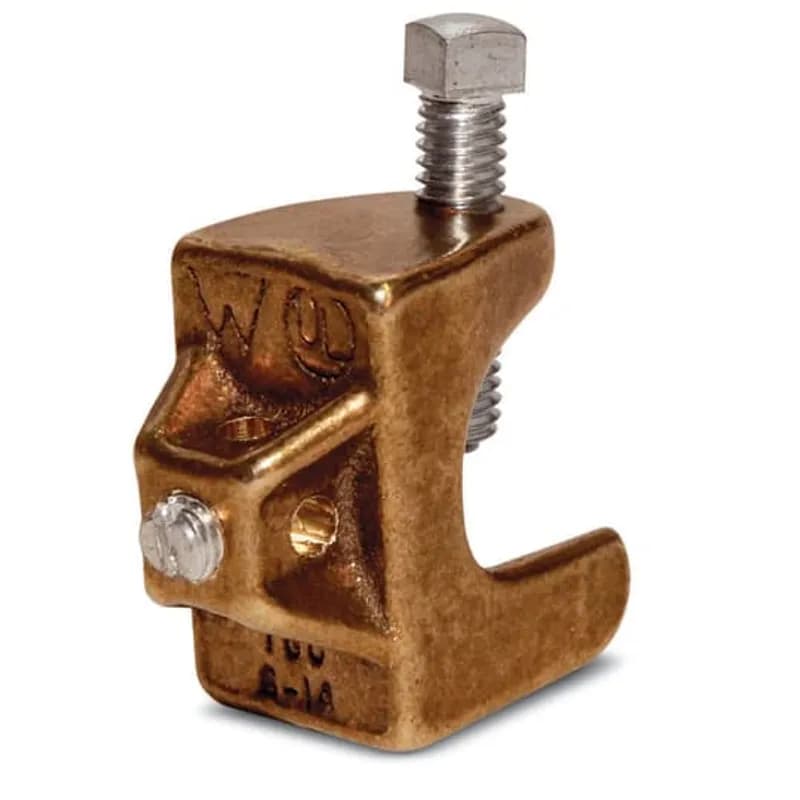

The ABB TGC Beam Grounding Clamp is engineered for reliable grounding connections on metal frames, cable trays, trailer frames, CATV pedestals, and telephone pedestals. This clamp is designed to connect #6 to #14 AWG solid copper conductors, ensuring a secure electrical path where grounding continuity is essential. The TGC features a high-strength copper alloy construction (91% nominal) that provides superior conductivity, durability, and corrosion resistance without the need for additional plating. The anchoring bolt is designed to penetrate paint or metal oxide layers on the mounting surface, establishing a robust bond. Installation is facilitated by a 7/16" silicon bronze hex-head bolt, which can be installed using a cam-wrench, socket, or crescent wrench. For situations requiring a tighter ground connection, the tin-plated square-head bolt allows for installation with pliers. A key design advantage of the TGC clamp is its four directional wire access points, which minimize the need to bend the ground wire during installation. Furthermore, the beam and ground wire connections can be tightened independently. This feature allows for the ground wire to be installed on the clamp prior to mounting the clamp onto the metal frame, reducing overall installation time and maintaining the integrity of the ground circuit even during maintenance. Specifications: - Manufacturer: ABB Installation Products - SKU: TGC - Material: Copper alloy (91% nominal), Tin-plated steel bolt - Conductor Size: #6 to #14 AWG solid copper - Mounting Type: Screw - Bolt Type: 7/16" silicon bronze hex-head bolt and tin-plated square-head bolt - Listing: Listed to UL® 467
  • Connects #6 to #14 AWG solid copper conductor to metal frames.
  • High-strength copper alloy (91% nominal) for conductivity and corrosion resistance.
  • Anchoring bolt penetrates paint and metal oxide layers for a secure bond.
  • Four directional wire access points minimize ground wire bending.
  • UL® 467 Listed for grounding applications.
