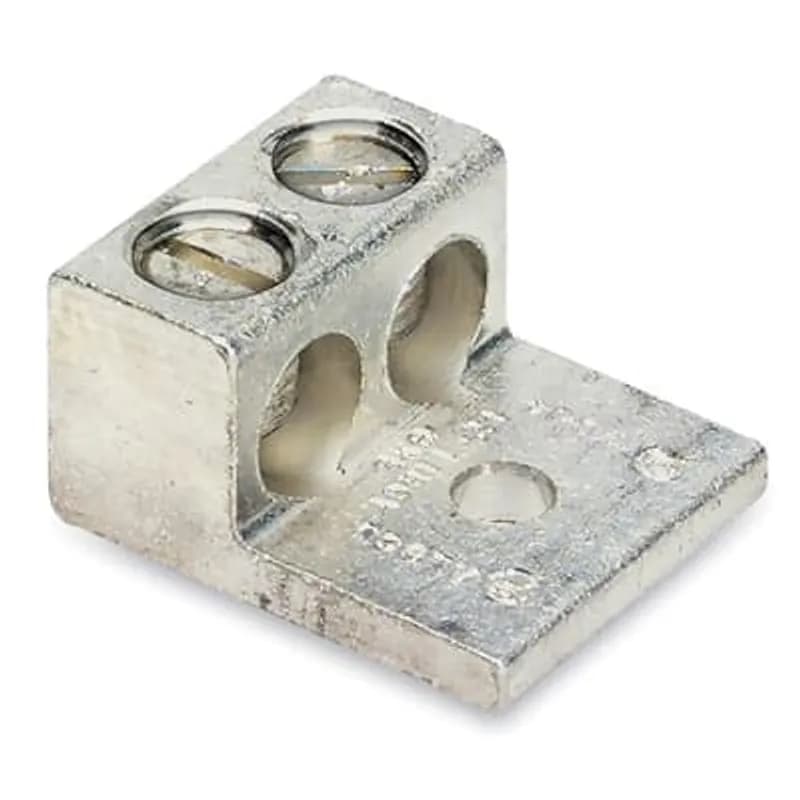

ABB Installation Products ADR60-21AR Type ADR-ALCUL Anti-Rotational Two-Conductor, One-Hole Mount, Conductor Range Max 600…
UPC: 783786149780
Documents & Media
Contact for Pricing
Minimum Qty: 4
Multiplier: 4
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Dual-rated for aluminum and copper conductors (2 AWG to 600 MCM)
- Anti-rotational design prevents loosening from vibration or mechanical stress
- Single-hole mounting with 1/2" bolt hole for secure installation
- Tin-plated aluminum construction for corrosion resistance and conductivity
- UL 486B and AL9CU listed for industrial power distribution applications
Specifications
Finish | Tinned |
Material | Aluminum |
Material | Tin Plated |
Mounting Hole Spacing | 1/2 in |
Mounting Type | One-hole mount |
Number of Conductors | 2 |
Number of Mounting Holes | 1 |
Poles | 2 |
Series | ADR-ALCUL |
Size | 600 MCM Max / 2 AWG Min |
Special Features | Unique bottom rib keeps the conductor from turning. Eliminates the need for excessive torque, which can damage large conductors |
Standard | UL E9809 |
Type | Anti-Rotational Mechanical Connector |
Package Dimensions (L x W x H) | 5.3 IN x 3.8 IN x 2.8 IN |
Package Dimensions (L x W x H) | 13.462 cm x 9.652 cm x 7.112 cm |
Package Weight (Imperial) | 0.5200 L |
Package Weight (Metric) | 0.2360 kg |
TS350-2
2 Port Aluminum Dual Rated Transformer Stud Connector 350 MCM -6 AWG with 5/8" Stud Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.

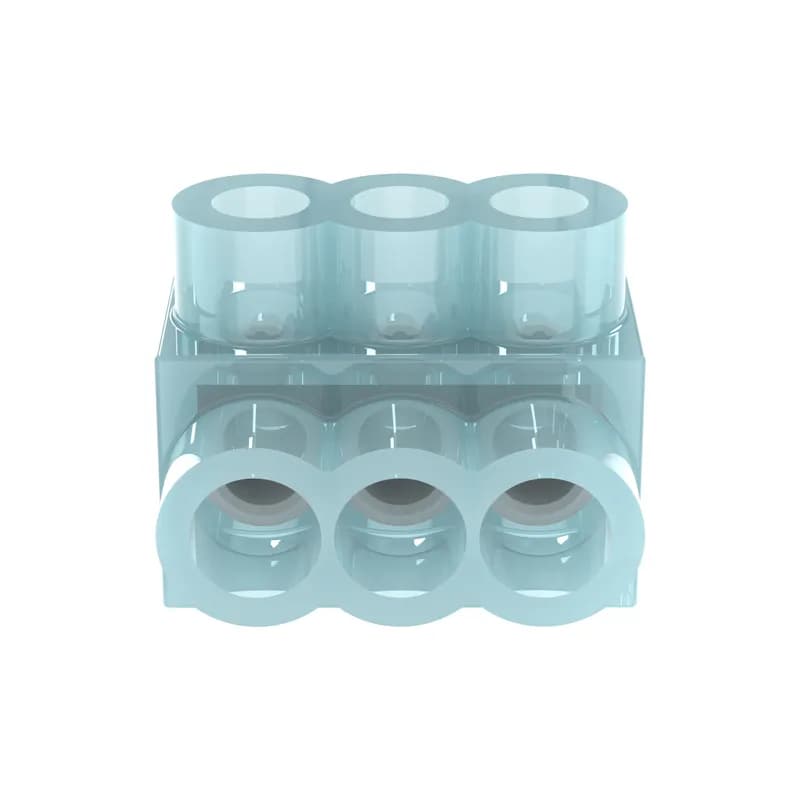

PCSB4-3S-12Y
The PCSB4-3S-12Y Multi-Tap Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.
622ML-SK3
Transformer Lug Kits - Mechanical For KVA Size 100-167 10, 150-300 30 Aluminum Wire Range 6-250, 350-800
B 250-2-165
Copper Wire Connector, #6 -250 kcmil. UL listed. Length 2.41 inch x 7/8 inch x 13/16 inch. Tapped 3/4-16 UNF-2B x .657 inch deep. Includes Two Stainless Steel Screws.
ADR6004-3
Type ADR-ALCUL Single-Conductor, One-Hole Mount for Conductor Range Max 600 kcmil (2) 250 kcmil, Min 4 Str. (2) 1/0 Str.
IPC1102
Type IPC - Talon Insulation Piercing Connector for Conductor Range Main: 1/0-8 AWG, 50-6 MM sq., Tap: 2-8 AWG, 35-6 MM sq.
Frequently Asked Questions
What is the maximum conductor size supported?
The ADR60-21AR supports a maximum conductor size of 600 MCM.
What is the minimum conductor size for this connector?
The minimum conductor size supported by the ADR60-21AR is 2 AWG.
What type of mounting does this connector use?
This connector features a one-hole mount design.
What is the bolt hole size for mounting?
The bolt hole for mounting is 1/2 inch.
What material is the connector made of?
The connector is tin plated.
How many conductors can this connector accommodate?
This is a two-conductor connector.
What is the purpose of the anti-rotational feature?
The anti-rotational feature prevents the conductor from rotating, ensuring a stable and secure connection.
How to Install Blackburn Aluminum Dual Rated Connectors
This guide provides step-by-step instructions for safely installing Blackburn Aluminum Dual Rated Connectors with aluminum or copper conductors, including conductor preparation, oxide inhibitor application, and proper torque specifications.
Estimated time: 30m
Tools needed:
Wire strippers, Wire brush, Torque wrench
Supplies needed:
Blackburn Contax Type CT or Weaver Type CP oxide inhibiting compound, Aluminum Dual Rated Connector, Mounting hardware, Flat washers (recommended), Belleville washers (recommended)
- De-energize Before Installation
CAUTION: De-energize the electrical system completely before beginning any installation procedures to prevent electric shock or injury.
- Verify Connector and Conductor Size
Check the conductor size marked on the connector to ensure it is the correct connector for the conductor size you intend to use.
- Strip Conductor Insulation
Carefully strip the conductor insulation to the length of the connector barrel, avoiding any damage to the conductor strands during the process.
- Prepare Conductor and Apply Oxide Inhibitor
Wire brush the conductor thoroughly. If using an aluminum conductor, apply Blackburn Contax Type CT or Weaver Type CP oxide inhibiting compound. Fully insert the conductor into the connector and wipe off any excess oxide inhibitor.
- Torque Connector Setscrew
Determine the maximum conductor size the connector accommodates and apply the recommended tightening torque to the setscrew in accordance with TABLE 1 (e.g., 35 In.-Lbs. for 10-14 AWG, 40 In.-Lbs. for 8 AWG, 45 In.-Lbs. for 4-6 AWG, 50 In.-Lbs. for 2/0-14, 275 In.-Lbs. for 250-6, 375 In.-Lbs. for 350-10, 375 In.-Lbs. for 500-6, 375 In.-Lbs. for 750-1/0).
- Apply Oxide Inhibitor to Contact Surface
Prior to mounting the connector, apply Blackburn Contax Type CT or Weaver Type CP oxide inhibiting compound to the flat contact surface of the connector.
- Torque Mounting Hardware
Torque the mounting hardware to the values shown in TABLE 2 (e.g., for Aluminum: 1/4 inch bolt 48 In.-Lbs., 5/16 inch bolt 96 In.-Lbs., 3/8 inch bolt 156 In.-Lbs., 7/16 inch bolt 240 In.-Lbs., 1/2 inch bolt 300 In.-Lbs., 5/8 inch bolt 480 In.-Lbs.; for Steel: 1/4 inch bolt 72 In.-Lbs., 5/16 inch bolt 132 In.-Lbs., 3/8 inch bolt 228 In.-Lbs., 7/16 inch bolt 360 In.-Lbs., 1/2 inch bolt 480 In.-Lbs., 5/8 inch bolt 660 In.-Lbs.). For good installation practice, use flat and Belleville washers in conjunction with the mounting hardware.
