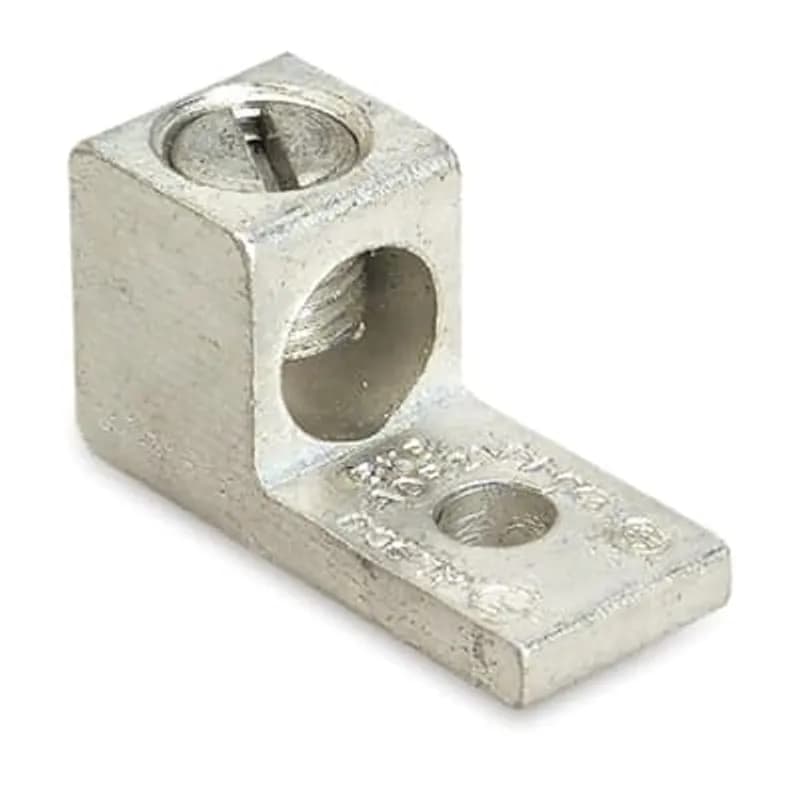

ABB - Installation Products ADR35AR - Type ADR-ALCUL Anti-Rotational Single-Conductor, One-Hole Mount, Conductor Range Max 350 MCM, Min 6 AWG, 5/16 Inch Bolt Hole, Tin Plated

ABB Installation Products ADR35AR Type ADR-ALCUL Anti-Rotational Single-Conductor, One-Hole Mount, Conductor Range Max 350…

UPC: 783786149810


Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 120

Multiplier: 120

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB ADR35AR Type Anti-Rotational Single-Conductor Lug (SKU: ADR35AR) is a mechanical connector designed for secure, vibration-resistant electrical terminations in industrial power distribution systems. This one-hole mount lug accommodates conductor sizes from 6 AWG to 350 MCM, making it suitable for both aluminum and copper conductors. The tin-plated copper construction ensures low contact resistance and corrosion resistance, critical for long-term reliability in harsh environments. Key features include a 5/16-inch bolt hole for standard hardware mounting and an anti-rotational design that prevents lug spinning during installation. This design eliminates the risk of loose connections caused by vibration or mechanical stress, a common failure point in standard lugs. Applications include motor connections, power distribution panels, transformers, and other critical electrical infrastructure where stable, high-current terminations are required. The ADR35AR is part of ABB's ALCÜL™ series of mechanical connectors, known for dual-rated performance with aluminum and copper conductors. For larger conductor sizes (600 MCM and above), ABB offers variants with double rows of set screws for enhanced clamping force. This lug is ideal for environments subject to mechanical vibration, temperature cycling, or corrosive conditions, where maintaining electrical integrity is essential.
  • Accommodates conductor sizes from 6 AWG to 350 MCM (aluminum or copper)
  • One-hole mount with 5/16-inch bolt hole for standard hardware
  • Anti-rotational design prevents lug spinning during installation
  • Tin-plated copper construction for corrosion resistance and low contact resistance
  • Designed for single-conductor industrial applications

Specifications

Finish
Tinned
Material
Aluminum
Mounting Hole Spacing
5/16 in
Number of Conductors
1
Number of Mounting Holes
1
Special Features
Unique bottom rib keeps the conductor from turning. Eliminates the need for excessive torque, which can damage large conductors
Standard
UL E9809
Type
Anti-Rotational Mechanical Connector
Package Dimensions (L x W x H)
4.2 IN x 3.1 IN x 2.8 IN
Package Dimensions (L x W x H)
10.668 cm x 7.874 cm x 7.112 cm
Package Weight (Imperial)
0.1300 L
Package Weight (Metric)
0.0590 kg
2 Port Aluminum Dual Rated Transformer Stud Connector 350 MCM -6 AWG with 5/8" Stud Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.

TS350-2

2 Port Aluminum Dual Rated Transformer Stud Connector 350 MCM -6 AWG with 5/8" Stud Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.
The PCSB4-3S-12Y Multi-Tap Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.

PCSB4-3S-12Y

The PCSB4-3S-12Y Multi-Tap Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.
AL 1CNDTR 1HOLE MOUNT 6-350STR TP

ADR35

AL 1CNDTR 1HOLE MOUNT 6-350STR TP
Type L - Copper Tin-Plated Single Conductor, One-Hole Mount for Conductor Range 6 Str.-250 kcmil

L250P

Type L - Copper Tin-Plated Single Conductor, One-Hole Mount for Conductor Range 6 Str.-250 kcmil
Type STC - Copper Single-Conductor, One-Hole Mount (Straight Tang), Conductor Range 14 AWG-6 Str, Length 1-9/64 Inches, Width 3/8 Inch, Height 11/16 Inch

STC0614

Type STC - Copper Single-Conductor, One-Hole Mount (Straight Tang), Conductor Range 14 AWG-6 Str, Length 1-9/64 Inches, Width 3/8 Inch, Height 11/16 Inch
Type STC - Copper Single-Conductor, One Hole Mount (Straight Tang) for Conductor Range 2 Str.-4/0 Str.

STC4102

Type STC - Copper Single-Conductor, One Hole Mount (Straight Tang) for Conductor Range 2 Str.-4/0 Str.
Type L - Copper Tin-Plated Single Conductor, One-Hole Mount for Conductor Range 14 Sol.-4 Str.

L70P

Type L - Copper Tin-Plated Single Conductor, One-Hole Mount for Conductor Range 14 Sol.-4 Str.
Type ADR-ALCUL Two-Conductor, Two-Hole Mount, Conductor Range 6 Str-350 kcmil, Length 4-1/4 Inches, Width 2-19/64 Inches, Height 1-3/8 Inches, 1/2 Inch Bolt Hole, 1-3/4 Inch Centers, Tin Plated

ADR35-22

Type ADR-ALCUL Two-Conductor, Two-Hole Mount, Conductor Range 6 Str-350 kcmil, Length 4-1/4 Inches, Width 2-19/64 Inches, Height 1-3/8 Inches, 1/2 Inch Bolt Hole, 1-3/4 Inch Centers, Tin Plated

How to Install Blackburn Aluminum Dual Rated Connectors

This guide provides step-by-step instructions for safely installing Blackburn Aluminum Dual Rated Connectors with aluminum or copper conductors, including preparation, wiring, and torque specifications.

Estimated time: 30m

Tools needed:

Wire brush, Torque wrench, Screwdriver

Supplies needed:

Blackburn Contax Type CT or Weaver Type CP oxide inhibiting compound, Mounting hardware, Flat washers (optional), Belleville washers (optional)

  1. De-energize Circuit and Verify Conductor Size

    Before beginning installation, de-energize the circuit to ensure safety. Then, check the conductor size marked on the connector to confirm it is appropriate for the conductor you are using.

  2. Strip Conductor Insulation

    Carefully strip the conductor insulation to the length of the connector barrel, taking care to avoid any damage to the conductor strands.

  3. Prepare and Insert Conductor

    Wire brush the conductor. If using an aluminum conductor, apply Blackburn Contax Type CT or Weaver Type CP oxide inhibiting compound. Fully insert the prepared conductor into the connector and wipe off any excess oxide inhibitor.

  4. Tighten Connector Setscrew

    Apply the recommended tightening torque to the setscrew of the connector. Refer to TABLE 1 in the product documentation for the correct torque value based on the connector's maximum conductor size.

  5. Apply Oxide Inhibitor to Contact Surface

    Prior to mounting the connector, apply Blackburn Contax Type CT or Weaver Type CP oxide inhibiting compound to the flat contact surface of the connector.

  6. Torque Mounting Hardware

    Install the mounting hardware. Torque the mounting hardware to the values specified in TABLE 2 of the product documentation. For best practice, use flat and Belleville washers in conjunction with the mounting hardware.
