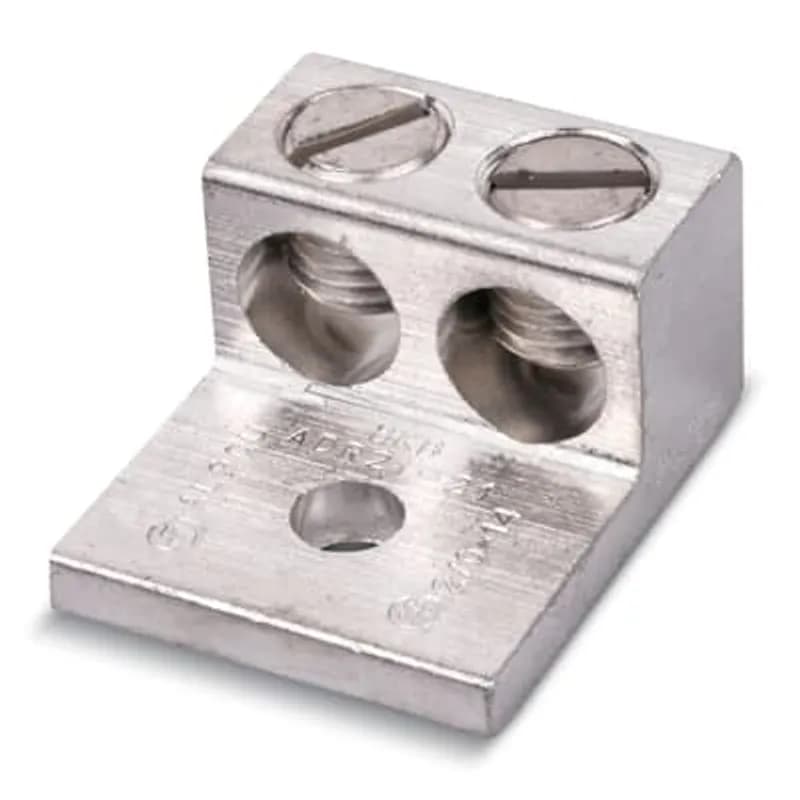

ABB Installation Products ADR11-21-B2-5 Type ADR-ALCUL two-conductor,one hole mount for conductor range max 1/0 Str, Min 14AWG.
UPC: 783786070077
Documents & Media
Contact for Pricing
Minimum Qty: 5
Multiplier: 5
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Two-conductor connector
- Single-hole mount design
- Conductor range: 14 AWG (min) to 1/0 AWG stranded (max)
- Manufacturer: ABB - Installation Products
- SKU: ADR11-21-B2-5
Specifications
Number of Conductors | 2 |
Number of Mounting Holes | 2 |
Type | Dual-Rated Mechanical Connector |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.1300 L |
Package Weight (Metric) | 0.0590 kg |
PCSB4-3S-12Y
The PCSB4-3S-12Y Multi-Tap Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.
2HPS-B1-5
Type HPS plated Split-Bolt Connector with Spacer, Made of Copper Alloy,for Use on Copper, Aluminum, ACSR Conductors, Conductor Range for Equal Main and Tap 2 Sol-8 Sol10HPS-B1-5
Type HPS Plated Split Bolt Connector with Spacer, Copper Alloy, for Use on Copper, Aluminum, ACSR Conductors, Conductor Range for Equal Main and Tap 1/0 Str-6 Sol
ADR21-B2-5
Type ADR-ALCUL single conductor,one hole mount,for conductor range max 2/0 Str. Min 14AWG.
How to Install Blackburn Aluminum Dual Rated Connectors
This guide provides step-by-step instructions for installing Blackburn Aluminum Dual Rated Connectors with aluminum or copper conductors. It covers conductor preparation, connector insertion, and proper torque application for both setscrews and mounting hardware.
Estimated time: 30m
Tools needed:
Wire strippers, Wire brush, Torque wrench
Supplies needed:
Blackburn Contax Type CT or Weaver Type CP oxide inhibiting compound, Blackburn Aluminum Dual Rated Connectors, Aluminum, Copper, or Copper-Clad Aluminum Conductors, Mounting hardware, Flat and Belleville washers
- De-energize Circuit and Verify Components
Before beginning installation, ensure the circuit is de-energized to prevent electrical shock. Verify that the conductor size matches the size marked on the connector to ensure proper fit and performance.
- Prepare the Conductor
Carefully strip the conductor insulation to the length of the connector barrel, being careful to avoid any damage to the conductor strands during the stripping process.
- Apply Oxide Inhibitor and Insert Conductor
Wire brush the conductor thoroughly. If using an aluminum conductor, apply Blackburn® Contax® Type CT or Weaver Type CP oxide inhibiting compound to the conductor. Fully insert the conductor into the connector barrel and wipe off any excess oxide inhibitor.
- Torque the Connector Setscrew
Identify the maximum conductor size the connector accommodates. Apply the recommended tightening torque to the setscrew as specified in TABLE 1 (e.g., 35 In.-Lbs. for 10-14 AWG) to securely fasten the conductor within the connector.
- Prepare Connector for Mounting
Prior to mounting, apply Blackburn® Contax® Type CT or Weaver Type CP oxide inhibiting compound to the flat contact surface of the connector where it will make contact with the mounting surface.
- Mount the Connector
Mount the connector using appropriate mounting hardware. Torque the mounting hardware to the values shown in TABLE 2 (e.g., 72 In.-Lbs. for a 1/4 inch steel bolt). For best installation practice, use flat and Belleville washers in conjunction with the mounting hardware.
