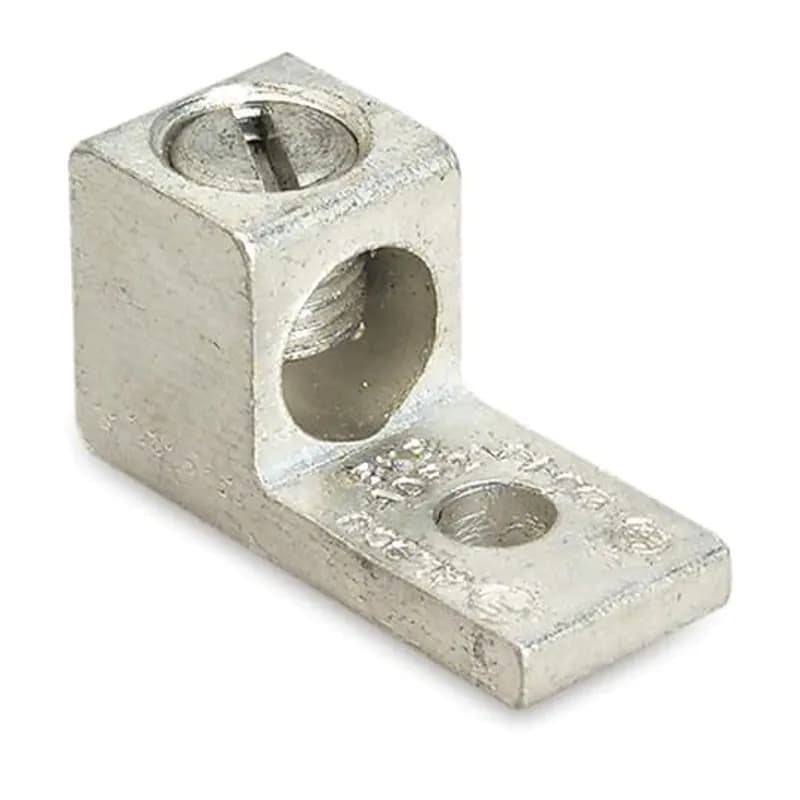

ABB - Installation Products ADR2-B2-5 - Type ADE-ALCUL single conductor, one hole mount,for conductor range max 2 Str, Min 14 AWG

ABB Installation Products ADR2-B2-5 Type ADE-ALCUL single conductor, one hole mount,for conductor range max 2 Str, Min 14 AWG

UPC: 783786070138


Documents & Media
Installation InstructionsManufacturer Product Website

Contact for Pricing

Minimum Qty: 5

Multiplier: 5

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB ADR2-B2-5 is a Type ADE-ALCUL single conductor lug designed for secure, high-integrity electrical connections in industrial and commercial installations. This one-hole mount lug accommodates conductor sizes from 14 AWG minimum to 2 stranded conductors maximum, providing a reliable termination point for single conductors in power distribution systems. Manufactured by ABB - Installation Products, the ADR2-B2-5 is part of the ADE-ALCUL series, known for its straightforward installation and dependable performance in panel building, equipment wiring, and general electrical infrastructure. The lug’s design ensures a stable, single-point connection that maintains electrical integrity and reduces the risk of connection failures in critical applications. With a standard catalog weight of 2.5 lbs and a standard carton quantity of 10 units, this lug is optimized for efficient inventory management and bulk deployment in large-scale projects. Its compatibility with a defined conductor range makes it suitable for applications where precise conductor sizing is required, such as motor control centers, switchgear, and industrial machinery wiring. The ADR2-B2-5 is a practical choice for engineers and electricians seeking a durable, no-frills solution for single conductor terminations.
  • Type ADE-ALCUL single conductor lug for secure terminations
  • One-hole mount design for easy installation
  • Accommodates conductor sizes from 14 AWG min to 2 Str max
  • Part of ABB - Installation Products' ADE-ALCUL series
  • Standard carton quantity: 10 units, weight: 2.5 lbs

Specifications

Connection Type
One Hole Mount
Material
Copper
Mounting Type
One Hole Mount
Number of Conductors
1
Number of Mounting Holes
1
Poles
1
Series
ADE-ALCUL
Size
14 AWG Min, 2 Str Max
Type
Dual-Rated Mechanical Connector
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.0300 L
Package Weight (Metric)
0.0140 kg
U-Type Die 500Cu

BTP350-S

U-Type Die 500Cu
Locktite Copper Female Stud Connector for Conductor Range 8-4 AWG

31262

Locktite Copper Female Stud Connector for Conductor Range 8-4 AWG
M12-12 pin connector for connection to the safety controller in the cabinet.

2TLA020055R3300

M12-12 pin connector for connection to the safety controller in the cabinet.
The PCSB4-3S-12Y Multi-Tap Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.

PCSB4-3S-12Y

The PCSB4-3S-12Y Multi-Tap Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.
Insulated Bus Connector - 8 Terminals for 4 Stranded - 500 kcmil Lugs, 1 Sealed Streetlight Terminals with Wire Range 12 Solid - 4 Stranded, with Streetlight Cover and Plug. For use with Blackburn Lugs. 600 Volts

UPC88SL

Insulated Bus Connector - 8 Terminals for 4 Stranded - 500 kcmil Lugs, 1 Sealed Streetlight Terminals with Wire Range 12 Solid - 4 Stranded, with Streetlight Cover and Plug. For use with Blackburn Lugs. 600 Volts
Insulated Bus Connector - 5 Terminals In-Line, Number of Ports 4, 4 2-Bolt Large Terminals, Wire Range #4 Stranded to 500 kcmil. Street Light Option - Cover and Plug. 12 solid - 4 stranded. Contains Oxide Inhibiting Compound. For use with Blackburn Lug types LAC or LCU.

UPC44SL1

Insulated Bus Connector - 5 Terminals In-Line, Number of Ports 4, 4 2-Bolt Large Terminals, Wire Range #4 Stranded to 500 kcmil. Street Light Option - Cover and Plug. 12 solid - 4 stranded. Contains Oxide Inhibiting Compound. For use with Blackburn Lug types LAC or LCU.
Insulated Bus Connector - Number of Ports 6, 6 2-Bolt Large Terminals with 4 stranded - 500 kcmil, Wire Range 12 solid - 4 stranded for Street Light Option

UPC66SL

Insulated Bus Connector - Number of Ports 6, 6 2-Bolt Large Terminals with 4 stranded - 500 kcmil, Wire Range 12 solid - 4 stranded for Street Light Option
Insulated Bus Connector - Number of Ports 4, 4 2-Bolt Large Terminals with 6 stranded - 350 kcmil, Wire Range 12 solid - 4 stranded for Street Light Option

UPC44SL

Insulated Bus Connector - Number of Ports 4, 4 2-Bolt Large Terminals with 6 stranded - 350 kcmil, Wire Range 12 solid - 4 stranded for Street Light Option

How to Install Blackburn Aluminum Dual Rated Connectors

This guide provides step-by-step instructions for safely installing Blackburn Aluminum Dual Rated Connectors with both aluminum and copper conductors, including preparation, insertion, and proper torque application.

Estimated time: 30m

Tools needed:

Wire brush, Torque wrench

Supplies needed:

Blackburn Contax Type CT or Weaver Type CP oxide inhibiting compound, Mounting hardware (bolts, nuts), Flat washers, Belleville washers

  1. De-energize Circuit and Verify Conductor Size

    CAUTION: De-energize the circuit before installing connectors to prevent electrical shock. Check the conductor size marked on the connector to ensure it is the correct connector for the conductor size you are using.

  2. Strip Conductor Insulation

    Carefully strip the conductor insulation to the length of the connector barrel, avoiding any damage to the conductor strands. Refer to Figure 1 (not provided in document) for visual guidance on strip length.

  3. Prepare Conductor and Insert into Connector

    Wire brush the conductor thoroughly. If using an aluminum conductor, apply Blackburn Contax Type CT or Weaver Type CP oxide inhibiting compound. Fully insert the prepared conductor into the connector barrel. Wipe off any excess oxide inhibitor. Refer to Figure 2 and 3 (not provided in document) for visual guidance.

  4. Apply Torque to Connector Setscrew

    Identify the maximum conductor size the connector accommodates. Apply the recommended tightening torque to the setscrew in accordance with TABLE 1. Refer to Figure 4 (not provided in document) for the setscrew location.

  5. Apply Oxide Inhibitor to Contact Surface

    Prior to mounting the connector, apply Blackburn Contax Type CT or Weaver Type CP oxide inhibiting compound to the flat contact surface of the connector.

  6. Mount Connector and Torque Hardware

    Mount the connector using appropriate mounting hardware. Torque the mounting hardware to the values shown in TABLE 2. For best installation practice, use flat and Belleville washers in conjunction with the mounting hardware, although the connectors will perform satisfactorily without them. Refer to Figure 4 (not provided in document) for mounting hardware location.
