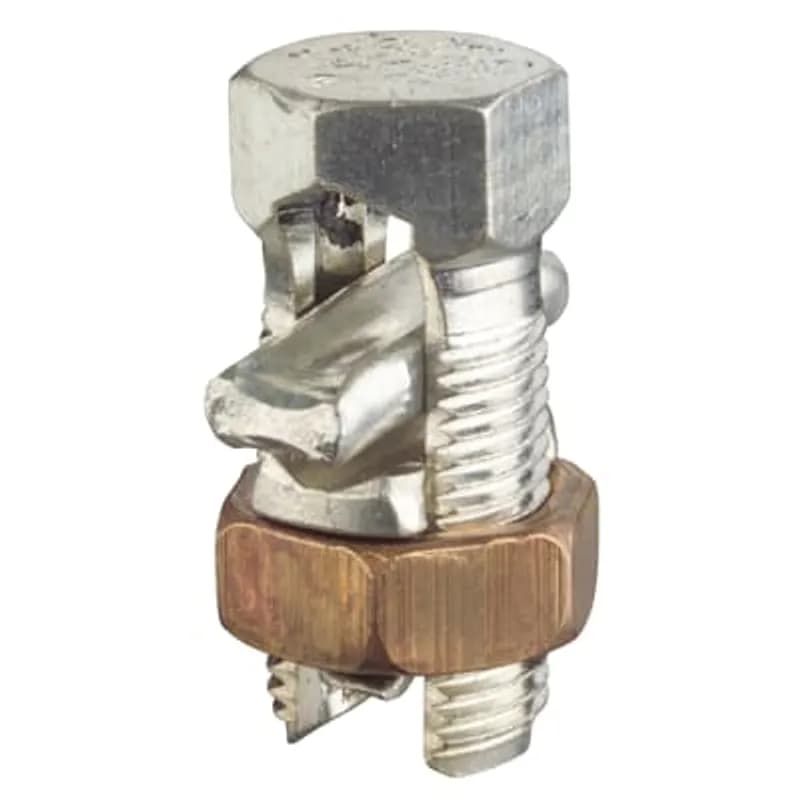

ABB - Installation Products 10HPS-B1-5 - Type HPS Plated Split Bolt Connector with Spacer, Copper Alloy, for Use on Copper, Aluminum, ACSR Conductors, Conductor Range for Equal Main and Tap 1/0 Str-6 Sol

ABB Installation Products 10HPS-B1-5 Type HPS Plated Split Bolt Connector with Spacer, Copper Alloy, for Use on Copper…

UPC: 783786069590


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 5

Multiplier: 5

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB Type HPS Plated Split Bolt Connector (SKU: 10HPS-B1-5) is a robust connector designed for reliable electrical connections in various industrial applications. Constructed from a high-quality copper alloy, this connector ensures excellent conductivity and corrosion resistance, crucial for long-term performance in demanding environments. Its plated finish further enhances its durability and protection against environmental factors. This split bolt connector is engineered for use with copper, aluminum, and ACSR conductors. The specific conductor range supported for equal main and tap connections is from 1/0 stranded to 6 stranded or solid conductors. This versatility makes it suitable for a broad spectrum of power distribution and transmission tasks. Key features include: * **Material:** Copper Alloy with plating for enhanced protection. * **Conductor Compatibility:** Copper, Aluminum, ACSR. * **Conductor Range (Equal Main/Tap):** 1/0 Str-6 Sol. * **Design:** Split bolt configuration for secure clamping. * **Manufacturer:** ABB - Installation Products.
  • Constructed from durable copper alloy with plating for enhanced corrosion resistance.
  • Designed for secure connections on copper, aluminum, and ACSR conductors.
  • Supports conductor ranges of 1/0 stranded to 6 stranded or solid for equal main and tap connections.
  • Features a split bolt design for reliable and secure conductor clamping.
  • Manufactured by ABB - Installation Products for dependable electrical infrastructure.

Specifications

Connection Type
Split Bolt
Material
Copper Alloy
Material
Copper
Series
HPS
Size
1/0 Str-6 Sol
Type
Split-Bolt Connector
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.2100 L
Package Weight (Metric)
0.0950 kg
