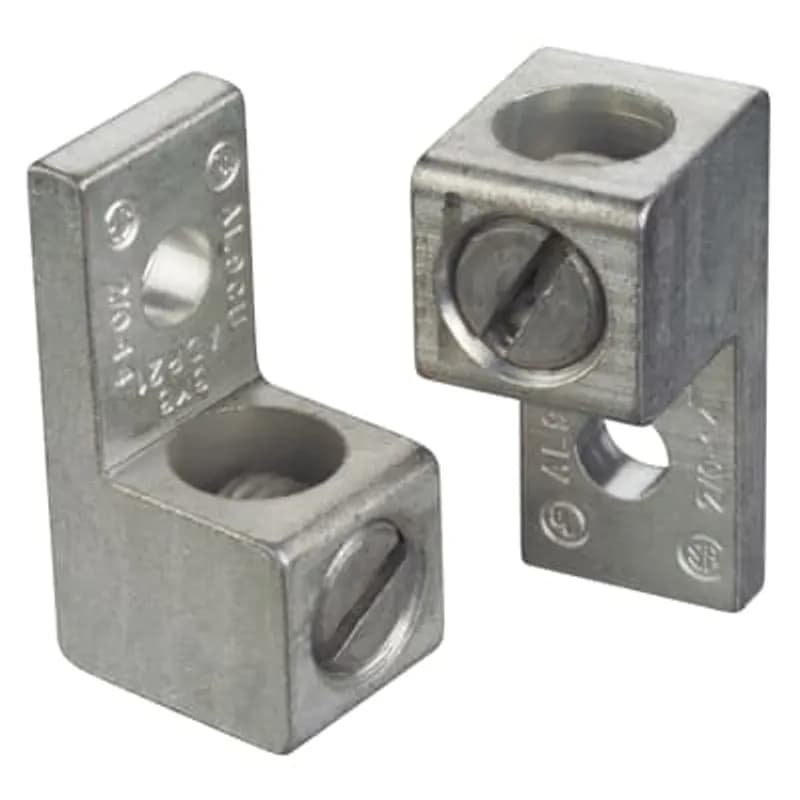

ABB Installation Products ADR21-B2-5 Type ADR-ALCUL single conductor,one hole mount,for conductor range max 2/0 Str. Min 14AWG.
UPC: 783786070114
Documents & Media
Contact for Pricing
Minimum Qty: 5
Multiplier: 5
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Single conductor lug for industrial applications
- One-hole mounting design for easy installation
- Accommodates conductor range: max 2/0 Str., min 14 AWG
- Manufactured by ABB - Installation Products
- Reliable electrical connection for power transmission
Specifications
Connection Type | One Hole Mount |
Mounting Type | One Hole Mount |
Number of Conductors | 1 |
Number of Mounting Holes | 1 |
Poles | 1 |
Series | Type ADR-ALCUL |
Size | 2/0 Str. Min 14AWG |
Type | Dual-Rated Mechanical Connector |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.0800 L |
Package Weight (Metric) | 0.0360 kg |
PCSB4-3S-12Y
The PCSB4-3S-12Y Multi-Tap Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.
UPC44SL1
Insulated Bus Connector - 5 Terminals In-Line, Number of Ports 4, 4 2-Bolt Large Terminals, Wire Range #4 Stranded to 500 kcmil. Street Light Option - Cover and Plug. 12 solid - 4 stranded. Contains Oxide Inhibiting Compound. For use with Blackburn Lug types LAC or LCU.
UPC44
Flood-Seal Bus Connectors, length 8.1 inch, 205 mm, height with sleeve 8.8 inch, 222 mm, 2-bolt large term 4, 1-bolt small term 0, ports 4UPC44SL
Insulated Bus Connector - Number of Ports 4, 4 2-Bolt Large Terminals with 6 stranded - 350 kcmil, Wire Range 12 solid - 4 stranded for Street Light Option
Frequently Asked Questions
What is the maximum conductor size for this lug?
The maximum conductor size this lug can accommodate is 2/0 Stranded.
What is the minimum conductor size for the ADR21-B2-5?
The minimum conductor size compatible with this lug is 14 AWG.
How many holes does this conductor lug have for mounting?
This is a one-hole mount conductor lug.
Who manufactures the ADR21-B2-5 conductor lug?
The ADR21-B2-5 conductor lug is manufactured by ABB - Installation Products.
What type of conductor does the ADR-ALCUL lug support?
The ADR-ALCUL lug is designed for single conductor applications.
How to Install Blackburn Aluminum Dual Rated Connectors
This guide provides step-by-step instructions for safely installing Blackburn Aluminum Dual Rated Connectors with both aluminum and copper conductors, including preparation, wiring, and proper torque application.
Estimated time: 30m
Tools needed:
Wire strippers, Wire brush, Torque wrench
Supplies needed:
Oxide inhibiting compound (Blackburn Contax Type CT or Weaver Type CP), Mounting hardware, Flat washers, Belleville washers
- De-energize and Verify Conductor Size
CAUTION: De-energize the circuit before installing connectors to prevent electrical shock. Then, check the conductor size marked on the connector to ensure it is the correct connector for the conductor size you are using.
- Strip Conductor Insulation
Carefully strip the conductor insulation. Avoid any damage to the conductor strands. Use the length of the connector's conductor barrel to measure the appropriate strip length.
- Prepare and Insert Conductor
Wire brush the conductor thoroughly. If using an aluminum conductor, apply Blackburn® Contax® Type CT or Weaver Type CP oxide inhibiting compound. Fully insert the prepared conductor into the connector. Wipe off any excess oxide inhibitor.
- Tighten Connector Setscrew
Apply the recommended tightening torque to the setscrew in accordance with TABLE 1. Refer to the table for specific torque values based on the connector's maximum conductor size (e.g., 10-14 AWG: 35 In.-Lbs., 8 AWG: 40 In.-Lbs., 4-6 AWG: 45 In.-Lbs., 2/0-14: 50 In.-Lbs., 250-6: 275 In.-Lbs., 350-10: 375 In.-Lbs., 500-6: 375 In.-Lbs., 750-1/0: 375 In.-Lbs.).
- Apply Oxide Inhibitor to Contact Surface
Before mounting, apply Blackburn® Contax® Type CT or Weaver Type CP oxide inhibiting compound to the flat contact surface of the connector.
- Mount the Connector and Torque Hardware
Mount the connector using appropriate mounting hardware. Torque the mounting hardware to the values shown in TABLE 2 (e.g., for Steel: 1/4" bolt: 72 In.-Lbs., 5/16": 132 In.-Lbs., 3/8": 228 In.-Lbs., 7/16": 360 In.-Lbs., 1/2": 480 In.-Lbs., 5/8": 660 In.-Lbs.). For best practice, use flat and Belleville washers with the mounting hardware.
