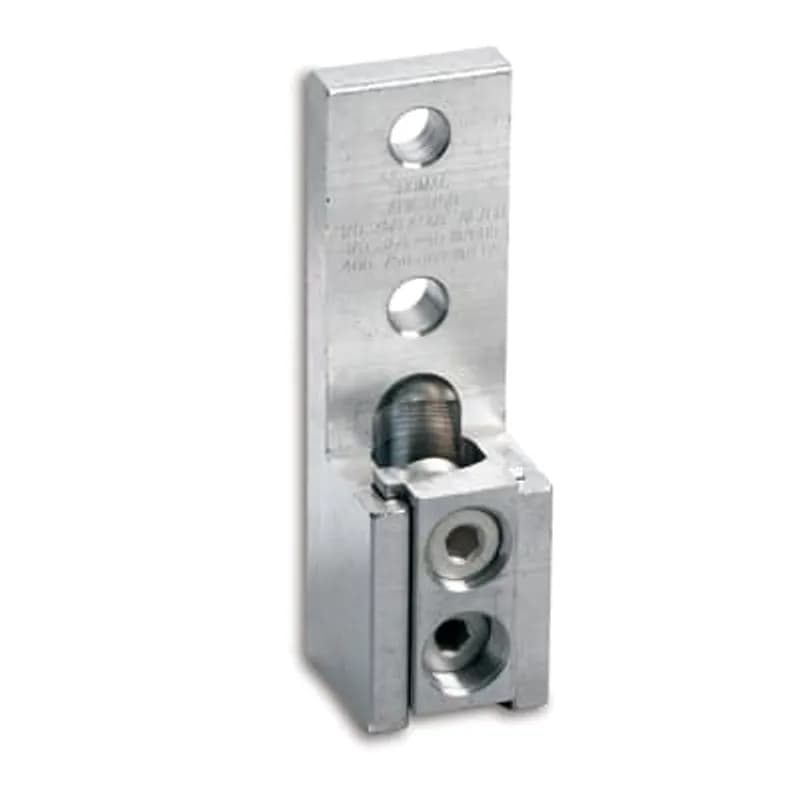

ABB - Installation Products ABK 61000 - Aluminum Lay-In Transformer Spade Connectors - ABK Series, cable range 1/0-1000, length 10 3/8 Inch , height 6 3/16 Inch , mount holes 16, outlets 6

ABB Installation Products ABK 61000 Aluminum Lay-In Transformer Spade Connectors - ABK Series, cable range 1/0-1000, length…

UPC: 783786684182


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 8

Multiplier: 8

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB ABK 61000 Aluminum Lay-In Transformer Spade Connectors are designed for high-current applications requiring reliable cable termination. These connectors accommodate a cable range from 1/0 AWG to 1000 AWG, making them ideal for heavy-duty industrial transformer installations. The connectors feature 16 mount holes and 6 outlets, ensuring secure and stable connections in high-vibration environments. Constructed from durable aluminum, they provide excellent conductivity and corrosion resistance, reducing maintenance needs. The 10 3/8-inch length and 6 3/16-inch height allow for easy integration into existing transformer enclosures. Compatible with standard spade terminals, these connectors streamline installation and improve system reliability. Trust ABB, a leader in industrial electrical solutions, to deliver precision-engineered components for your critical infrastructure.
  • Aluminum construction for high conductivity and corrosion resistance
  • Accommodates cable range 1/0-1000 AWG
  • 16 mount holes and 6 outlets for secure connections
  • 10 3/8" length and 6 3/16" height for compact installation
  • Compatible with standard spade terminals

Specifications

Application
Pad-Mount Tranformer Connector
Conductor Range
1/0 to 1000 kcmil
Connection
Mechanical
Connection Type
Lay-In Transformer Spade
Height
6-3/16 in
Insulation
False
Material
Aluminum
Mounting Type
Mount Holes (16)
Number of Conductors
6
Series
ABK Series
Size
length 10-3/8 Inch , height 6-3/16 Inch
Size
1/0-1000 AWG
Special Features
Requires only a cable stripper and Allen wrench. No Crimping tools or dies needed. Dual-rated for Aluminum and Copper. Double Set Screws maximize contact area and mechanical characterisitics. Ball-Bottom Screws ensure even force distribution in the cable/connector interface. Transformer changes require only the connector to be unbolted from the spade - no need to disconnect all the conductors, as with compression systems
Standard
RUS Accepted
Type
Lay-In Transformer Connector
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
5.2700 L
Package Weight (Metric)
2.3910 kg
Aluminum Lay-In Transformer Spade Connectors - ZBK Series, conductor range 1/0-1000, mount holes 8, outlets 8, with Oxide Inhibitor, length 7.001 inches

ZBK 4041 C

Aluminum Lay-In Transformer Spade Connectors - ZBK Series, conductor range 1/0-1000, mount holes 8, outlets 8, with Oxide Inhibitor, length 7.001 inches
Aluminum Flood-Seal Multi-Port Connectors - 95 Series Terminal Kits. Force-Fit kit, concentric 8, Solid 6, die reference 5/8,BG,687,243,TU,52,8A

CFG 8 CS

Aluminum Flood-Seal Multi-Port Connectors - 95 Series Terminal Kits. Force-Fit kit, concentric 8, Solid 6, die reference 5/8,BG,687,243,TU,52,8A
Aluminum Flood-Seal 125 Series Connectors - two-way configuration, one-bolt design, length 5-1/4 inch, outlets 6, 1-Hole per Tower, Includes 6 Insulating Rockets and 6 Screws.

FS 33-48

Aluminum Flood-Seal 125 Series Connectors - two-way configuration, one-bolt design, length 5-1/4 inch, outlets 6, 1-Hole per Tower, Includes 6 Insulating Rockets and 6 Screws.
Aluminum Transformer Connector-CSS Series - screw-on style, cable range #6 to 500 kcmil, Stud size 5/8 inch, Clear PVC Insulator length 9-1/16 inch, outlets 4

CSS 4500-58

Aluminum Transformer Connector-CSS Series - screw-on style, cable range #6 to 500 kcmil, Stud size 5/8 inch, Clear PVC Insulator length 9-1/16 inch, outlets 4
Aluminum Transformer Connector-CSS Series - screw-on style, cable range 12-350, stud size 5/8 in, insulator length 7-1/16 in, outlets 6

CSS 6350

Aluminum Transformer Connector-CSS Series - screw-on style, cable range 12-350, stud size 5/8 in, insulator length 7-1/16 in, outlets 6
Aluminum Transformer Connector-CSS Series - screw-on style, cable range 2-500, stud size 5/8 in, insulator length 11-1/16 in, outlets 6

CSS 6500-58

Aluminum Transformer Connector-CSS Series - screw-on style, cable range 2-500, stud size 5/8 in, insulator length 11-1/16 in, outlets 6
Aluminum Transformer Connector-CSS Series - screw-on style, cable range 12-350, stud size 5/8 in, insulator length 9-1/16 in, outlets 8

CSS 8350

Aluminum Transformer Connector-CSS Series - screw-on style, cable range 12-350, stud size 5/8 in, insulator length 9-1/16 in, outlets 8
Copper Tin-Plated Threaded Transformer Stud Adapter for NEMA pad-style connections - Six-hole transformer stud adapter, Silver Brazed Stud - Size 1-14 UNS-2B with 1.192 inch Outside Diameter. Pad 5.5 inch long x 3 inch wide x .25 inch thick. Two rows of 3 holes spaced 1.75 inch on center and .562 inch Diameter.

2042-5

Copper Tin-Plated Threaded Transformer Stud Adapter for NEMA pad-style connections - Six-hole transformer stud adapter, Silver Brazed Stud - Size 1-14 UNS-2B with 1.192 inch Outside Diameter. Pad 5.5 inch long x 3 inch wide x .25 inch thick. Two rows of 3 holes spaced 1.75 inch on center and .562 inch Diameter.

Frequently Asked Questions

How many mount holes does the ABK 61000 have?

The ABK 61000 features 16 mount holes for secure attachment.

What are the dimensions of the ABK 61000?

The ABK 61000 has a length of 10 3/8 inches and a height of 6 3/16 inches.

How many outlets does the ABK 61000 have?

The ABK 61000 includes 6 outlets for cable connections.

What cable sizes are compatible with the ABK 61000?

The ABK 61000 supports cable sizes ranging from 1/0 AWG to 1000 AWG.

What material is the ABK 61000 made from?

The ABK 61000 is constructed from aluminum for durability and conductivity.
