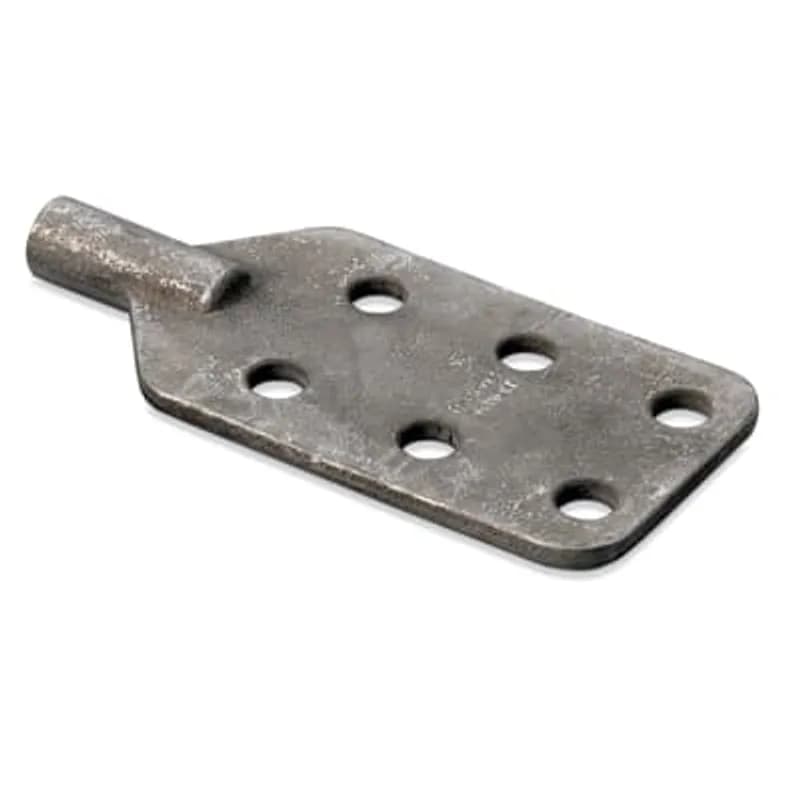

ABB - Installation Products 2042-5 - Copper Tin-Plated Threaded Transformer Stud Adapter for NEMA pad-style connections - Six-hole transformer stud adapter, Silver Brazed Stud - Size 1-14 UNS-2B with 1.192 inch Outside Diameter. Pad 5.5 inch long x 3 inch wide x .25 inch thick. Two rows of 3 holes spaced 1.75 inch on center and .562 inch Diameter.

ABB Installation Products 2042-5 Copper Tin-Plated Threaded Transformer Stud Adapter for NEMA pad-style connections…

UPC: 783786763634

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 30

Multiplier: 30

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

This ABB Installation Products Transformer Stud Adapter (SKU: 2042-5) is engineered for reliable NEMA pad-style connections. Constructed from tin-plated copper, it ensures excellent conductivity and corrosion resistance for critical electrical infrastructure. The adapter features a silver brazed stud with a 1-14 UNS-2B thread size and an outside diameter of 1.192 inches, designed for secure attachment to transformer studs. Its robust pad measures 5.5 inches in length, 3 inches in width, and 0.25 inches in thickness, providing a stable mounting surface. The pad is equipped with two rows of three holes, each spaced 1.75 inches on center, with individual hole diameters of 0.562 inches, facilitating a six-hole connection configuration for transformer terminals. This adapter is suitable for applications requiring secure and compliant electrical connections in pad-mounted transformer installations. Its construction prioritizes electrical integrity and long-term performance in utility and industrial settings. UNSPSC Code: 39121443.
  • Tin-plated copper construction for conductivity and corrosion resistance
  • Silver brazed stud with 1-14 UNS-2B thread size
  • Six-hole NEMA pad configuration (2 rows of 3 holes)
  • Pad dimensions: 5.5" L x 3" W x 0.25" T
  • Hole spacing: 1.75" on center; Hole diameter: 0.562"

Specifications

Application
NEMA Pad-Style Connections
Connection
Threaded
Connection Type
Threaded Adapter
Finish
Tin Plated
Insulation
False
Material
Copper
Material
Copper Tin-Plated
Mounting Type
Pad-mounted
Nema Rating
NEMA pad-style
Series
2042
Size
Pad 5.5 inch long x 3 inch wide x .25 inch thick
Size
Size 1-14 UNS-2B
Special Features
NEMA Spacing of 1.75 inch Centers
Type
Threaded Transformer Adapter - Stud to Flat
Width
3 in
Width
76.2 mm
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.5000 L
Package Weight (Metric)
0.6800 kg
Copper Tin Plated Threaded Transformer Stud Adapters for Stud to Cable connections, Cable Size 500 kcmil Copper, Stud Size 1-14 UNS-2B. Length 5-5/32 inch x 1.05 inch Diameter. Dies TH 87 20 1.

2043-13

Copper Tin Plated Threaded Transformer Stud Adapters for Stud to Cable connections, Cable Size 500 kcmil Copper, Stud Size 1-14 UNS-2B. Length 5-5/32 inch x 1.05 inch Diameter. Dies TH 87 20 1.
Aluminum Screw-On Transformer Connectors - ABS In-line, single-line bar, cable range 12-350, length 4-1/4 inch, Uses boot no. SB 17, stud size 5/8, outlets 3

ABS 3350

Aluminum Screw-On Transformer Connectors - ABS In-line, single-line bar, cable range 12-350, length 4-1/4 inch, Uses boot no. SB 17, stud size 5/8, outlets 3
Aluminum Screw-On Transformer Connectors - ABS In-line, single-line bar, cable range 12-350, length 3-1/4 inch, boot no-Refer to TNB Rep, stud size 5/8, outlets 2

ABS 2350

Aluminum Screw-On Transformer Connectors - ABS In-line, single-line bar, cable range 12-350, length 3-1/4 inch, boot no-Refer to TNB Rep, stud size 5/8, outlets 2
Aluminum Screw-On Transformer Connectors - ABS In-line, single-line bar, cable range 12-350, length 5-1/4 inch, Uses boot no. SB 17, stud size 5/8, outlets 4

ABS 4350

Aluminum Screw-On Transformer Connectors - ABS In-line, single-line bar, cable range 12-350, length 5-1/4 inch, Uses boot no. SB 17, stud size 5/8, outlets 4
Aluminum Screw-On Transformer Connectors - ABS In-line, single-line bar, cable range 12-350, length 7-1/4 inch, Uses boot no. SB 11, stud size 5/8, outlets 6

ABS 6350

Aluminum Screw-On Transformer Connectors - ABS In-line, single-line bar, cable range 12-350, length 7-1/4 inch, Uses boot no. SB 11, stud size 5/8, outlets 6
Aluminum Flood-Seal 125 Series Connectors - one-way configuration, one-bolt design, length 7-1/4 inch, outlets 4 with 1-Hole per Tower, includes 4 Insulating Rockets and 4 Screws.

FS 4-125

Aluminum Flood-Seal 125 Series Connectors - one-way configuration, one-bolt design, length 7-1/4 inch, outlets 4 with 1-Hole per Tower, includes 4 Insulating Rockets and 4 Screws.
Aluminum Universal Quick Disconnect Transformer Connectors-EZB Series Uninsulated In-Line Bar, cable range 6-500, S/L 14-2, length 8-3/4 in, stud size 5/8 & 1 in, outlets 6

EZB 6500 SL

Aluminum Universal Quick Disconnect Transformer Connectors-EZB Series Uninsulated In-Line Bar, cable range 6-500, S/L 14-2, length 8-3/4 in, stud size 5/8 & 1 in, outlets 6
Aluminum Universal Quick Disconnect Transformer Connectors-EZC Series Insulated In-Line Bar, cable range 6-500, S/L 14-2, length 8-3/4 in, stud size 5/8 & 1 in, outlets 6

EZC 6500 SL

Aluminum Universal Quick Disconnect Transformer Connectors-EZC Series Insulated In-Line Bar, cable range 6-500, S/L 14-2, length 8-3/4 in, stud size 5/8 & 1 in, outlets 6
