Overview

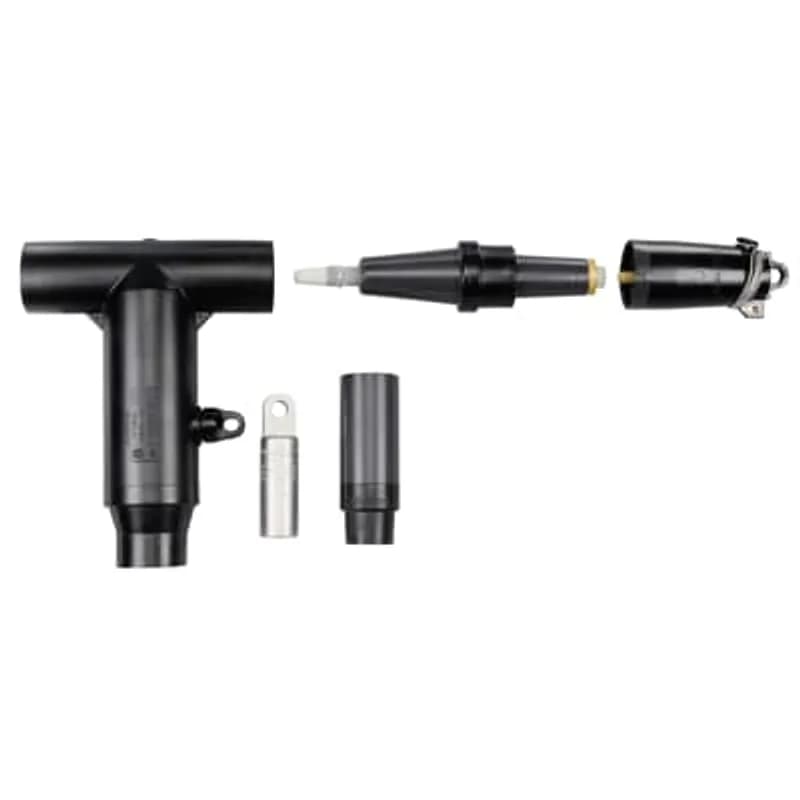

- 600 Amp continuous operation for 35kV class systems
- Supports compressed stranded conductors from 350 kcmil to #6 AWG (aluminum or copper)
- Integrated capacitive test point for safe, non-invasive voltage verification
- ADR35-12 aluminum compression lug with electro-tin plating for reliable contact
- Cold-shrinkable jacket seal provides weatherproof, corrosion-resistant termination
- 1/2" bolt holes on 1-3/4" centers with 275 in-lbs torque requirement
- 90°C temperature rating for long-term performance
- Fully insulated cap for added safety during installation and operation
Specifications
Amperage Rating | 600 to 200 A |
Application | Connect 600 Amp interface to 200 Amp Loadbreak Tap |
Color | Black |
Conductor Range | 1000 kcmil |
Enclosure | Yes, EPDM Rubber |
Environmental Conditions | All Weather Conditions |
Insulation | True |
Material | Housing - EPDM-Rubber |
Special Features | Reducing Tap Plug 600 to 200 Amps. Test Point. Provides an External Visible Break by Hotstick Removal of the Elbow |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Stick Op Reducing Tap Plug Connector with Test Point |
Voltage Rating | 35 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
755LR-Q0410
600 Amp, 35kV, 600 Series Deadbreak Elbow (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Cable Insulation Diameter 1.900 inch to 2.120 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 1000.
K656LRTP-P0380-DRG
600 Amp, 25kV, Deadbreak, Stick-Op Connector Kit with Test Point, Cable Insulation Diameter 1.725 inch to 1.935 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900. With Insulated Cap.
656CETPJ0270DRG-S
15kV, 600 Amp Combo T, carries current. Combo Elbow with bus, stud and cable adapter, lug and insulated cap kit. Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 4/0 /Compacted Solid 250 /mmSquared Compact 125. 200ECS Cold-Shrinkable Jacket Seal Included.
675CETP-L2330
15kV, 200/900 Amp Series Loadbreak, ComboT Elbow with 200 Amp Reducing Tap Plug, Stud, Cable Adapter and Lug Kit without Test Point. Cable Insulation Diameter 1.180-1.465 inches (30.0-37.2mm). Copper Lug, 330-Conductor Size 500 kcmil Stranded/Compressed or 600 kcmil Solid/Compact or 250/300 mmsq. Includes Elbow Housing, Stud, Compression Lug, Tube of Lubricant, Cable Adapter, Installation Instructions and Crimp Chart. No Sealing Kit.656CETP-N0410-DRG-S
15kV, 600 Amps, Combo T Elbow with Bus Stud, Cable Adapter and Lug. Cable Insulation Diameter 1.515-1.780 inches, Aluminum Lug, Conductor Size 1000 kcmil Stranded/Compressed. Cold Shrinkable Jacket Seal.
656CETP-N5380
15kV, 600 Amp Combo T, carries current. Combo Elbow with bus, stud and cable adapter, lug and insulated cap kit. Cable Insulation Diameter 1.515 inch to 1.780 inch. Bi-Metal Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.656CETP-N0410-DRG
15kv, Combo T, 600 Amps, Dead Break Kit Combo T Elbow with Bus Stud, Cable Adapter, Lug and Insulated Cap. Cable Insulation Diameter 1.515-1.780 inches, Aluminum Lug, Conductor Size 1000 kcmil Stranded/Compressed.Frequently Asked Questions
What is the maximum operating voltage for this connector?
The connector is rated for 35kV maximum operating voltage.
What conductor sizes does this kit support?
The kit supports compressed stranded conductors up to 1000 kcmil.
Does this connector include a test point?
Yes, it features a capacitive test point for voltage verification.
What is the cable insulation diameter range?
The connector accommodates cable insulation diameters from 1.725 to 1.935 inches.
Is the jacket seal cold-shrinkable?
Yes, the kit includes a cold-shrinkable jacket seal for easy installation.
What material is the compression lug made of?
The compression lug is made of aluminum for reliable electrical contact.
Can this connector be used for outdoor installations?
The insulated cap and cold-shrinkable seal provide weatherproof protection suitable for outdoor use.
How to Install the 273/375DRG(3) Insulated Cap with Ground Lead
This guide provides step-by-step instructions for safely installing the ELASTIMOLD 273/375DRG(3) Insulated Cap with Ground Lead onto a loadbreak bushing interface, ensuring proper insulation, shielding, and watersealing.
Estimated time: 15m
Tools needed:
Hotstick (minimum 8 ft)
Supplies needed:
273/375DRG(3) Insulated Cap with Ground Lead, ELASTIMOLD Approved Lubricant
- De-energize Apparatus and Connect Ground Lead
DANGER: All apparatus must be de-energized during installation. Ensure the system is completely de-energized. Connect the free end of the electrostatic grounding wire from the insulated cap to the system ground. Leave enough slack for hot-stick operation and ensure the grounding wire does not contact the bushing interface during operation. WARNING: If the ground lead disconnects during operation, do not attempt to reattach it without first pulling the insulated cap off the bushing with a hotstick.
- Lubricate the Insulated Cap
Remove the protective cover from the insulated cap. Lubricate the cap’s internal mating surface using only the supplied lubricant or an ELASTIMOLD approved lubricant. Do not substitute other lubricants as they may be harmful to this product and its mating products. Keep the internal mating surface free from dirt and grime. Always replace the protective cover when the cap is not in use.
- Install the Insulated Cap onto the Bushing
Firmly attach a hotstick (minimum 8 ft recommended) to the insulated cap's pulling eye. Insert the male contact of the insulated cap into the loadbreak bushing. Push the cap home with a fast, firm, straight motion, ensuring it is fully mated and the locking ring is seated. Detach the hotstick from the insulated cap.
