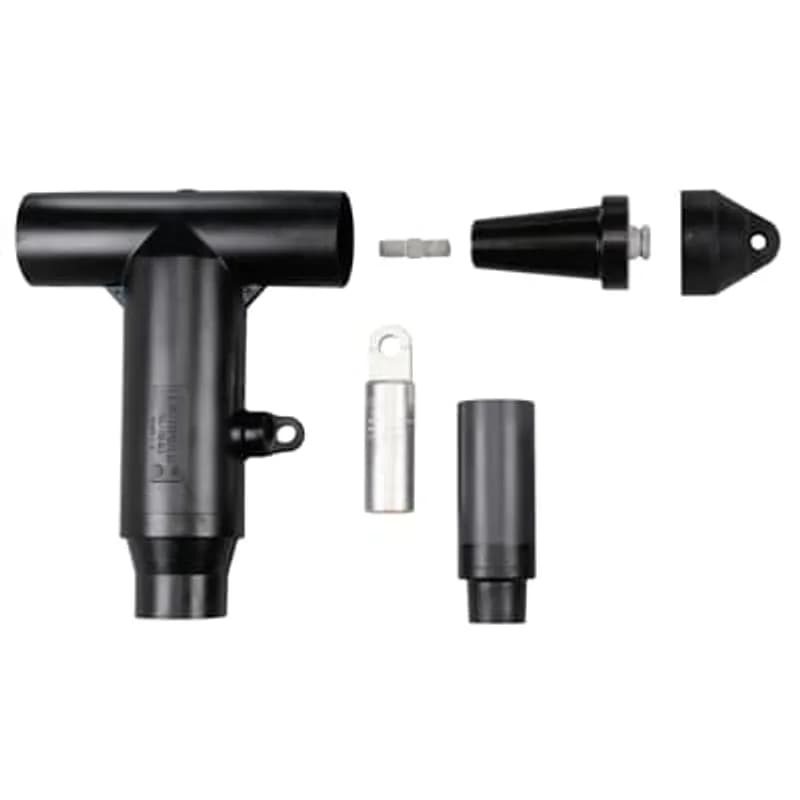

ABB Installation Products 756LR-R0440 35kV 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and…
UPC: 075114359580
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Fully rated 35kV, 600 Amp Deadbreak Elbow Connector
- Fully shielded, fully submersible molded rubber housing
- 100% peroxide-cured EPDM construction
- Supports conductor sizes up to 1250 kcmil (compressed stranded)
- Cable insulation diameter range: 2.115" to 2.235"
- Meets ANSI/IEEE Standard 386 with 150kV BIL rating
- Includes insulated plug, cap, stud, aluminum compression lug, and cable adapter
- Compatible with metallic tape shield or drain wire cables (ECS grounding recommended)
Specifications
Amperage Rating | 600 A |
Application | 35 kv, 600 Amp |
Color | Black |
Conductor Range | 1250 COMPR/STR kcmil |
Connection | Compression |
Connection Type | Compression |
Environmental Conditions | Fully Submersible |
Insulation | True |
Material | Aluminum |
Material | Housing - EPDM-Rubber |
Series | 600 Series |
Size | 2.115 inch to 2.235 inch |
Special Features | 35kV, 600 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Deadbreak Elbow Connector with Test Point |
Voltage Rating | 35 kV |
Width | 12.28 in |
Width | 311.912 mm |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
M655YSR-N0380-S
600 Amp Separable Cable Joints, Straight Receptacle, 35KV, Dead Break, Splice, Cable Insulation Diameter 1.515 inch to 1.780 inch. Aluminum Compression Lug. Conductor Size kcmil Compressed Stranded 700/750, Solid 900. 200ECS Jacket Seal Included.
K656CY-G0240-SG3
15/25kV, 600 Amp Deadbreak Separable WYE Joint Connector with Test Point. Cable Insulation Diameter G - 0.760 - 0.950 inch. Aluminum Compression Connector. Conductor Size 240 - 1/0 Stranded/Compressed or 2/0 Solid/Compact. Sealing Kit SG3 - Cold-Shrinkable Seal with Copper Braid and Constant Force Spring.
656ETP-MAC04-DRG
15kV, 600 Amp, Elbow Tap Plug, Test and Ground Connector Kit with Test Point. Includes Insulated Cap, Test and Ground Reducing Tap Plug, 600 Series Elbow Housing, Cable Adapter and Tin-Plated Aluminum ShearBolt Lug. Cable Insulation Diameter M - 1.37 to 1.63 inch. Conductor Size AC04 - 700 to 1250 kcmil Stranded/Compressed/Solid/Compact.
656ETP-LAC03-DRG
600 Amp, Dead Break, Elbow Connector, Test and Ground Connector Kit with Capacitive Test Point, 15KV, Cable Insulation Diameter 1.180 inch to 1.465 inch. Tin Plated Aluminum ShearBolt Lug. Conductor Size Compressed or Stranded 500 kcmil to Solid or Compact 750 kcmil.
K655SR-L0320
600 Amp, 15/25kV, 600 Series Deadbreak Straight Receptacle with Cable Adapter, Lug and Retaining Ring. Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Compression Lug. Conductor Size 320 - 450 kcmil Compressed-Stranded or 500/550 kcmil Compacted Solid.775ETPSP-P2410
35 kV, 900 Amps, Window-Op (Test and Ground Connector Kit), with Factory Installed Copper Stud, No Capacitive Test Point, Cable Insulation Diameter P - 1.725 to 1.935 inch, Connector Size 410 - 1000 Stranded/Compressed kcmil. Includes Crimp Chart and Instruction Sheets.
168RLR-J5270
200 Amp, 15kV, Loadbreak Replacement Elbow Connector with Test Point, Cable Insulation Diameter 0.980 inch to 1.180 inch. Conductor Size AWG Compressed Stranded 4/0 or Solid Compact 250 kcmil or mmSquared 126.67. Repair Elbow has extended length contact and elbow housing resulting in a net gain of 8-7/8 inches in length. Includes Elbow Connector Housing, Long Bi-Metal Compression Lug, Probe Wrench, Probe, Hose Clamp, Crimp Chart, Installation Instructions and Tube of Lubricant.Frequently Asked Questions
What is the maximum conductor size for this deadbreak elbow?
This deadbreak elbow is designed for compressed stranded conductors up to 1250 kcmil.
What is the cable insulation diameter range for the 756LR-R0440?
The cable insulation diameter range for this ABB deadbreak elbow is 2.115 inches to 2.235 inches.
Does the 756LR-R0440 include a test point?
Yes, the ABB 756LR-R0440 35kV 600 Series Deadbreak Elbow is equipped with a test point for diagnostic purposes.
What type of lug is included with this deadbreak elbow?
This deadbreak elbow comes with an aluminum compression lug.
What is the voltage rating of the ABB 756LR-R0440?
The ABB 756LR-R0440 is rated for 35kV.
How to Install 756LR Deadbreak Elbow Connectors
This guide provides step-by-step instructions for the safe and proper installation of 756LR Deadbreak Elbow Connectors, designed for fully shielded, submersible cable connections to high voltage apparatus on 35kV class systems.
Estimated time: 1h 30m
Tools needed:
Crimping tool, Wire brush (for aluminum conductors), Hotstick, Suitable voltage sensing device, Wire strippers
Supplies needed:
756LR Elbow connector, Cable Adapter, Compression Lug, Insulating Plug (if applicable), Lubricant, Threaded Stud (if not on mating part), Grounding wire (min. No. 14 AWG Copper), Suitable grounding connector, Silicone lubricant (for test point cap)
- Prepare for Installation and Safety Checks
De-energize all apparatus in the work area. Inspect all parts for damage, proper rating, and compatibility with mating parts and cable. Ensure all required tools and supplies are at hand, and maintain cleanliness throughout the procedure.
- Position and Prepare Cable
Position the cable in its final assembled position with enough slack for elbow removal. Cut the cable 1-3/4” (45mm) from the centerline of the mating product. Clean the outer jacket of the cable for a distance of 24” (610mm). Prepare the cable according to its specific type (e.g., UNISHIELD, JACKETED, NON-JACKETED) by removing the outer jacket and preparing the insulation and semi-con shield to the specified dimensions.
- Install Cable Adapter and Prepare Conductor
Bevel the end of the cable insulation at a 45-degree angle, approximately 1/4” (6mm) back. Thoroughly clean and lubricate the cable insulation, working toward the semi-con shield. Install the cable adapter, small end first, until it is flush with the edge of the tape marker. Remove the protruding cable insulation by cutting it even with the end of the cable adapter, ensuring the exposed conductor length is between 4-3/8” to 4-3/4” (111mm-121mm).
- Crimp Compression Lug
For copper conductors, fully insert the conductor into the compression lug. For aluminum conductors, wire brush the conductor and immediately fully insert it. Measure the "Check Dimension" (must be less than 7” (178mm)) before crimping. Crimp the compression lug following its supplied instructions. Wipe all excess inhibitor from the lug and cable adapter. Verify the distance from the end of the lug to the cable adapter is between 6-7/8” to 7-5/8” (175mm-194mm).
- Install Elbow and Prepare Mating Parts
Lubricate the cable adapter and the inside of the elbow's cable entrance. Install the elbow onto the cable adapter until it cannot advance further, ensuring the cable adapter remains flush with the tape marker. Remove the tape marker. DANGER: DO NOT CONNECT OR DISCONNECT MATING PRODUCTS WHILE ENERGIZED. DO NOT ENERGIZE WHILE DISCONNECTED. Remove protective caps from the elbow and the mating part. Hand tighten the threaded stud (if needed) into the mating part. Clean and lubricate both the elbow and the mating part.
- Connect Elbow to Mating Parts
Push the elbow onto the first mating part, aligning the compression lug hole with the stud. If connecting a second mating part to the opposite end of the elbow, clean and lubricate it, then insert it into the elbow, engage threads, hand tighten, and torque according to its instructions.
- Install Insulating Plug and Ground Cable Shield
If an insulating plug is used, clean and lubricate the inner surface of the voltage detection cap and place it on the elbow, pushing until it snaps into place. Insert one end of a grounding wire (min. No. 14 AWG Copper) through the grounding eye and twist to form a loop. Connect this wire to ground using a suitable connector. Ground the cable shield according to instructions or an alternate method. Waterproof the cable jacket to prevent moisture.
- Perform Voltage Test (Optional but Recommended)
CAUTION: For 600amp L-Kits, tighten components to specified torque. To test for voltage, remove the test point cap with a hotstick, peeling it off at an angle. WARNING: The voltage test point is a capacitance device; do not use conventional voltage measuring equipment. Use a suitable sensing device designed for capacitive test points. Treat the elbow as energized until a "no voltage" indication is confirmed by other means. After testing, clean and lubricate the inside of the cap with silicone lubricant and replace it.
