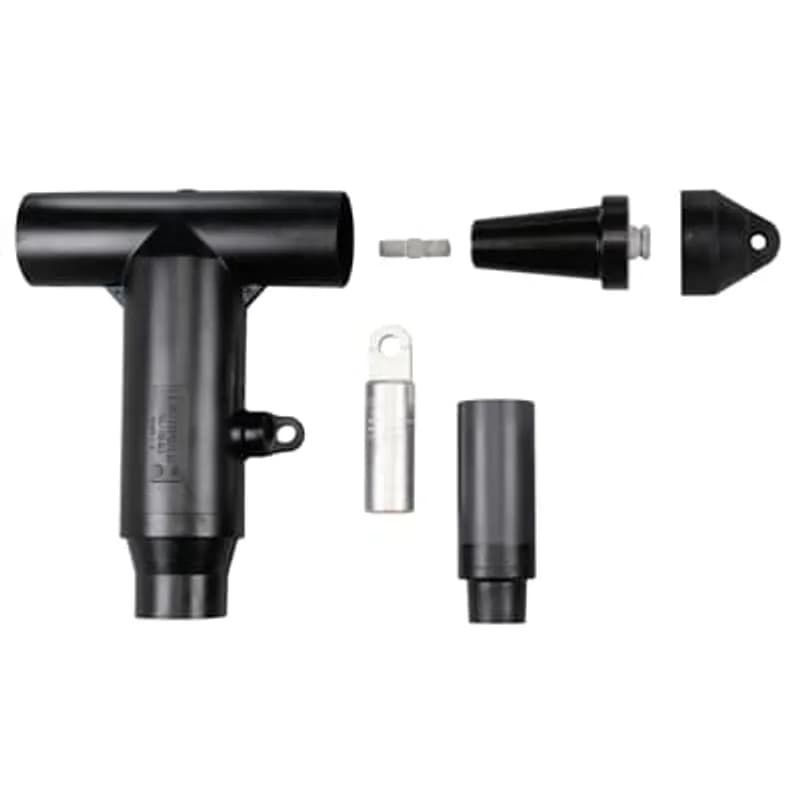

ABB Installation Products 756LR-P0380 35kV 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and…
UPC: 783786350728
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 35kV voltage class with 600A continuous current rating
- Accommodates cable insulation diameters from 1.725" to 1.935"
- Supports compressed stranded 700-750 kcmil or compacted solid 900 kcmil conductors
- Fully shielded, dead-front submersible design per ANSI/IEEE Standard 386
- Includes test point for safe system diagnostics without de-energization
Specifications
Amperage Rating | 600 A |
Application | 35 kv, 600 Amp |
Color | Black |
Conductor Range | 700 to 750 kcmil , 900 kcmil |
Connection | Compression |
Connection Type | Compression Lug |
Connection Type | Compression |
Environmental Conditions | Fully Submersible |
Insulation | True |
Material | Aluminum |
Material | Housing - EPDM-Rubber |
Series | 600 Series |
Size | Cable Insulation Diameter 1.725 inch to 1.935 inch |
Special Features | 35kV, 600 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Deadbreak Elbow Connector with Test Point |
Voltage Rating | 35kV |
Voltage Rating | 35 kV |
Width | 12.28 in |
Width | 311.912 mm |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 8.9000 L |
Package Weight (Metric) | 4.0370 kg |
M655YSR-N0380-S
600 Amp Separable Cable Joints, Straight Receptacle, 35KV, Dead Break, Splice, Cable Insulation Diameter 1.515 inch to 1.780 inch. Aluminum Compression Lug. Conductor Size kcmil Compressed Stranded 700/750, Solid 900. 200ECS Jacket Seal Included.
K465LR-LM-2360
15/25kV, 630 Amps, Deadbreak Elbow without Test Point. Cable Insulation Diameter 1.280 inch to 1.430 inch (29.972-37.211mm). Copper Compression Lug, Conductor Size 650 Stranded/Compressed or 750/800 Solid/Compact. Includes Elbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Tube Lubricant, Cable Adapter, Installation Instructions and Crimp Chart. Exceeds ANSI/IEEE Standard 386 Latest Revision.K465LR-K-2310
15/25kV, 630 Amps, Deadbreak Elbow without Test Point. Cable Insulation Diameter 1.090 inch to 1.310 inch (27.686-33.274mm). Copper Compression Lug, Conductor Size 400 Stranded/Compressed or 450 Solid/Compact or 240 mm2. Includes Elbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Tube Lubricant, Cable Adapter, Installation Instructions and Crimp Chart. Exceeds ANSI/IEEE Standard 386 Latest Revision.K465LR-F-0220
15/25kV, 630 Amps, Deadbreak Elbow without Test Point. Cable Insulation Diameter 0.640-0.820 inches (16.256-20.828mm). Aluminum Compression Lug, Conductor Size #2 Stranded/Compressed or #1 Solid/Compact or 35 mm2. Includes Elbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Tube Lubricant, Cable Adapter, Installation Instructions and Crimp Chart. Exceeds ANSI/IEEE Standard 386 Latest Revision.
776LR-Q5440-S
900 Amp, 35kV, 600 Series Elbow with Test Point, with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Cold-Shrinkable Jacket Seal Included. Cable Insulation Diameter 1.900 inch to 2.120 inch. Bi-Metal Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 1250. Cold-Shrinkable Jacket Seal Included.K465LR-H0310
15/25kV, 630 Amps, Deadbreak Elbow without Test Point. Cable Insulation Diameter 0.850-1.050 inches (21.590-26.670mm). Aluminum Compression Lug, Conductor Size 400 Stranded/Compressed or 450 Solid/Compact or 240 mm2. Includes Elbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Tube Lubricant, Cable Adapter, Installation Instructions and Crimp Chart. Exceeds ANSI/IEEE Standard 386 Latest Revision.
775LR-J2250
900 Amp, 35KV, DeadBreak, Direct Test Elbow with insulated Plug, Cap, Stud, Lug and Cable Adapter, Cable Insulation Diameter 0.980 inch to 1.180 inch. Copper Compression Lug. Conductor Size AWG Compressed Stranded 2/0 /Solid 3/0 /mmSquared 67.43.Frequently Asked Questions
What is the primary application of the 756LR?
The 756LR provides fully shielded, dead-front submersible cable connections to high-voltage apparatus.
What is the continuous current rating?
The continuous current rating for the 756LR is 600 Amps.
Is the 756LR submersible?
Yes, the 756LR has a fully shielded, fully submersible molded rubber housing.
What materials are used in the 756LR construction?
The 756LR features 100% peroxide-cured construction, including insulation and conductive EPDM materials.
What standard does the 756LR meet?
The 756LR meets ANSI/IEEE Standard 386, Latest Revision.
What is the impulse withstand rating (BIL)?
The impulse withstand (BIL) rating is 150kV.
What is the maximum phase-to-ground operating voltage?
The maximum phase-to-ground operating voltage for the 35kV class is 21.1kV.
What insulation diameters does the 756LR support?
The 756LR supports insulation diameters from 0.760 inches to 2.120 inches.
What is the maximum voltage rating for 756LR?
The 756LR can be used through 35kV.
What conductor types are compatible with 756LR?
The 756LR is compatible with aluminum and copper conductors ranging from #2 AWG to 1250 kcmil.
How to Install 756/776LR Deadbreak Elbow Connectors
This guide provides step-by-step instructions for the safe installation and connection of 756LR and 776LR Deadbreak Elbow Connectors on 35kV class systems. Always ensure all apparatus are de-energized during installation or removal to prevent serious or fatal injury.
Estimated time: 2h
Tools needed:
Wire strippers, Crimp tool, Wire brush, Hotstick, Suitable voltage sensing device, Torque wrench
Supplies needed:
756/776LR Elbow Connector Kit (includes Elbow, Cable Adapter, Compression Lug, Insulating Plug, Crimp connector, Lubricant, Stud Prepack), No. 14 AWG Copper wire (or equivalent), Suitable ground connector, HV insulated cap(s) or connector(s), Waterproofing material
- De-energize and Inspect Apparatus
DANGER: Ensure all apparatus are de-energized before beginning installation or removal of parts. Do not touch or move energized products. Inspect all parts for damage, proper rating, and compatibility with mating parts. Remove any protective shipping covers and replace with appropriate HV insulated caps or connectors before submerging or energizing the circuit.
- Position and Cut Cable
Position the cable in its final assembled location, ensuring enough slack to allow for elbow removal. Cut the cable 1-3/4 inches (45mm) from the centerline of the mating product.
- Clean Cable Jacket
Clean the outer jacket of the cable for a distance of 24 inches (610mm) from the cut end.
- Prepare Cable
Prepare the cable according to its type (e.g., non-jacketed concentric, jacketed shield, flat metallic tape, fabric tape, or longitudinally corrugated shield). Remove the outer jacket and prepare the cable insulation, semi-con shield, and neutral/shield wires to the specified dimensions (10-3/8 inches to 13-5/8 inches from the cut end). Refer to specific instructions for grounding devices or cable shield adapters if used.
- Install Cable Adapter
Bevel the end of the cable insulation at a 45-degree angle, approximately 1/4 inch (6mm) back. Thoroughly clean and lubricate the cable insulation, working towards the semi-con shield. Install the cable adapter, small end first, until it is flush with the edge of the tape marker.
- Prepare Conductor
Remove the protruding cable insulation by cutting it even with the end of the cable adapter. Do not cut or nick the cable adapter or the conductor. The exposed conductor length should be between 4-3/8 inches to 4-3/4 inches (111mm-121mm). If not, redo the assembly.
- Crimp Compression Lug
For copper conductors, fully insert the conductor into the compression lug. For aluminum conductors, wire brush the conductor and immediately fully insert it into the compression lug. Measure the 'Check Dimension' before crimping (should be less than 7 inches / 178mm). Crimp the compression lug following the instructions supplied with the lug. Wipe all excess inhibitor from the lug and cable adapter. The distance from the end of the lug to the cable adapter after crimping should be 6-7/8 inches to 7-5/8 inches (175mm-194mm).
- Install Elbow
Lubricate the cable adapter and the inside of the elbow cable entrance. Install the elbow onto the cable adapter until it cannot advance further. Ensure the cable adapter remains flush with the tape marker. If not, reposition the cable adapter. Remove the tape marker.
- Prepare Mating Products
DANGER: Do not connect or disconnect mating products while energized. Do not energize while disconnected. Remove protective caps from the elbow and the mating part. Hand tighten the threaded stud supplied with the elbow into the mating part if it is not already equipped with a stud. Clean and lubricate both the elbow and the mating part with the supplied lubricant, keeping surfaces clean.
- Connect Elbow to Mating Part
Push the elbow onto the mating part, aligning the hole in the compression lug with the stud on the mating part.
- Connect Opposite End of Elbow
Clean and lubricate the mating part for the opposite end of the elbow. Insert this mating part into the elbow, engage the threads, and hand tighten. Torque the mating part according to its specific instructions.
- Install Insulating Plug (if applicable)
If an insulating plug is used as a mating part, clean and lubricate the inner surface of the voltage detection cap. Place the cap on the elbow and push down firmly until it snaps into place. CAUTION: The insulating plug provides a means for detecting system voltage; follow voltage test directions carefully.
- Ground the Cable Shield
Insert one end of a No. 14 AWG Copper wire (or equivalent ampacity) through the grounding eye and twist to form a small loop, taking care not to damage the eye. Connect this wire to ground using a suitable connector. The cable shield must be grounded according to instructions supplied with any grounding device, or via an alternate method if no device is used. It is also recommended to waterproof the cable jacket at this point to prevent moisture ingress.
- Perform Voltage Test
CAUTION: The voltage test point is a capacitance device, not directly connected to the conductor. Do not use conventional voltage measuring equipment. Remove the test point cap with a hotstick, peeling it off at an angle. Test with a suitable sensing device designed for capacitive test points to determine if the cable is energized. Contamination or incorrect equipment can give false readings. Treat the elbow as energized until a 'no voltage' indication is confirmed by other means. After testing, clean and lubricate the cap's inside surface with silicone lubricant and replace it on the test point.
